7318 BECBP
BWK
BWK-7318-BECBP

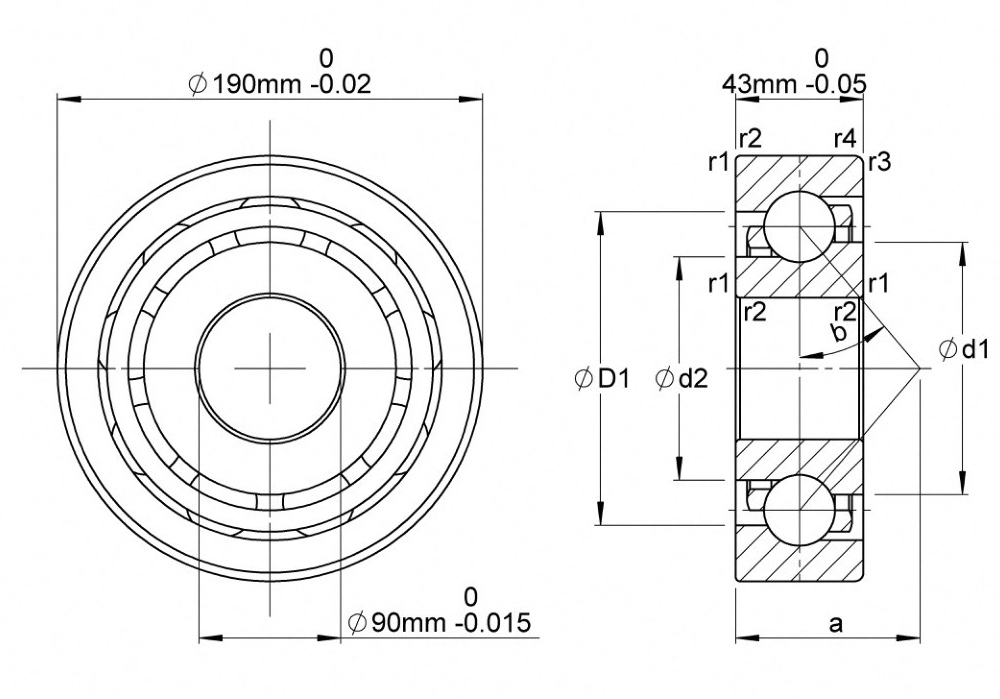

7318 BECBP is a single row angular contact ball bearing with a 90 mm bore, 190 mm outside diameter and 43 mm width. Supports combined radial and axial loading. Axial load acts in one direction, so paired arrangements are used when support is needed in both directions.
| Model | 7318 BECBP |
| Product Type | Single Row Angular Contact Ball Bearing |
| Structure | Single row with a 40-degree contact angle |
| System of Measurement | Metric |
| For Load Direction | Angular Contact |
| Seal Type | Open |
| Bore Dia | 90 mm |
| Outer Dia | 190 mm |
| Width | 43 mm |
| Contact Angle | 40 ° |
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Nylon |
| Dynamic Radial Load | 166.14 kN |
| Static Radial Load | 146.12 kN |
| Max Speed (X1000 rpm) | 4.5 |
| Temperature Range | -30° to 110 °C |
| Lubrication | Lubricated |
| Tolerance Class | P6 (ABEC-3) |
| Weight | 5.2 kg |
Pumps, gearboxes and machine-tool shaft arrangements.
Select the pairing arrangement, preload or clearance and shaft fits together. A single bearing cannot locate the shaft axially in both directions.
BWK provides reliable bearing solutions for industrial and agricultural applications, supported by stable supply, strict quality control and flexible OEM & ODM services.
