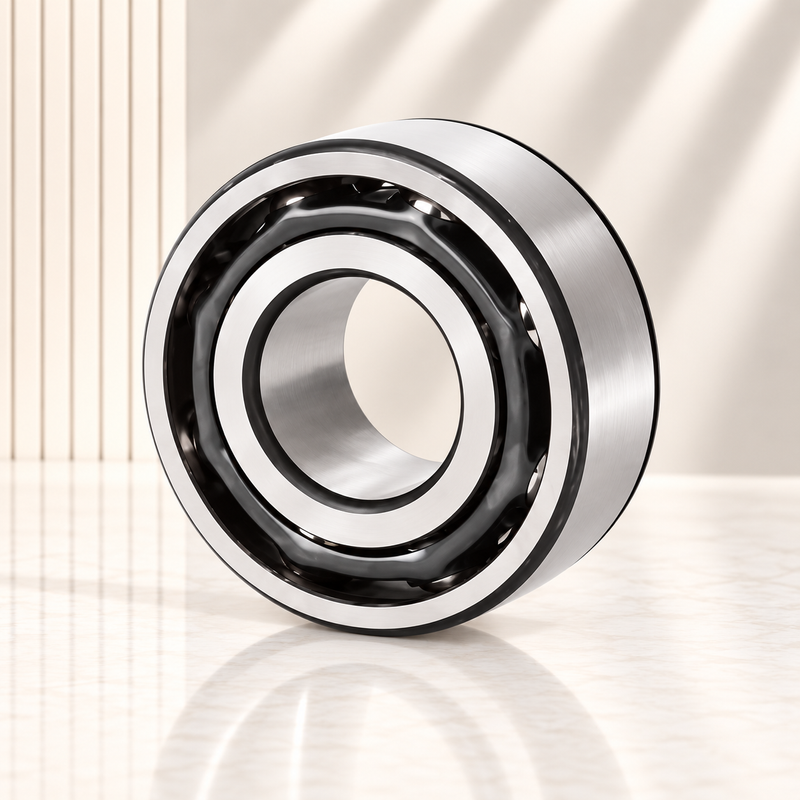

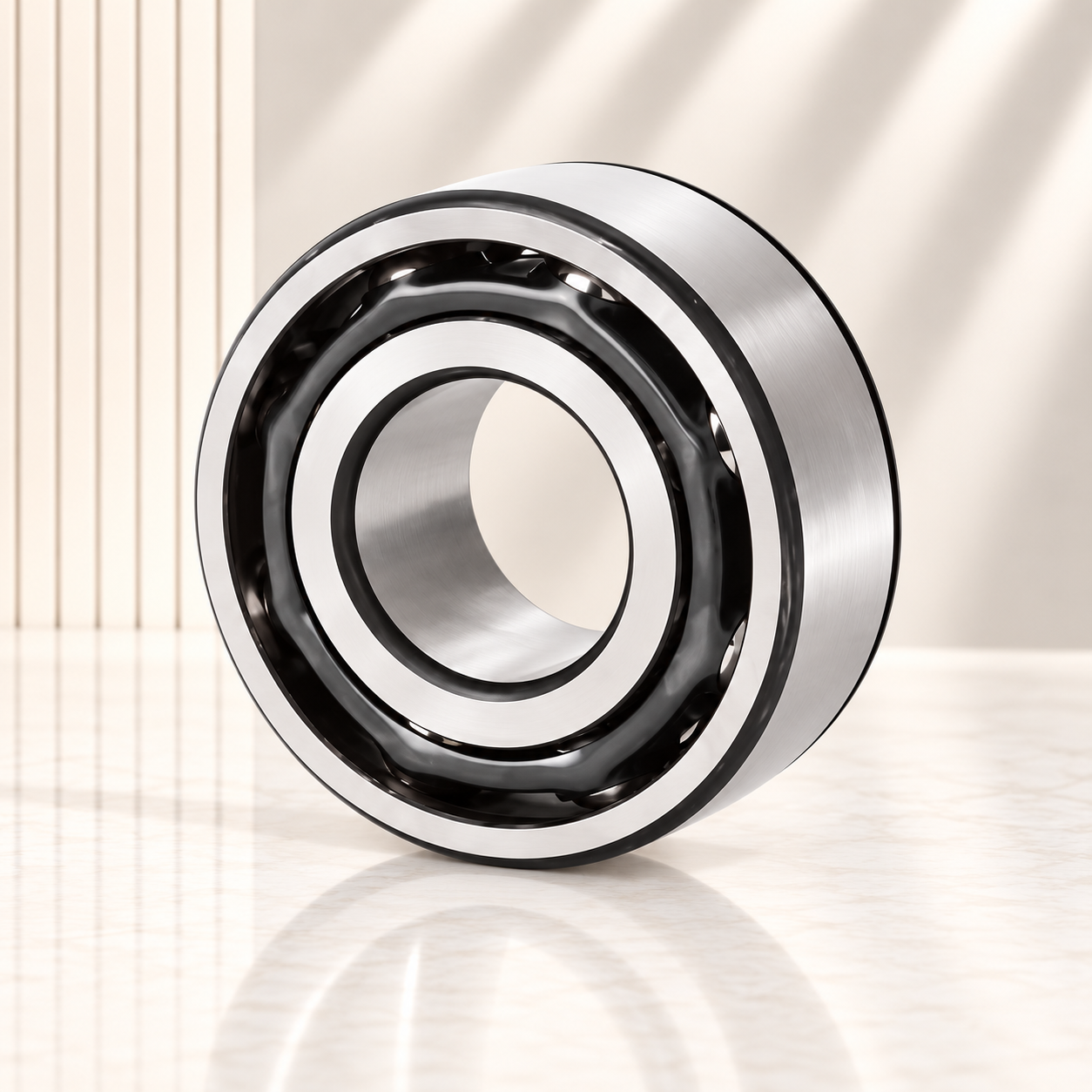

3308 A Double Row Angular Contact Ball Bearing

3308 A is a double row angular contact ball bearing for 40 mm bore, 90 mm outer diameter and 36.5 mm width. The two ball rows support combined radial and axial loads and provide axial location in both directions.
Availability:
Quantity:
Inquire Add to Basket

  • 3308 A

  • BWK

  • BWK-3308-A

DESCRIPTION

Product Overview

3308 A is a double row angular contact ball bearing for 40 mm bore, 90 mm outer diameter and 36.5 mm width. The two ball rows support combined radial and axial loads and provide axial location in both directions.

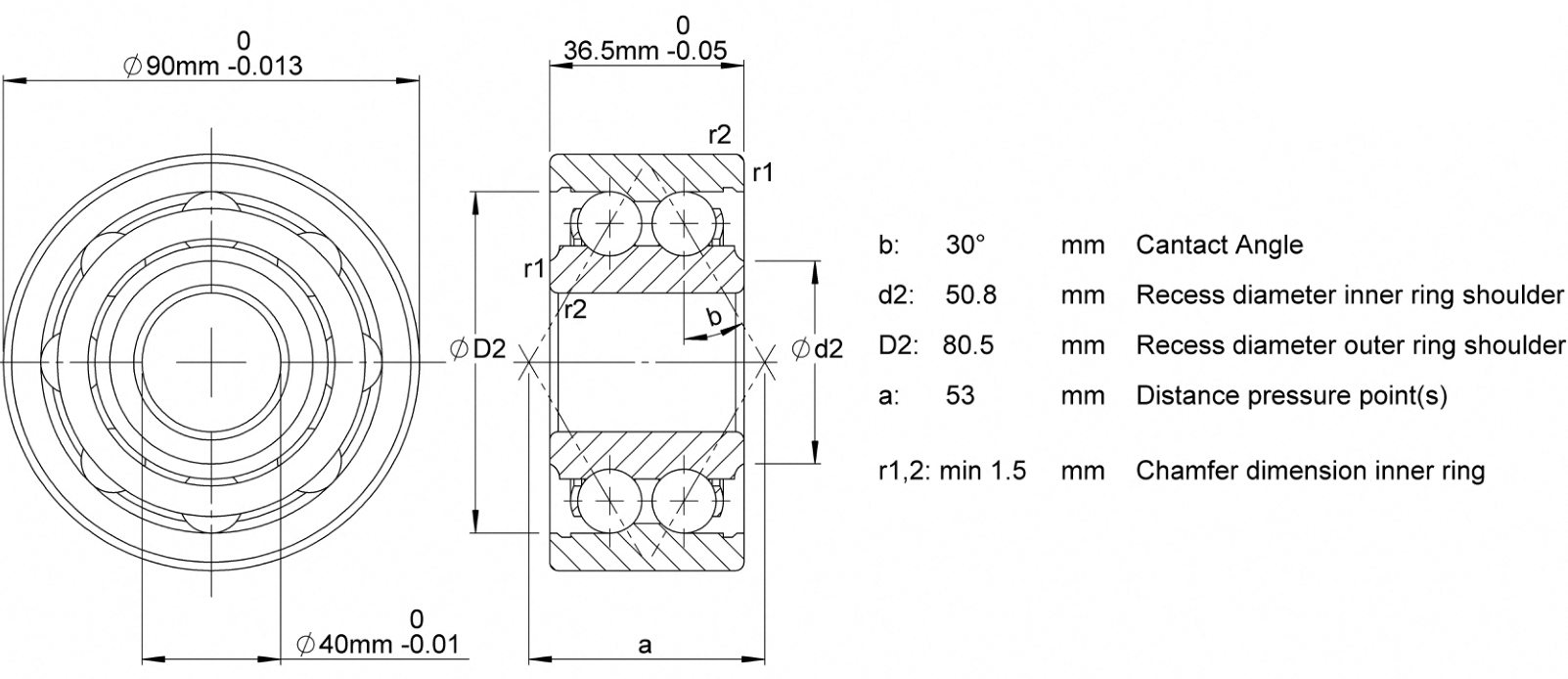

3308-a

Technical Specifications

Model 3308 A
Product Type Double Row Angular Contact Ball Bearing
Structure Double row angular contact ball bearing
For Load Direction Angular Contact
Seal Type Open
Bore Dia 40 mm
Outer Dia 90 mm
Width 36.5 mm
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 65.56 kN
Static Radial Load 48.04 kN
Temperature Range -30° to 110 °C
Lubrication Lubricated
Weight 0.93 kg
Limiting Speed 7500 rpm

Applications

Pumps, gearboxes and machinery requiring combined-load support.

Selection and Installation

Check bearing arrangement, shaft and housing fits, lubrication and operating speed before installation.
