30315
BWK
BWK-30315

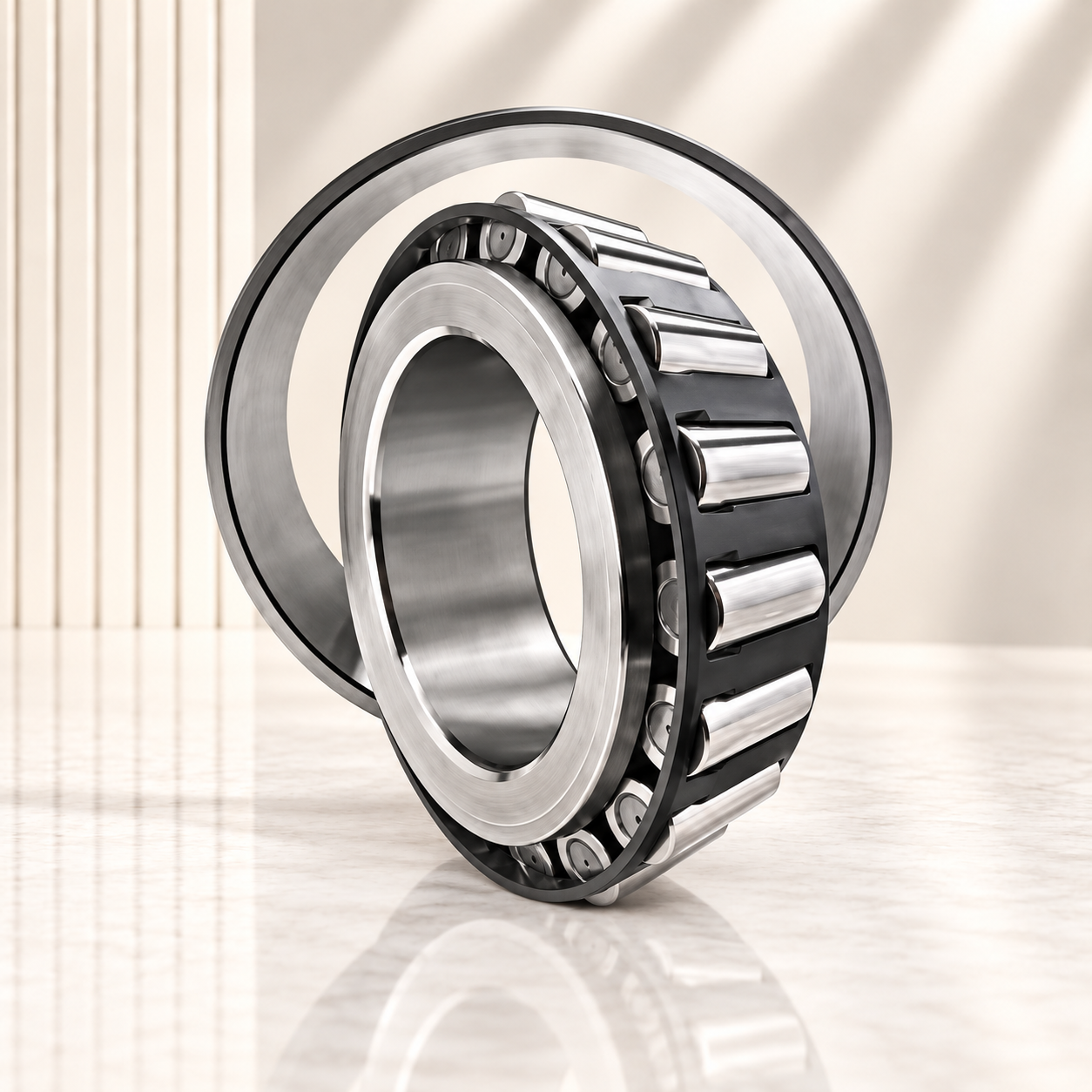

30315 is a single row tapered roller bearing with a 75 mm bore, 160 mm outside diameter and 40 mm width. Carries combined radial and axial loads. The cone and cup can be installed separately; paired bearings allow axial support in both directions.
| Model | 30315 |
| Product Type | Single Row Tapered Roller Bearing |
| Structure | Single row tapered rollers with separable cone and cup |
| Cone Part Number | X30315M |
| Cup Part Number | Y30315M |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered |
| Type | Bearing |
| Seal Type | Open |
| Cups Type | Standard |
| For Load Direction | Combined |
| Construction | Single Row |
| Series | 30315M |
| ABEC Rating | ABEC-1 |

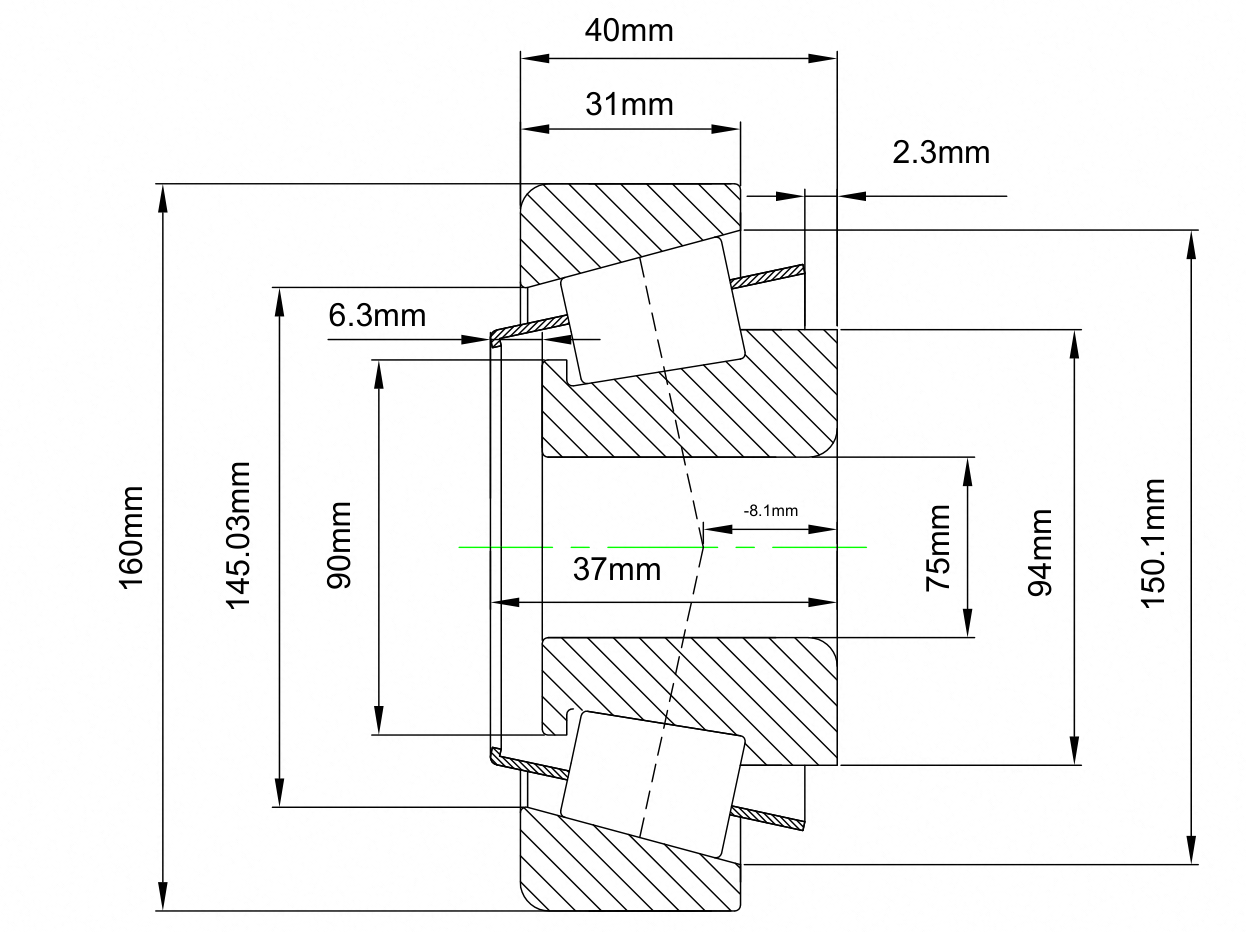

| Bore Dia | 75 mm |
| Bore Dia Tolerance | -0.015mm to 0 |
| Outer Dia | 160 mm |
| Outer Dia Tolerance | -0.025mm to 0 |
| Width | 40 mm |
| Width Tolerance | +0.2mm to 0 |
| Effective Center Location | -8.1 mm |
| Cup Width | 31 mm |
| Cup Width Tolerance | -0.2mm to 0 |
| Cup Backface ToClear Radius | 2.54 mm |
| Cup Frontface Backing Diameter | 150.1 mm |
| Cup Backface Backing Diameter | 145.03 mm |
| Cone Width | 37 mm |
| Cone Width Tolerance | -0.15mm to 0 |
| Cone Backface ToClear Radius | 3.05 mm |
| Cone Frontface Backing Diameter | 90 mm |
| Cone Backface Backing Diameter | 94 mm |
| Cage Cone Frontface Clearance | 6.3 mm |
| Cage Cone Backface Clearance | 2.3 mm |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 79650 lbf |
| Static Radial Load | 76050 lbf |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| Dynamic Radial Rating(90 Million Revolutions)(C90) | 20655 lbf |
| Dynamic Thrust Rating(90 Million Revolutions)(Ca90) | 12195 lbf |
| Temperature Range | -30° to 110 °C |
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 7.94 lb |
Industrial gearboxes, wheel hubs and heavily loaded shaft supports.
Confirm the cone, cup and total assembled width. Set the operating clearance or preload for the paired arrangement and ensure full seating against the shoulders.
