32016X Single Row Tapered Roller Bearing

32016X metric single-row tapered roller bearing with 80 mm bore, 125 mm OD, 29 mm width. The tapered raceways and rollers accommodate combined radial and thrust loading. Correct internal setting and an opposing bearing arrangement are important for stable operation. Review shaft fit, loads and working conditions before replacement.

Availability:

Quantity:



Inquire Add to Basket

Model:
32016X
Brand:
BWK
Code:
BWK-32016X

DESCRIPTION

Product Overview

32016X is a single row tapered roller bearing. The tapered raceways and rollers accommodate combined radial and thrust loading. Correct internal setting and an opposing bearing arrangement are important for stable operation.

Key Features

Designed for combined radial and axial loads
Separable cup-and-cone construction supports mounting
Tapered raceways permit controlled bearing setting

32016x

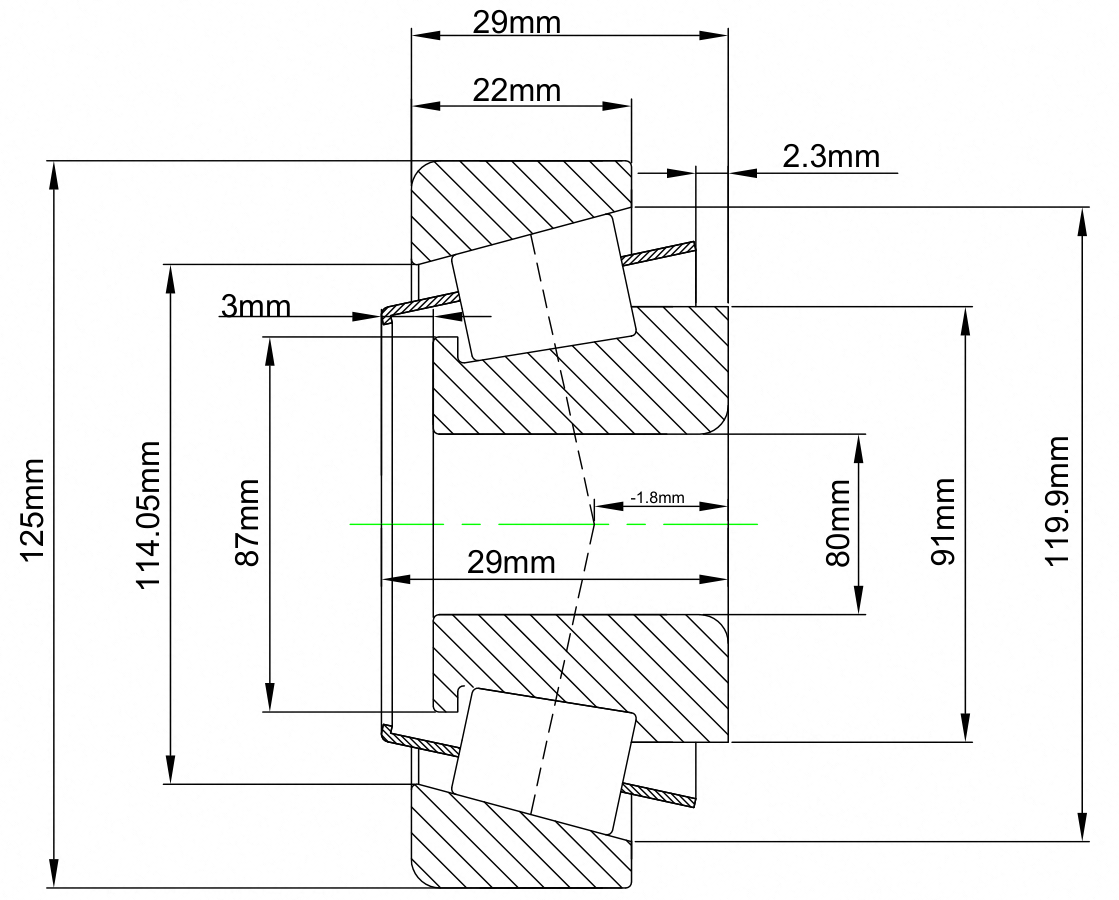

Technical Specifications

Model	32016X
Product Type	Single Row Tapered Roller Bearing
Bore Diameter	80 mm
Outside Diameter	125 mm
Width	29 mm
Construction	Single row tapered roller
Seal Type	Open
Arrangement	Cup and cone
Load Direction	Combined radial and axial
Lubrication	Grease or oil, as specified

Typical Applications

Vehicle and trailer hubs
Gear reducers and industrial shafts
Agricultural machinery and material handling

Selection Guidance

Select the matching cup/cone and mounting arrangement; verify preload or endplay, applied axial direction and lubrication before installation.

32016X metric single-row tapered roller bearing 80 mm bore Industrial Bearing replacement bearing BWK
