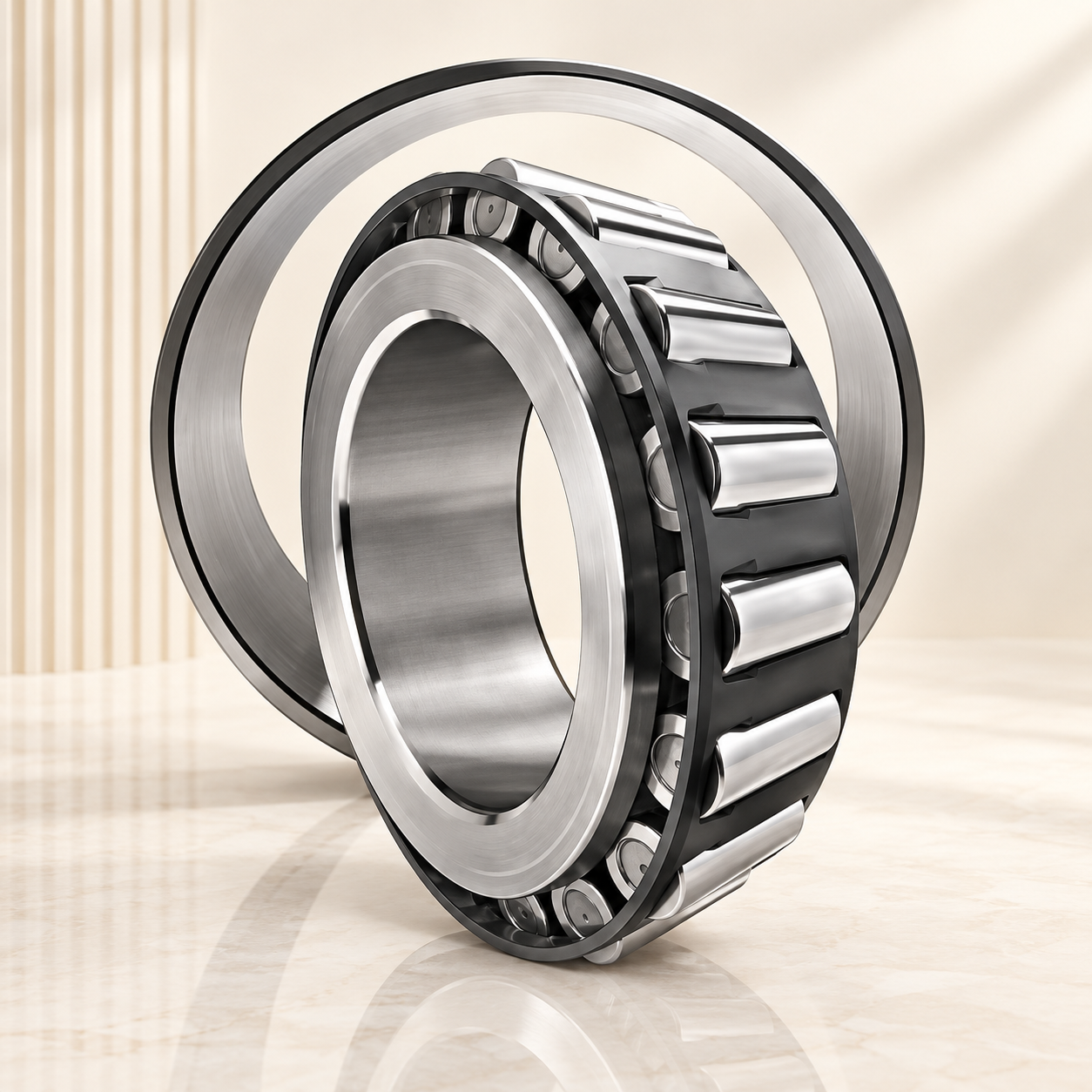

32015X Single Row Tapered Roller Bearing

32015X metric single-row tapered roller bearing with 75 mm bore, 115 mm OD, 25 mm width. The tapered raceways and rollers accommodate combined radial and thrust loading. Correct internal setting and an opposing bearing arrangement are important for stable operation. Review shaft fit, loads and working conditions before replacement.
Availability:
Quantity:
Inquire Add to Basket

  • 32015X

  • BWK

  • BWK-32015X

DESCRIPTION

Product Overview

32015X is a single row tapered roller bearing. The tapered raceways and rollers accommodate combined radial and thrust loading. Correct internal setting and an opposing bearing arrangement are important for stable operation.

Key Features

  • Designed for combined radial and axial loads

  • Separable cup-and-cone construction supports mounting

  • Tapered raceways permit controlled bearing setting

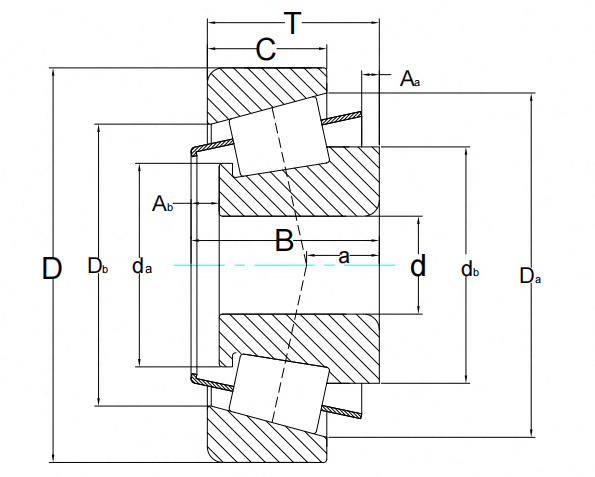

32015x

Technical Specifications

Model 32015X
Product Type Single Row Tapered Roller Bearing
Bore Diameter 75 mm
Outside Diameter 115 mm
Width 25 mm
Construction Single row tapered roller
Seal Type Open
Arrangement Cup and cone
Load Direction Combined radial and axial
Lubrication Grease or oil, as specified

Typical Applications

  • Vehicle and trailer hubs

  • Gear reducers and industrial shafts

  • Agricultural machinery and material handling

Selection Guidance

Select the matching cup/cone and mounting arrangement; verify preload or endplay, applied axial direction and lubrication before installation.
