32217 Single Row Tapered Roller Bearing

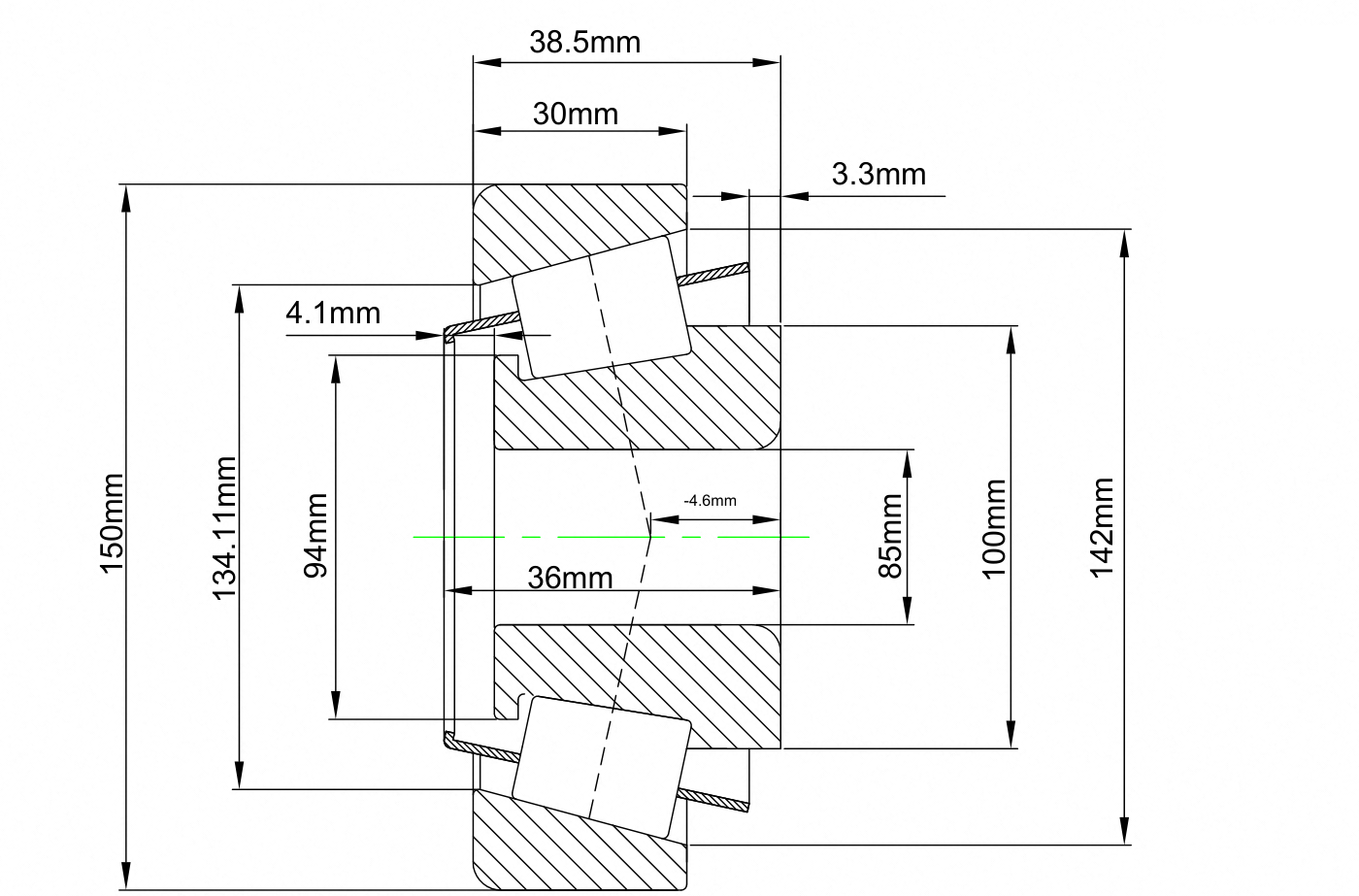

32217 single-row tapered roller bearing with 85 mm bore, 150 mm OD, 38.5 mm width. Handles combined radial and axial loads. Separable design supports convenient mounting and adjustment. Tapered raceways provide rigid shaft guidance. Review shaft fit, loads, lubrication and working conditions before replacement.
Availability:
Quantity:
Inquire Add to Basket

  • 32217

  • BWK

  • BWK-32217

DESCRIPTION

Product Overview

32217 is a single-row tapered roller bearing. Handles combined radial and axial loads. Separable design supports convenient mounting and adjustment. Tapered raceways provide rigid shaft guidance. It is intended for industrial replacement and OEM applications where the specified envelope dimensions and design match the operating requirement.

Key Features

  • Handles combined radial and axial loads

  • Separable design supports convenient mounting and adjustment

  • Tapered raceways provide rigid shaft guidance

32217

Technical Specifications

Model 32217
Product Type Single Row Tapered Roller Bearing
Bore Diameter 85 mm
Outside Diameter 150 mm
Width 38.5 mm
Design Single row; separable cone and cup
Seal Type Open
Ring / Rolling Element Material Chrome steel
Cage Pressed steel
Lubrication Grease or oil

Typical Applications

  • Automotive and trailer hubs

  • Industrial gearboxes

  • Construction and agricultural machinery

Selection Guidance

Set the correct axial clearance or preload and verify the matched cup-and-cone arrangement before installation.
