32318
BWK
BWK-32318

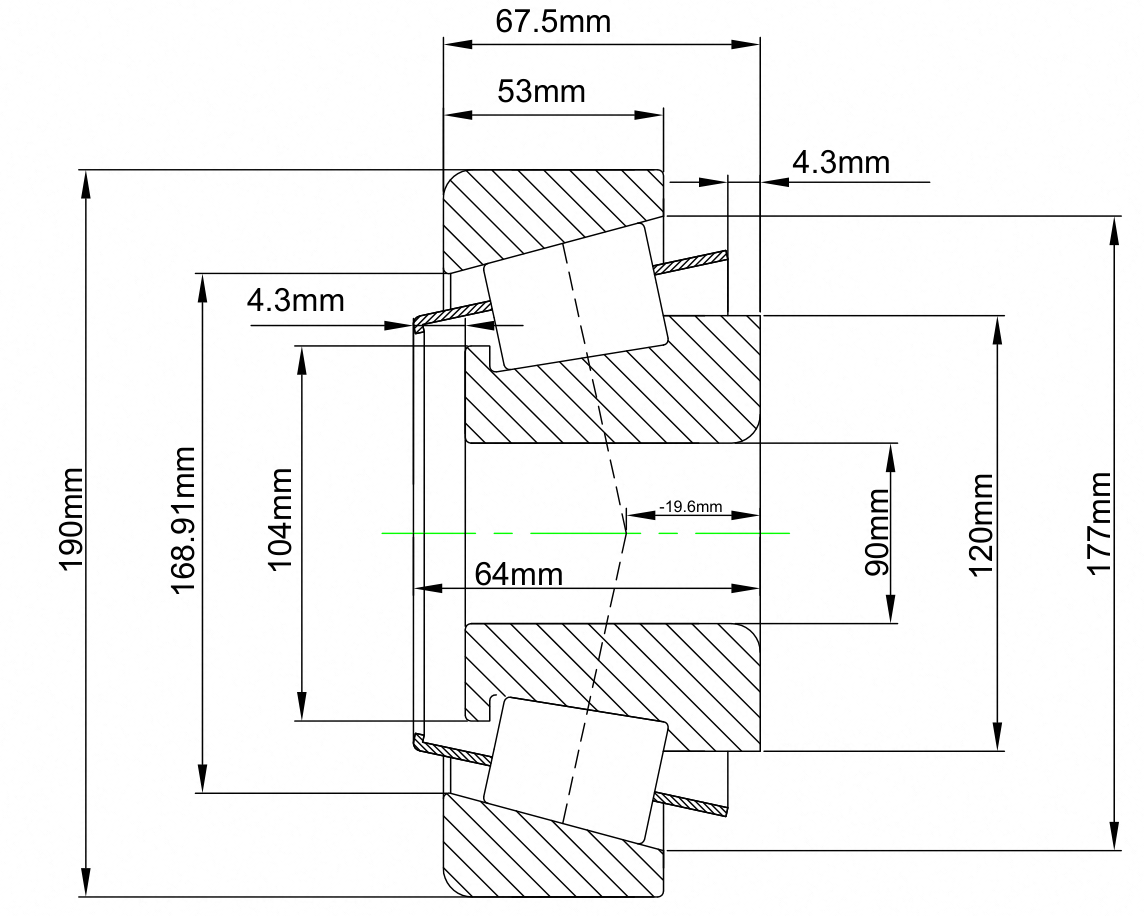

32318 is a tapered roller bearing with 90 mm bore, 190 mm outside diameter and 67.5 mm width. Tapered rollers support combined radial and axial loads. The separable cup and cone facilitate mounting; a single row carries axial load in one direction.
| Model | 32318 |
| Product Type | Tapered Roller Bearing |
| Structure | Single-row tapered roller bearing |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Tapered |
| Type | Bearing |
| Seal Type | Open |
| Cups Type | Standard |
| For Load Direction | Combined |
| Construction | Single Row |
| Series | 32318M |
| ABEC Rating | ABEC-1 |
| Bore Dia | 90 mm |
| Bore Dia Tolerance | -0.02mm to 0 |
| Outer Dia | 190 mm |
| Outer Dia Tolerance | -0.03mm to 0 |
| Width | 67.5 mm |
| Width Tolerance | +0.2mm to -0.2mm |
| Effective Center Location | -19.6 mm |
| Cup Width | 53 mm |
| Cup Width Tolerance | -0.25mm to 0 |
| Cup Backface ToClear Radius | 3.05 mm |
| Cup Frontface Backing Diameter | 177 mm |
| Cup Backface Backing Diameter | 168.91 mm |
| Cone Width | 64 mm |
| Cone Width Tolerance | -0.15mm to 0 |
| Cone Backface ToClear Radius | 4.06 mm |
| Cone Frontface Backing Diameter | 104 mm |
| Cone Backface Backing Diameter | 120 mm |
| Cage Cone Frontface Clearance | 4.3 mm |
| Cage Cone Backface Clearance | 4.3 mm |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 139950 lbf |
| Static Radial Load | 153675 lbf |
| Radial Clearance | Standard (Available in C3/C4/C5) |
| Dynamic Radial Rating(90 Million Revolutions)(C90) | 36225 lbf |
| Dynamic Thrust Rating(90 Million Revolutions)(Ca90) | 21442.5 lbf |
| Temperature Range | -30° to 110 °C |
| Lubrication | Required |
| Weight | 18.74 lb |
Gearboxes, industrial drives and machinery wheel or shaft supports.
Set endplay or preload with the opposing bearing arrangement. Check cup and cone dimensions, backing shoulders, fits and lubrication.
