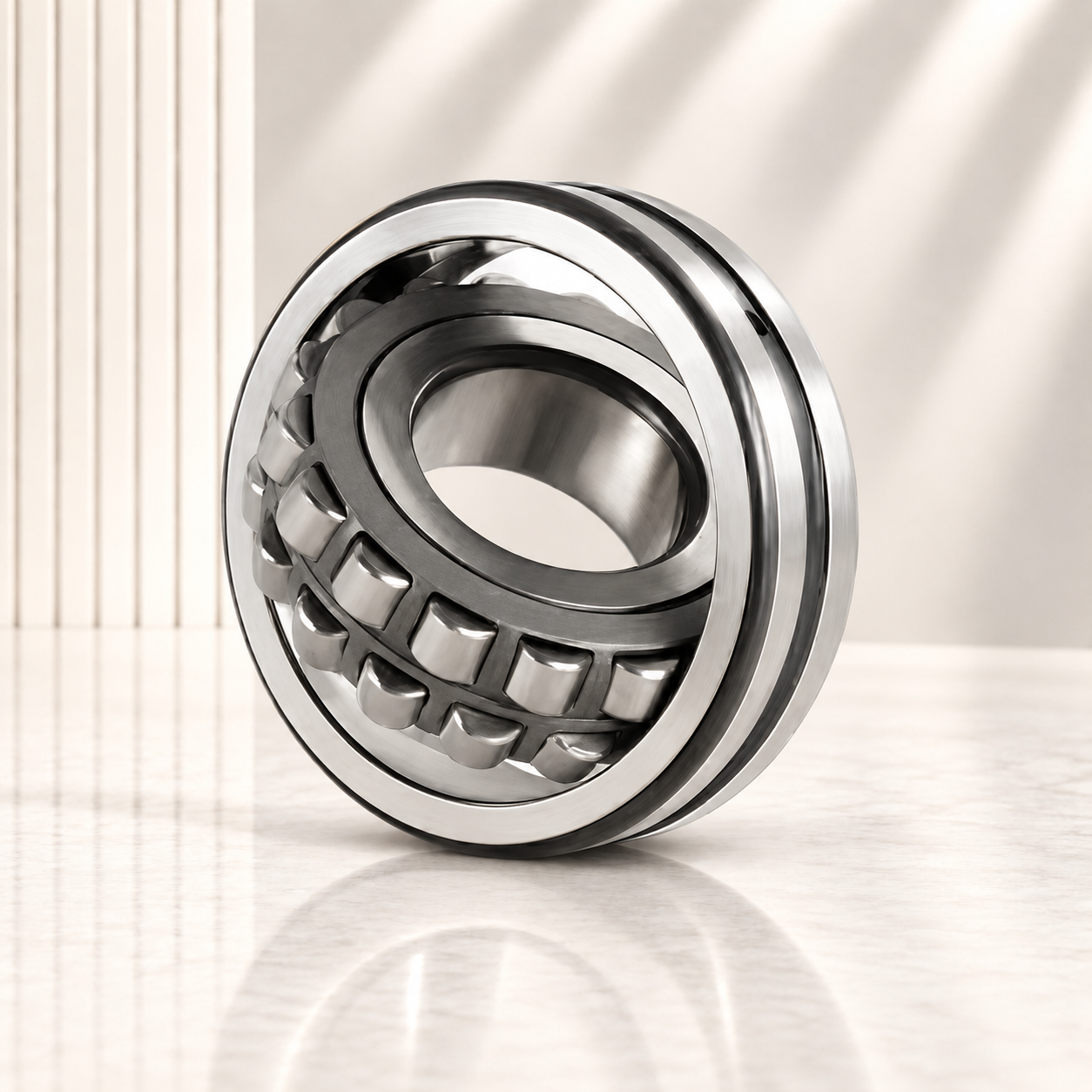

22315 EK Double Row Spherical Roller Bearing

22315 EK double-row spherical roller bearing with 75 mm bore, 160 mm OD, 55 mm width. High radial and axial load capacity. Self-aligning raceway compensates for shaft misalignment. Tapered bore supports adapter or withdrawal sleeve mounting. Review shaft fit, loads, lubrication and working conditions before replacement.
Availability:
Quantity:
Inquire Add to Basket

  • 22315 EK

  • BWK

  • BWK-22315-EK

DESCRIPTION

Product Overview

22315 EK is a double-row spherical roller bearing. High radial and axial load capacity. Self-aligning raceway compensates for shaft misalignment. Tapered bore supports adapter or withdrawal sleeve mounting. It is intended for industrial replacement and OEM applications where the specified envelope dimensions and design match the operating requirement.

Key Features

  • High radial and axial load capacity

  • Self-aligning raceway compensates for shaft misalignment

  • Tapered bore supports adapter or withdrawal sleeve mounting

22315-EK

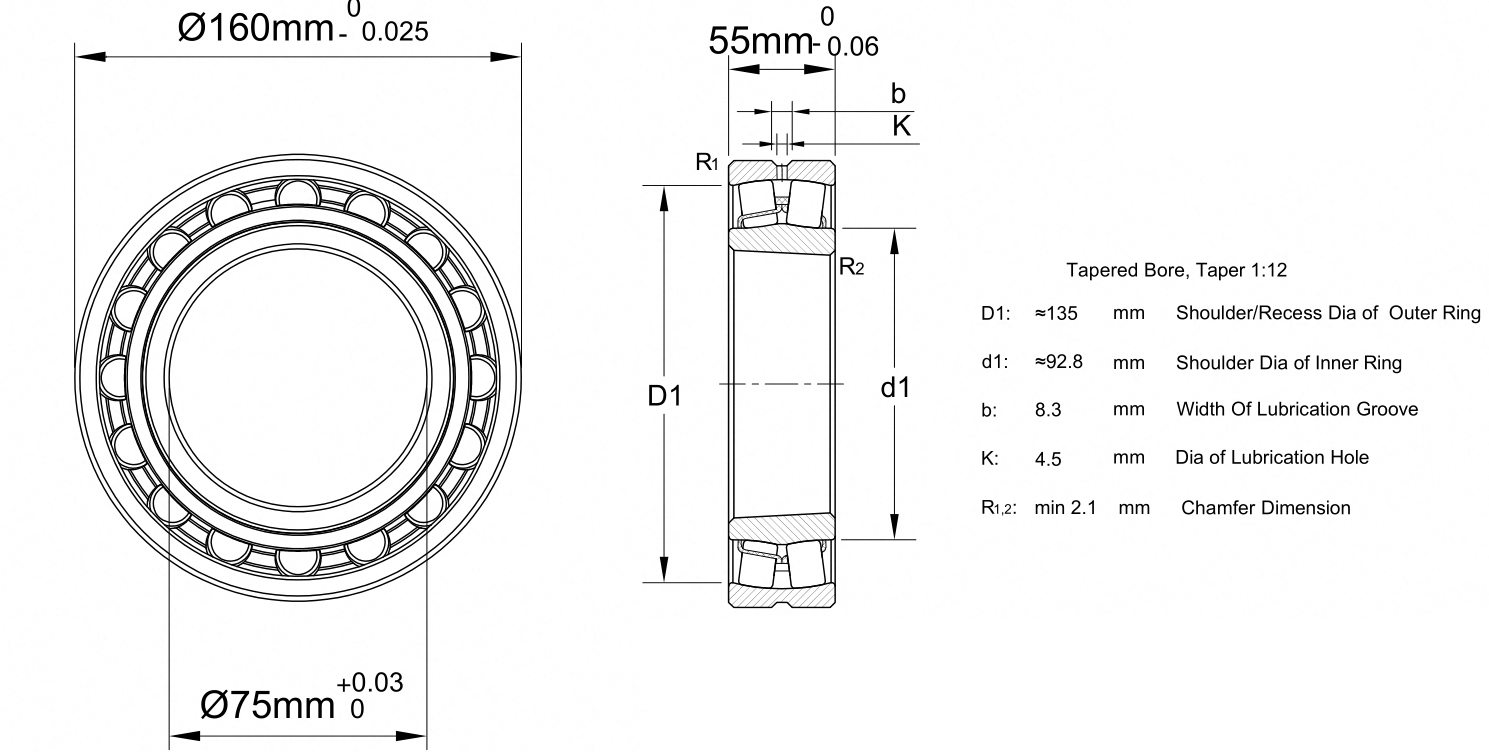

Technical Specifications

Model 22315 EK
Product Type Double Row Spherical Roller Bearing
Bore Diameter 75 mm
Outside Diameter 160 mm
Width 55 mm
Design Double row; tapered bore; annular groove and lubrication holes
Seal Type Open
Ring / Rolling Element Material Chrome steel
Cage Steel or machined cage depending on production configuration
Lubrication Grease or oil

Typical Applications

  • Mining and quarry equipment

  • Heavy-duty conveyors and crushers

  • Industrial gearboxes and fans

Selection Guidance

Confirm the tapered-bore mounting method, operating clearance, lubrication supply and permissible misalignment.
