22317 EK Double Row Spherical Roller Bearing

22317 EK double-row spherical roller bearing with 85 mm bore, 180 mm OD, 60 mm width. High radial and axial load capacity. Self-aligning raceway compensates for shaft misalignment. Tapered bore supports adapter or withdrawal sleeve mounting. Review shaft fit, loads, lubrication and working conditions before replacement.
Availability:
Quantity:
Inquire Add to Basket

  • 22317 EK

  • BWK

  • BWK-22317-EK

DESCRIPTION

Product Overview

22317 EK is a double-row spherical roller bearing. High radial and axial load capacity. Self-aligning raceway compensates for shaft misalignment. Tapered bore supports adapter or withdrawal sleeve mounting. It is intended for industrial replacement and OEM applications where the specified envelope dimensions and design match the operating requirement.

Key Features

  • High radial and axial load capacity

  • Self-aligning raceway compensates for shaft misalignment

  • Tapered bore supports adapter or withdrawal sleeve mounting

22317-EK

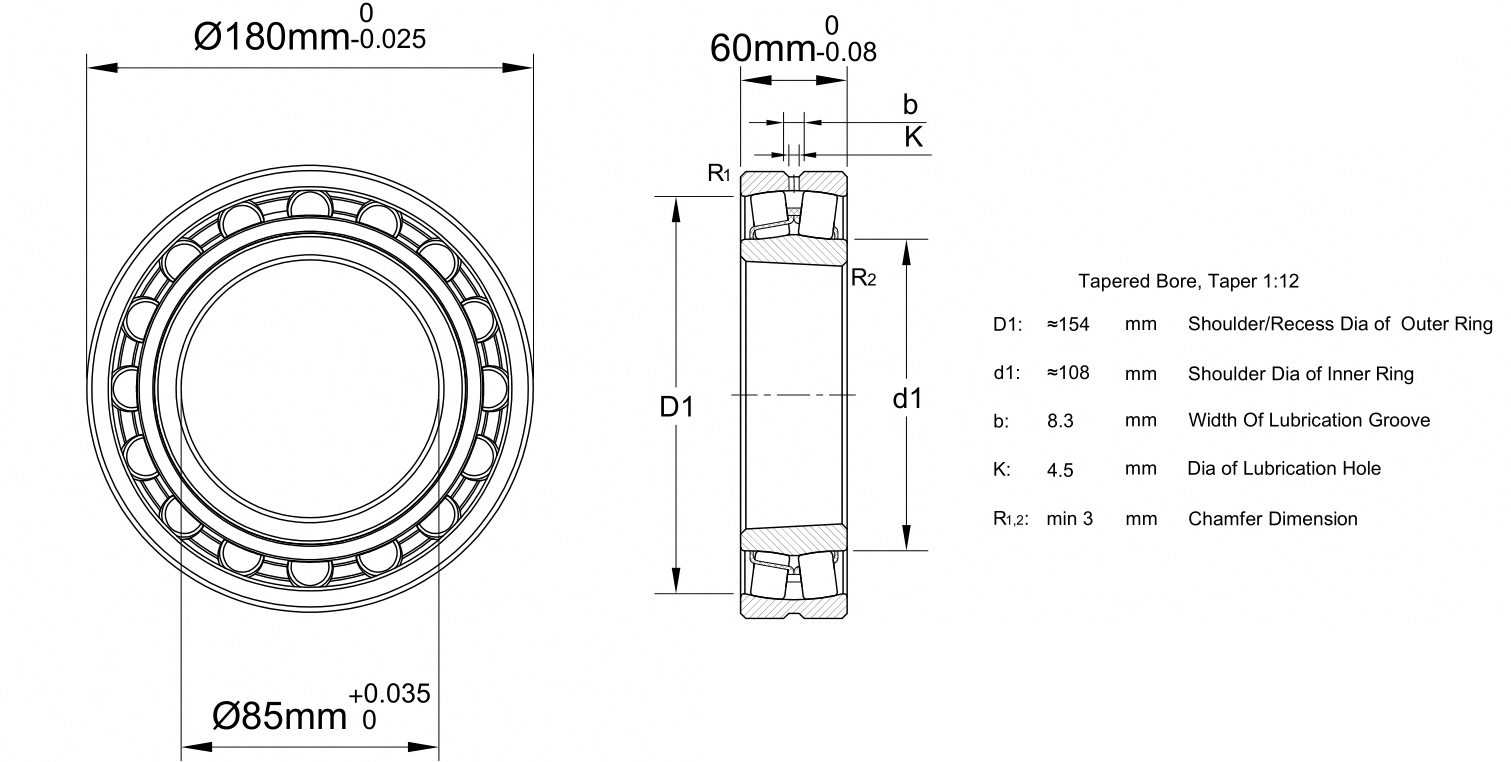

Technical Specifications

Model 22317 EK
Product Type Double Row Spherical Roller Bearing
Bore Diameter 85 mm
Outside Diameter 180 mm
Width 60 mm
Design Double row; tapered bore; annular groove and lubrication holes
Seal Type Open
Ring / Rolling Element Material Chrome steel
Cage Steel or machined cage depending on production configuration
Lubrication Grease or oil

Typical Applications

  • Mining and quarry equipment

  • Heavy-duty conveyors and crushers

  • Industrial gearboxes and fans

Selection Guidance

Confirm the tapered-bore mounting method, operating clearance, lubrication supply and permissible misalignment.
