22210 EK Double Row Spherical Roller Bearing

22210 EK double-row spherical roller bearing with tapered bore with 50 mm bore, 90 mm OD, 23 mm width. Two rows of barrel-shaped rollers share a spherical outer-ring raceway, accommodating shaft misalignment while carrying high radial loads and axial loads. The EK version has a 1:12 tapered bore. Review shaft fit, loads and working conditions before replacement.
Availability:
Quantity:
Inquire Add to Basket

  • 22210 EK

  • BWK

  • BWK-22210-EK

DESCRIPTION

Product Overview

22210 EK is a double row spherical roller bearing. Two rows of barrel-shaped rollers share a spherical outer-ring raceway, accommodating shaft misalignment while carrying high radial loads and axial loads. The EK version has a 1:12 tapered bore.

Key Features

  • Self-aligning design tolerates shaft deflection

  • Double-row rollers for demanding radial loads

  • 1:12 tapered bore for sleeve or tapered-seat mounting

22210ek

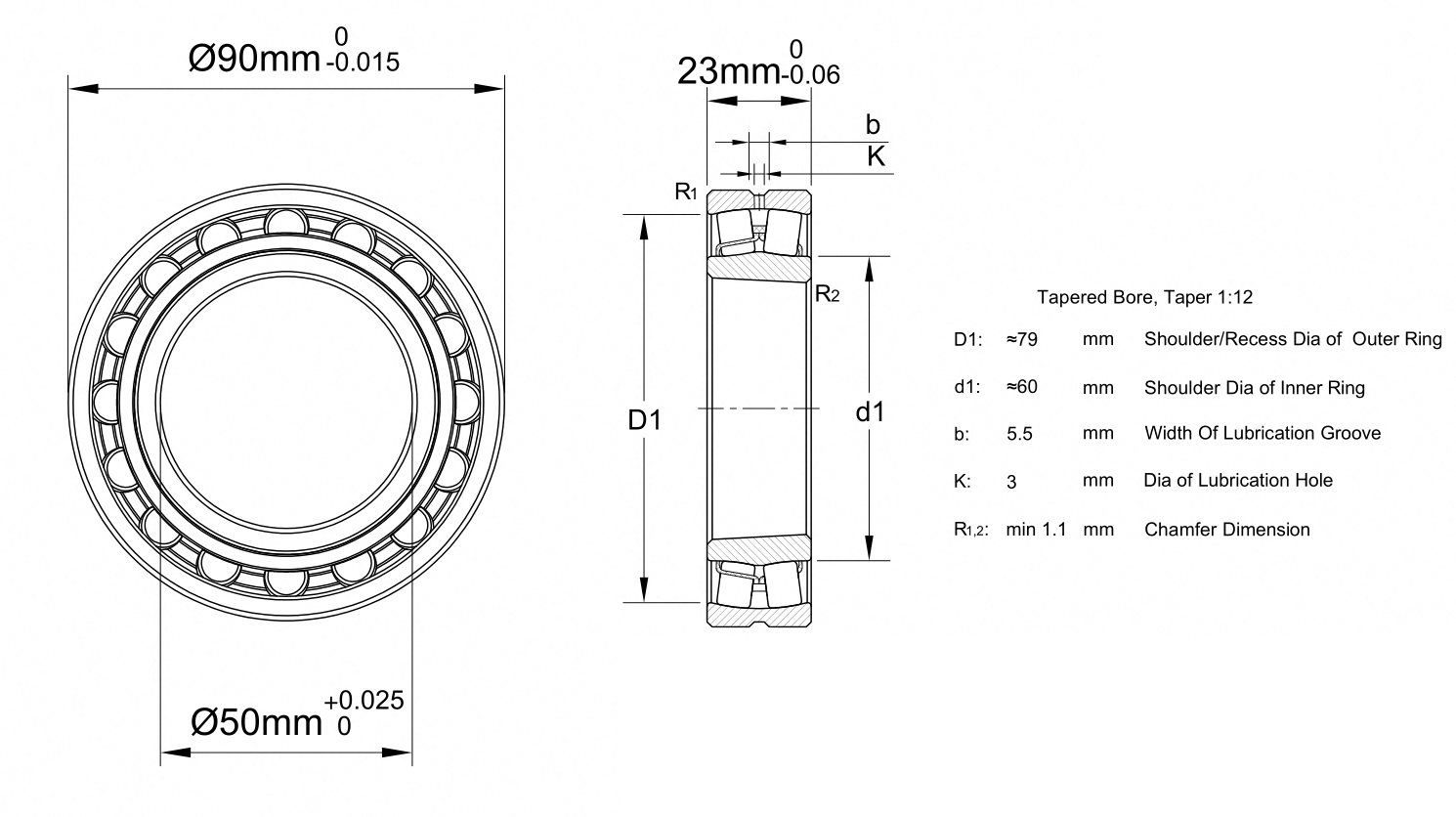

Technical Specifications

Model 22210 EK
Product Type Double Row Spherical Roller Bearing
Bore Diameter 50 mm
Outside Diameter 90 mm
Width 23 mm
Bore Design Taper 1:12
Structure Double row, self-aligning
Seal Type Open
Ring / Roller Material Chrome steel
Cage Material Steel
Lubrication Required

Typical Applications

  • Heavy industrial conveyors and crushers

  • Gearboxes and mechanical drives

  • Mining and bulk material handling machinery

Selection Guidance

For tapered-bore installation, follow the specified drive-up or radial-clearance-reduction procedure; check lubrication and alignment under working loads.
