22234 CC/W33
BWK
BWK-22234-CC-W33

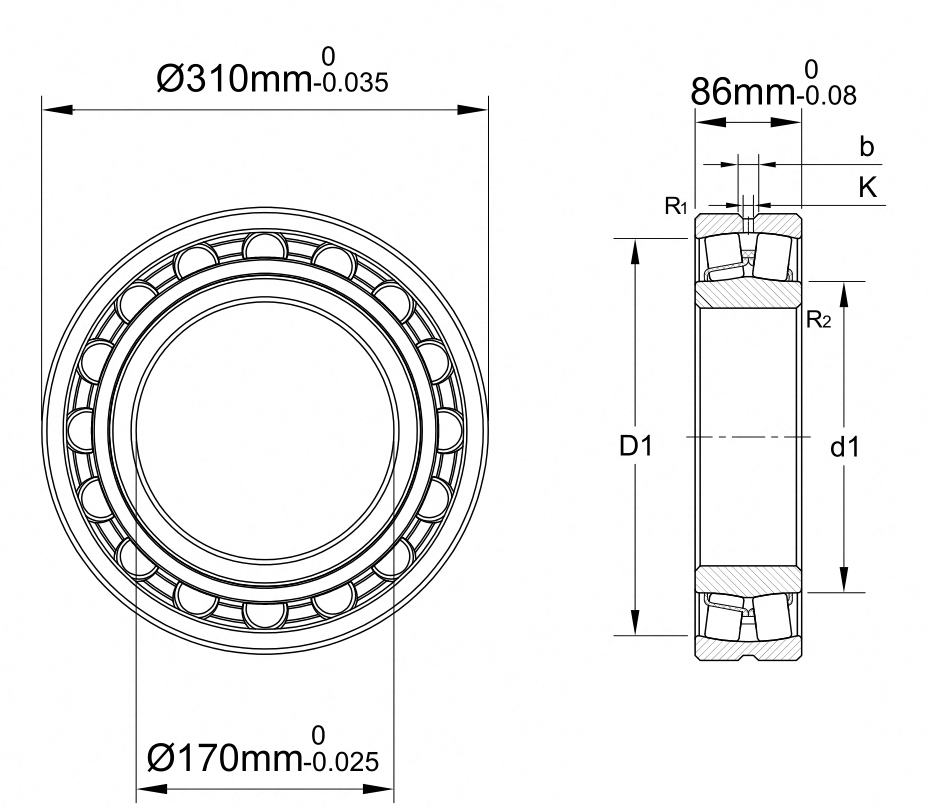

22234 CC/W33 is a spherical roller bearing with a 170 mm bore, 310 mm outside diameter and 86 mm width. Supports heavy radial loads and axial loads in both directions while accommodating shaft misalignment. The W33 feature provides an outer-ring lubrication groove and holes.
| Model | 22234 CC/W33 |
| Product Type | Spherical Roller Bearing |
| Structure | Double row spherical rollers with cylindrical bore |
| System of Measurement | Metric |
| Bearing Type | Roller |
| Roller Bearing Type | Spherical |
| Bore Type | Cylindrical |
| Seal Type | Open |
| For Load Direction | Combined |
| Construction | Double Row |
| Radial run-out | Standard |
| Bore Dia | 170 mm |
| Bore Dia Tolerance | -0.025mm to 0 |
| Outer Dia | 310 mm |
| Outer Dia Tolerance | -0.035mm to 0 |
| Width | 86 mm |
| Width Tolerance | -0.08mm to 0 |
| Shoulder Dia Of Inner Ring | 203 mm |
| Shoulder/Recess Dia Of Outer Ring | 267 mm |
| Width Of Lubrication Groove | 16.7 mm |
| Diameter Of Lubrication Hole | 9 mm |
| Chamfer Dimension | min.4 mm |
| Radial Clearance | CN |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | Steel |
| Dynamic Radial Load | 1183 kN |
| Static Radial Load | 1460 kN |
| Max Speed (X1000 rpm) | 2.6 |
| Temperature Range | -30° to 200 °C |
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 28 kg |
Conveyors, crushers, industrial gearboxes and heavy machinery.
Check shaft and housing fits, required internal clearance and lubrication access. Misalignment capacity does not remove the need to align the mounting surfaces.
