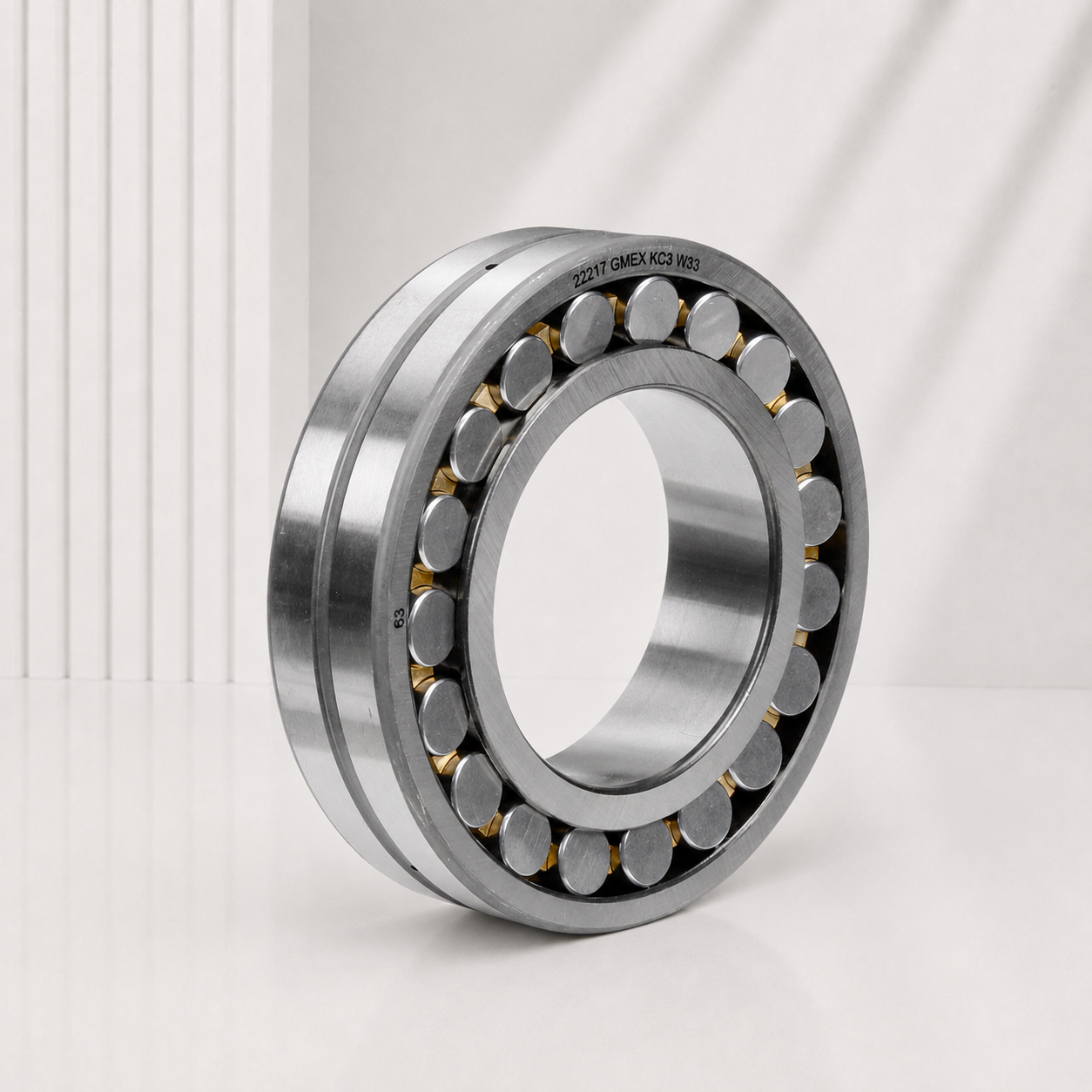

22217 GMEX KC3 W33 Spherical Roller Bearing

22217 GMEX KC3 W33 double-row spherical roller bearing, 85 mm bore x 150 mm outside diameter x 36 mm width, for heavy loads and shaft-misalignment applications.
Availability:
Quantity:
Inquire Add to Basket

  • 22217 GMEX KC3 W33

  • BWK

  • BWK-22217-GMEX-KC3-W33

DESCRIPTION

Product Overview

22217 GMEX KC3 W33 double-row spherical roller bearing with 85 mm bore, 150 mm outside diameter and 36 mm width. It is designed for heavy radial loads, combined loads and applications where shaft misalignment may occur.


Technical Data

Model22217 GMEX KC3 W33
Bore diameter85 mm
Outside diameter150 mm
Width36 mm
Bearing typeDouble-row spherical roller bearing
Bore shapeTapered bore
Internal clearanceC3
Lubrication featureW33 groove and lubrication holes

Key Features

  • Self-aligning double-row roller design

  • High radial-load capacity

  • Accommodates moderate axial loads in both directions

  • W33 lubrication groove and holes

  • Suitable for demanding industrial service

Applications

  • Mining and quarry equipment

  • Conveyors and crushers

  • Industrial gearboxes

  • Pulp and paper machinery

  • Heavy-duty rotating equipment

Selection Notes

Confirm shaft and housing fits, load, speed, operating temperature, lubrication and internal-clearance requirements before ordering.
