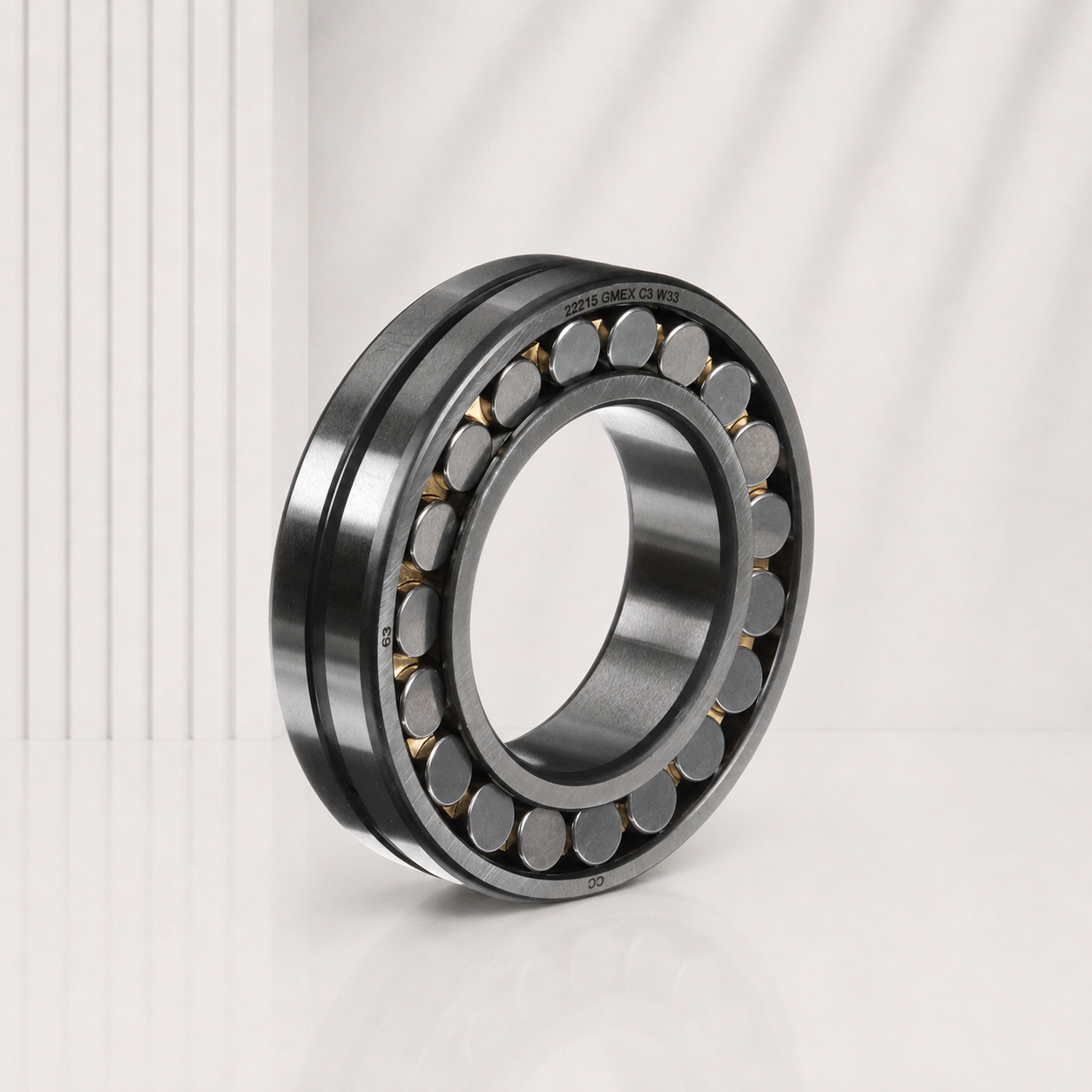

22215 GMEX C3 W33 Spherical Roller Bearing

22215 GMEX C3 W33 double-row spherical roller bearing, 75 mm bore x 130 mm outside diameter x 31 mm width, for heavy loads and shaft-misalignment applications.

Availability:

Quantity:



Inquire Add to Basket

Model:
22215 GMEX C3 W33
Brand:
BWK
Code:
BWK-22215-GMEX-C3-W33

DESCRIPTION

Product Overview

22215 GMEX C3 W33 double-row spherical roller bearing with 75 mm bore, 130 mm outside diameter and 31 mm width. It is designed for heavy radial loads, combined loads and applications where shaft misalignment may occur.

Technical Data

Model	22215 GMEX C3 W33
Bore diameter	75 mm
Outside diameter	130 mm
Width	31 mm
Bearing type	Double-row spherical roller bearing
Bore shape	Straight bore
Internal clearance	C3
Lubrication feature	W33 groove and lubrication holes

Key Features

Self-aligning double-row roller design
High radial-load capacity
Accommodates moderate axial loads in both directions
W33 lubrication groove and holes
Suitable for demanding industrial service

Applications

Mining and quarry equipment
Conveyors and crushers
Industrial gearboxes
Pulp and paper machinery
Heavy-duty rotating equipment

Selection Notes

Confirm shaft and housing fits, load, speed, operating temperature, lubrication and internal-clearance requirements before ordering.
