Thin Section Deep Groove Ball Bearings – 61900, 61800 and 16000 Series

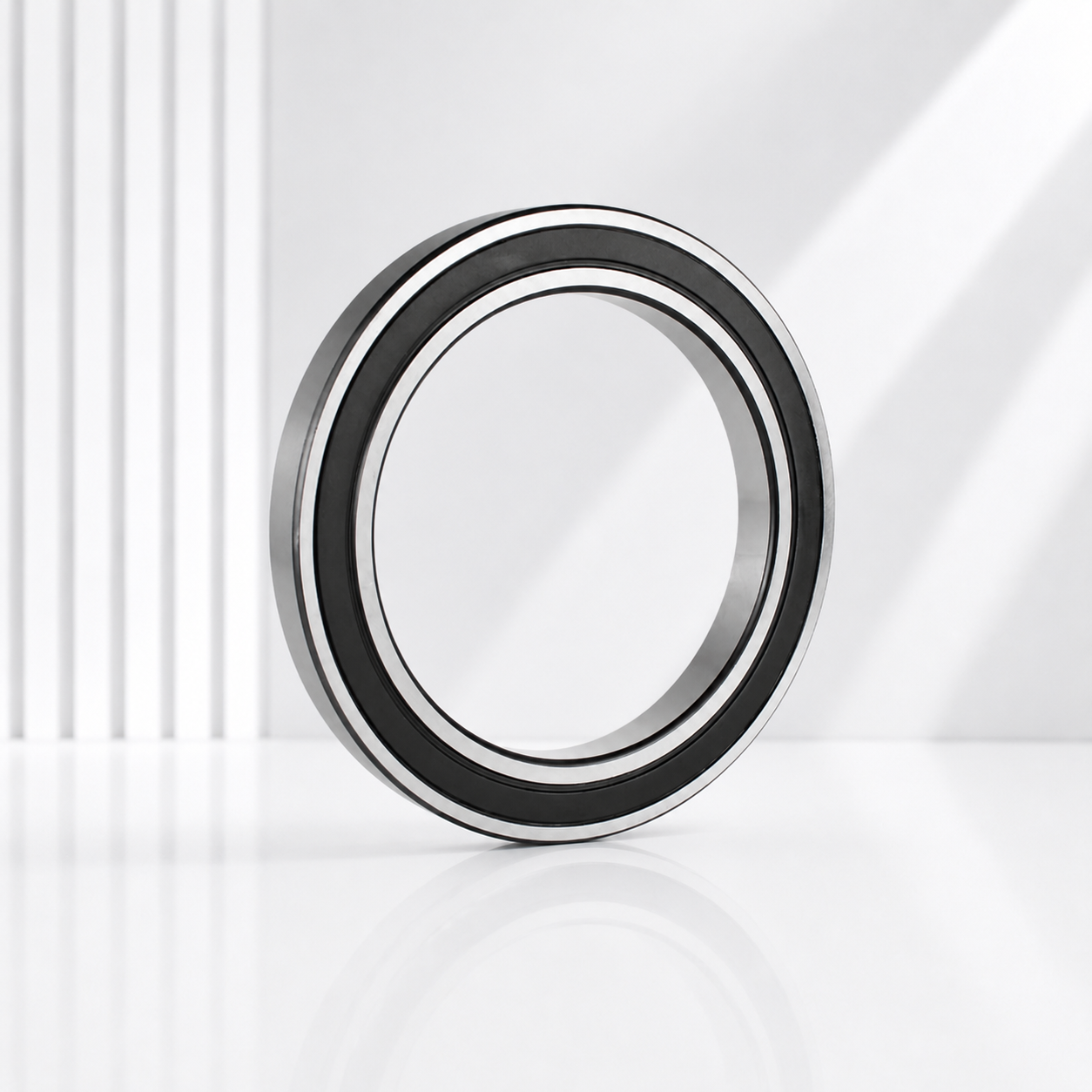

BWK thin-section deep groove ball bearings combine a compact radial cross-section with standard metric bore sizes for space-limited machinery.

Availability:

Quantity:



Inquire Add to Basket

Product Overview

The 61900, 61800 and 16000 series reduce radial installation space while retaining the operating principle of a single-row deep groove ball bearing. Select the series by matching the full d × D × B dimensions and required load capacity.

Models & Technical Data

61900 Thin-Section Series

Model	ZZ	2RZ	2RS	N	NR	d (mm)	D (mm)	B (mm)	rₛ min (mm)	D2 max (mm)	f max (mm)	Cr (kN)	Cor (kN)	Weight (kg)
61905	ZZ	2RZ	2RS	N	NR	25	42	9	0.3	44.8	0.85	6.63	4.00	0.045
61906	ZZ	2RZ	2RS	N	NR	30	47	9	0.3	49.8	0.85	7.28	4.55	0.051
61907	ZZ	2RZ	2RS	N	NR	35	55	10	0.6	57.8	0.85	9.56	6.20	0.080
61908	ZZ	2RZ	2RS	N	NR	40	62	12	0.6	64.8	0.85	13.8	9.30	0.120
61909	ZZ	2RZ	2RS	N	NR	45	68	12	0.6	70.8	0.85	10.1	6.70	0.140
61910	ZZ	2RZ	2RS	N	NR	50	72	12	0.6	74.8	0.85	14.6	10.4	0.140
61911	ZZ	2RZ	2RS	N	NR	55	80	13	1	84.4	1.12	16.0	13.2	0.181
61912	ZZ	2RZ	2RS	N	NR	60	85	13	1	89.4	1.12	16.4	14.2	0.195
61913	ZZ	2RZ	2RS	N	NR	65	90	13	1	94.4	1.12	16.0	15.0	0.196
61914	ZZ	2RZ	2RS	N	NR	70	100	16	1	104.4	1.12	23.7	21.1	0.342
61915	ZZ	2RZ	2RS	N	NR	75	105	16	1	110.7	1.12	24.3	22.5	0.355
61916	ZZ	2RZ	2RS	N	NR	80	110	16	1	115.7	1.12	24.9	23.9	0.375
61917	ZZ	2RZ	2RS	N	NR	85	120	18	1.1	125.7	1.12	31.9	29.7	0.507
61918	ZZ	2RZ	2RS	N	NR	90	125	18	1.1	130.7	1.12	32.8	31.5	0.533
61919	ZZ	2RZ	2RS	N	NR	95	130	18	1.1	135.7	1.12	33.7	33.3	0.558
61920	ZZ	2RZ	2RS	N	NR	100	140	20	1.1	145.7	1.7	42.7	41.9	0.774
61921	ZZ	2RZ	2RS	N	NR	105	145	20	1.1	150.7	1.7	43.9	44.3	0.808
61922	ZZ	2RZ	2RS	N	NR	110	150	20	1.1	155.7	1.7	43.6	44.4	1.00
61924	ZZ	2RZ	2RS	N	NR	120	165	22	1.1	171.5	1.7	53.0	53.9	1.09
61926	ZZ	2RZ	2RS	N	NR	130	180	24	1.5	186.5	1.7	65.1	67.2	1.50
61928	ZZ	2RZ	2RS	N	NR	140	190	24	1.5	196.5	1.7	66.6	71.2	1.59
61930	ZZ	2RZ	2RS	-	-	150	210	28	2	-	-	84.7	90.2	2.45
61932	ZZ	2RZ	2RS	-	-	160	220	28	2	-	-	86.9	95.5	2.59
61934	ZZ	2RZ	2RS	-	-	170	230	28	2	-	-	88.8	100	2.73
61936	ZZ	2RZ	2RS	-	-	180	250	33	2	-	-	118	133	4.06
61938	ZZ	2RZ	2RS	-	-	190	260	33	2	-	-	117	133	4.22
61940	ZZ	2RZ	2RS	-	-	220	300	38	2.1	-	-	152	178	6.34
61948	ZZ	2RZ	-	-	-	240	320	38	2.1	-	-	154	190	8.49
61952	ZZ	2RZ	-	-	-	260	360	46	2.1	-	-	204	255	14
61956	ZZ	2RZ	-	-	-	280	380	46	2.1	-	-	209	272	15.1
61960	ZZ	2RZ	-	-	-	300	420	56	3	-	-	269	370	23.9

61800 Thin-Section Series

Model	ZZ	2RZ	2RS	N	NR	d (mm)	D (mm)	B (mm)	rₛ min (mm)	D2 max (mm)	f max (mm)	Cr (kN)	Cor (kN)	Weight (kg)
61809	ZZ	2RZ	2RS	N	NR	45	58	7	0.3	60.8	0.85	4.65	4.32	0.040
61810	ZZ	2RZ	2RS	N	NR	50	65	7	0.3	67.8	0.85	6.60	6.10	0.043
61811	ZZ	2RZ	2RS	N	NR	55	72	9	0.3	74.8	0.85	9.10	8.40	0.070
61812	ZZ	2RZ	2RS	N	NR	60	78	10	0.3	82.7	1.12	9.10	8.70	0.093
61813	ZZ	2RZ	2RS	N	NR	65	85	10	0.6	89.4	1.12	11.9	11.5	0.130
61814	ZZ	2RZ	2RS	N	NR	70	90	10	0.6	94.4	1.12	12.1	11.9	0.138
61815	ZZ	2RZ	2RS	N	NR	75	95	10	0.6	99.4	1.12	12.5	12.8	0.147
61816	ZZ	2RZ	2RS	N	NR	80	100	10	0.6	104.4	1.12	12.7	13.3	0.155
61817	ZZ	2RZ	2RS	N	NR	85	110	13	1	115.7	1.12	19.2	19.8	0.245
61818	ZZ	2RZ	2RS	N	NR	90	115	13	1	120.7	1.12	19.5	20.5	0.258
61819	ZZ	2RZ	2RS	N	NR	95	120	13	1	125.7	1.12	19.8	21.3	0.270
61820	ZZ	2RZ	2RS	N	NR	100	125	13	1	130.7	1.12	20.1	22.0	0.303
61821	-	2RZ	2RS	N	NR	105	130	13	1	135.7	1.12	20.3	22.7	0.312
61822	-	2RZ	2RS	N	NR	110	140	16	1	145.7	1.7	22.5	24.5	0.509
61824	-	2RZ	2RS	N	NR	120	150	16	1	155.7	1.7	24.0	28.0	0.529
61826	-	2RZ	2RS	N	NR	130	165	18	1.1	171.5	1.7	24.4	28.0	0.775
61828	-	2RZ	2RS	N	NR	140	175	18	1.1	181.5	1.7	39.2	46.0	0.784
61830	-	2RZ	2RS	N	NR	150	190	20	1.1	196.5	1.7	49.1	57.1	1.11
61832	-	2RZ	2RS	N	NR	160	200	20	1.1	206.5	1.7	45.2	55.1	1.18
61834	-	2RZ	2RS	-	-	170	215	22	1.1	-	-	51.2	63.3	1.65
61836	-	2RZ	2RS	-	-	180	225	22	1.1	-	-	62.3	75.9	1.62
61838	-	2RZ	2RS	-	-	190	240	24	1.5	-	-	75.1	91.6	2.10
61840	-	2RZ	2RS	-	-	200	250	24	1.5	-	-	74.2	91.2	2.18
61848	ZZ	2RZ	-	-	-	240	300	28	2	-	-	98.5	137	4.48
61852	ZZ	2RZ	-	-	-	260	320	28	2	-	-	101	148	4.84
61856	ZZ	2RZ	-	-	-	280	350	33	2	-	-	133	191	7.2
61860	ZZ	2RZ	-	-	-	300	380	38	2	-	-	166	233	10.3

16000 Extra-Thin Series

Model	ZZ	2RZ	2RS	N	NR	d (mm)	D (mm)	B (mm)	rₛ min (mm)	D2 max (mm)	f max (mm)	Cr (kN)	Cor (kN)	Weight (kg)
16004	-	-	-	-	-	20	42	8	0.3	-	-	7.90	4.45	0.050
16005	-	-	-	-	-	25	47	8	0.3	-	-	8.42	5.15	0.060
16006	-	-	-	-	-	30	55	9	0.30	-	-	11.2	6.25	0.085
16007	-	-	-	-	-	35	62	9	0.30	-	-	11.5	8.80	0.100
16008	-	-	-	-	-	40	68	9	0.3	-	-	12.5	10.2	0.130
16009	-	-	-	-	-	45	75	10	0.6	-	-	15.6	12.2	0.155
16010	-	-	-	-	-	50	80	10	0.6	-	-	16.1	13.1	0.166
16011	-	-	-	-	-	55	90	11	0.6	-	-	19.4	16.2	0.207
16012	-	-	-	-	-	60	95	11	0.6	-	-	19.9	17.5	0.224
16013	-	-	-	-	-	65	100	11	0.6	-	-	20.5	18.6	0.241
16014	-	-	-	-	-	70	110	13	0.6	-	-	27.9	25.0	0.386
16015	-	-	-	-	-	75	115	13	0.6	-	-	28.7	26.8	0.411
16016	-	-	-	-	-	80	125	14	0.6	-	-	33.1	31.4	0.539
16017	-	-	-	-	-	85	130	14	0.6	-	-	34.0	33.3	0.568
16018	-	-	-	-	-	90	140	16	1	-	-	41.5	39.3	0.671
16020	-	-	-	-	-	100	150	16	1	-	-	43.8	443	0.744
16021	-	-	-	-	-	105	160	18	1	-	-	51.8	50.6	1.00
16022	-	-	-	-	-	110	170	19	1	-	-	57.4	56.7	1.27
16024	-	-	-	-	-	120	180	19	1	-	-	58.8	60.4	1.37
16026	-	-	-	-	-	130	200	22	1.1	-	-	79.7	79.2	1.87
16028	-	-	-	-	-	140	210	22	1.1	-	-	82.1	85.0	2.00
16030	-	-	-	-	-	150	225	24	1.1	-	-	91.9	98.5	2.64
16032	-	-	-	-	-	160	240	25	1.5	-	-	99	108	4.2
16034	-	-	-	-	-	170	260	28	1.5	-	-	114	126	5.71
16036	-	-	-	-	-	180	280	31	2	-	-	145	157	7.5
16038	-	-	-	-	-	190	290	31	2	-	-	149	168	7.78
16040	-	-	-	-	-	200	310	34	2	-	-	161	180	10
16044	-	-	-	-	-	220	340	37	2.1	-	-	180	217	13.1
16048	-	-	-	-	-	240	360	37	2.1	-	-	196	243	13.9
16052	-	-	-	-	-	260	400	44	3	-	-	237	310	21.1
16056	-	-	-	-	-	280	420	44	3	-	-	243	330	22.7
16060	-	-	-	-	-	300	460	50	4	-	-	285	405	31.5

Selection Notes

Confirm the complete bearing designation, dimensions, shield or seal, snap-ring requirement, internal clearance, speed, lubrication and application before ordering. A dash in the table means that the BWK catalogue does not list that option for the model.

Applications

Compact motors

Precision equipment

Robotics and automation

Textile and packaging machinery

Space-limited mechanisms

Packaging & Inquiry

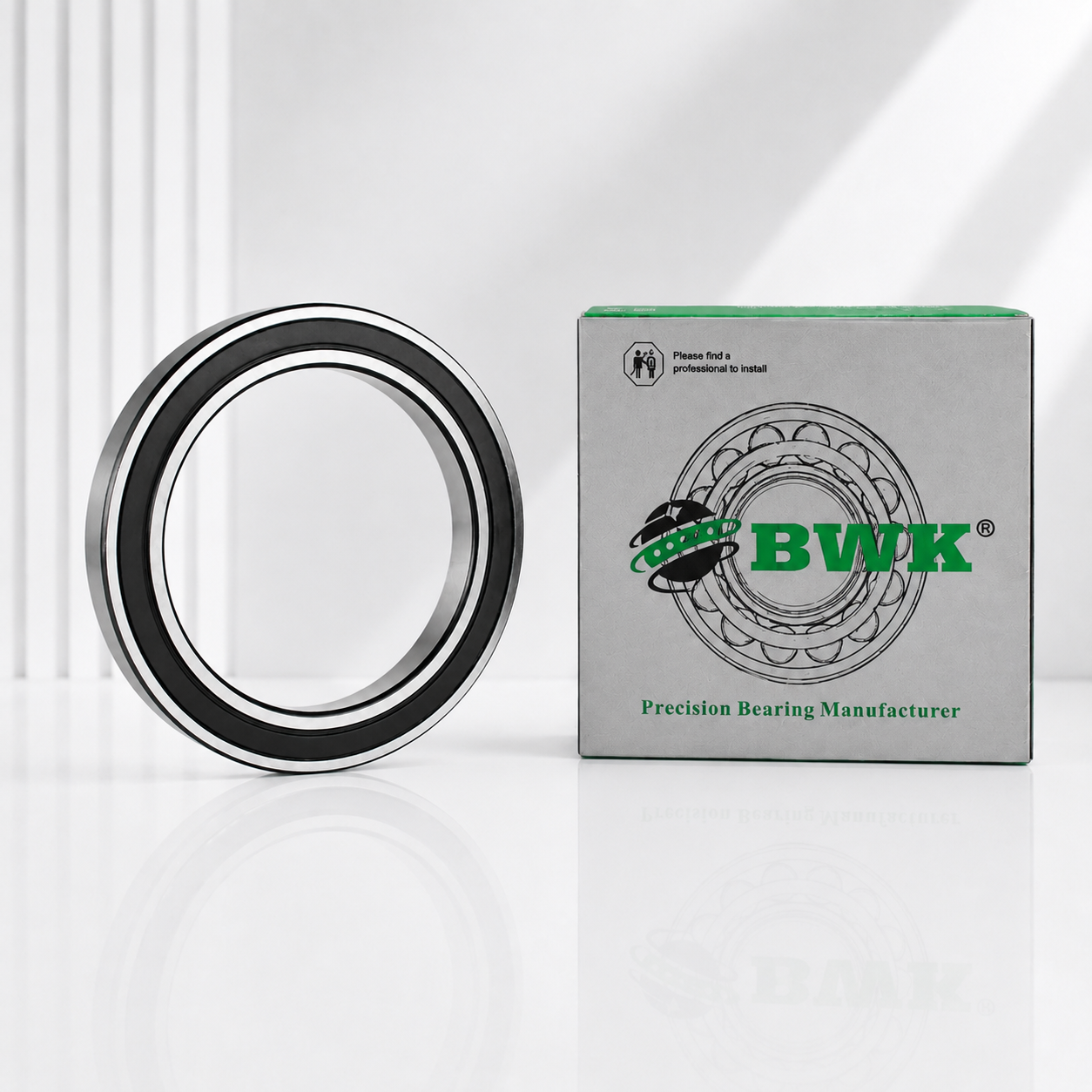

Send the complete model, suffix, quantity and application requirements. BWK packaging can include individual boxes, clear model labels and reinforced export cartons.
