6000 Series Deep Groove Ball Bearings

BWK 6000 Series Deep Groove Ball Bearings combine a compact light-series design with low friction and stable high-speed operation. Open, metal-shielded (ZZ) and rubber-sealed (2RS) options are available for electric motors, instruments and light industrial equipment.
Availability:
Quantity:
Inquire Add to Basket

Product Overview

The 6000 Series is the lightest of these three standard deep-groove series. Its relatively thin cross-section saves installation space while providing smooth rotation, low noise and dependable radial-load performance. It is suitable where compact dimensions and speed are more important than maximum load capacity.

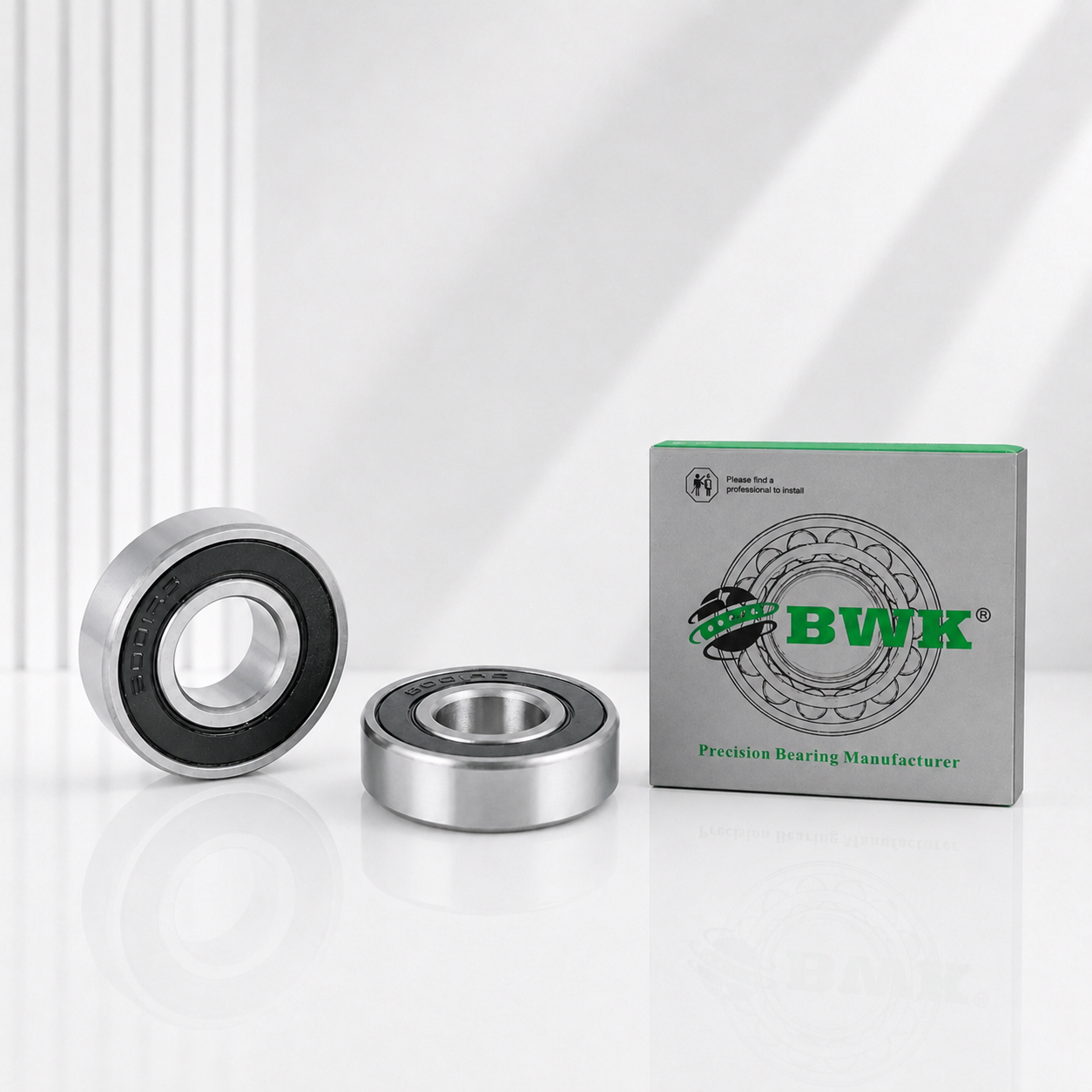

BWK-6000-Series-With-Box

Key Advantages


1.Compact light-series dimensions

2.Low friction and suitable for high speeds

3.Stable, quiet running

4.Supports radial loads and moderate axial loads

5.Available in open, ZZ and 2RS designs



Models & Dimensions


Model ZZ 2RZ 2RS N NR d (mm) D (mm) B (mm) rₛ min (mm) D2 max (mm) f max (mm) Cr (kN) Cor (kN) Weight (kg)
6000 ZZ 2RZ 2RS N NR 10 26 8 0.3 29.2 0.7 4.55 1.97 0.018
6001 ZZ 2RZ 2RS N NR 12 28 8 0.3 30.8 0.85 5.00 2.30 0.021
6002 ZZ 2RZ 2RS N NR 15 32 9 0.3 36.7 1.12 5.50 2.80 0.030
6003 ZZ 2RZ 2RS N NR 17 35 10 0.3 39.7 1.12 6.00 3.25 0.040
6004 ZZ 2RZ 2RS N NR 20 42 12 0.6 46.3 1.12 9.38 5.03 0.068
6005 ZZ 2RZ 2RS N NR 25 47 12 0.6 52.7 1.12 10.1 5.83 0.079
6006 ZZ 2RZ 2RS N NR 30 55 13 1 60.7 1.12 13.2 8.30 0.113
6007 ZZ 2RZ 2RS N NR 35 62 14 1 67.7 1.7 16.2 10.4 0.149
6008 ZZ 2RZ 2RS N NR 40 68 15 1 74.6 1.7 17.0 11.7 0.185
6009 ZZ 2RZ 2RS N NR 45 75 16 1 81.6 1.7 21.0 14.8 0.231
6010 ZZ 2RZ 2RS N NR 50 80 16 1 86.6 1.7 22.0 16.3 0.250
6011 ZZ 2RZ 2RS N NR 55 90 18 1.1 96.5 2.46 30.3 22.0 0.362
6012 ZZ 2RZ 2RS N NR 60 95 18 1.1 101.6 2.46 31.7 24.2 0.385
6013 ZZ 2RZ 2RS N NR 65 100 18 1.1 106.5 2.46 32.0 24.8 0.430
6014 ZZ 2RZ 2RS N NR 70 110 20 1.1 116.6 2.46 38.6 30.4 0.569
6015 ZZ 2RZ 2RS N NR 75 115 20 1.1 121.6 2.46 40.2 33.2 0.603
6016 ZZ 2RZ 2RS N NR 80 125 22 1.1 134.7 2.82 47.5 39.8 0.821
6017 ZZ 2RZ 2RS N NR 85 130 22 1.1 139.7 2.82 50.8 42.8 0.848
6018 ZZ 2RZ 2RS N NR 90 140 24 1.5 149.7 2.82 58.0 49.9 1.12
6019 ZZ 2RZ 2RS N NR 95 145 24 1.5 154.7 2.82 57.7 50.0 1.18
6020 ZZ 2RZ 2RS N NR 100 150 24 1.5 159.7 2.82 60.5 54.0 1.25
6021 ZZ 2RZ 2RS N NR 105 160 26 2 169.7 2.82 72.8 65.5 1.60
6022 ZZ 2RZ 2RS N NR 110 170 28 2 182.9 3.1 81.9 72.9 1.93
6024 ZZ 2RZ 2RS N NR 120 180 28 2 192.9 3.1 87.7 79.3 2.03
6026 ZZ 2RZ 2RS N NR 130 200 33 2 212.9 3.1 105 96.8 3.15
6028 ZZ 2RZ 2RS N NR 140 210 33 2 222.8 3.1 111 108 3.35
6030 ZZ 2RZ 2RS N NR 150 225 35 2.1 237 3.5 125 125 4.80
6032 ZZ 2RZ 2RS - - 160 240 38 2.1 - - 137 135 5.15
6034 ZZ 2RZ 2RS - - 170 260 42 2.1 - - 161 161 6.89
6036 ZZ 2RZ 2RS - - 180 280 46 2.1 - - 180 185 8.88
6038 ZZ 2RZ 2RS - - 190 290 46 2.1 - - 188 201 9.39
6040 ZZ 2RZ 2RS - - 200 310 51 2.1 - - 207 226 12
6044 ZZ 2RZ 2RS - - 220 340 56 3 - - 235 271 18.6
6048 ZZ 2RZ 2RS - - 240 360 56 3 - - 244 296 19.9
6052 ZZ 2RZ 2RS - - 260 400 65 4 - - 291 375 29.4
6056 ZZ 2RZ 2RS - - 280 420 65 4 - - 300 410 31.2
6060 ZZ 2RZ 2RS - - 300 460 74 4 - - 355 500 44.2


Applications


  • Small electric motors

  • Precision instruments

  • Fans and small pumps

  • Office and automation equipment

  • Light industrial machinery


Packaging & Inquiry


Each bearing is protected with individual wrapping and a BWK branded box, then packed in export cartons. Metal shields (ZZ), rubber seals (2RS), clearance options and OEM packaging can be supplied according to order requirements. Contact BWK for model selection, quotations and delivery details.


Need More Models?


Contact BWK for more cylindrical roller bearing models, technical support and customized bearing solutions.
