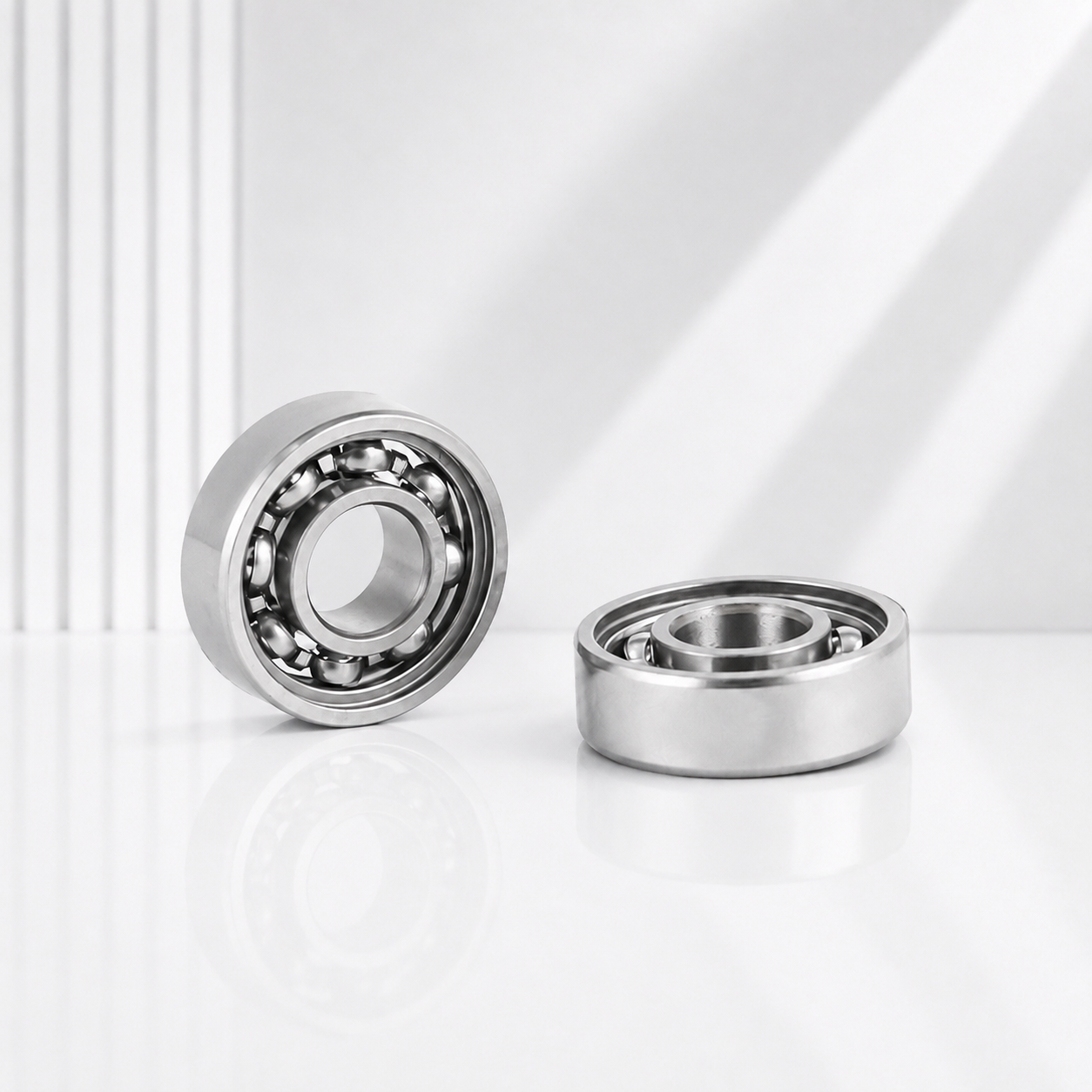

6200 Series Deep Groove Ball Bearings

BWK 6200 Series Deep Groove Ball Bearings offer a practical balance of radial load capacity, speed and durability. This widely used medium series is available in open, metal-shielded (ZZ) and rubber-sealed (2RS) versions for general industrial applications.
Availability:
Quantity:
Inquire Add to Basket

Product Overview

The 6200 Series is a general-purpose deep groove ball bearing series with a stronger cross-section than the 6000 Series. It provides a balanced combination of speed, radial capacity and long service life, making it one of the most widely used bearing series in industrial equipment.

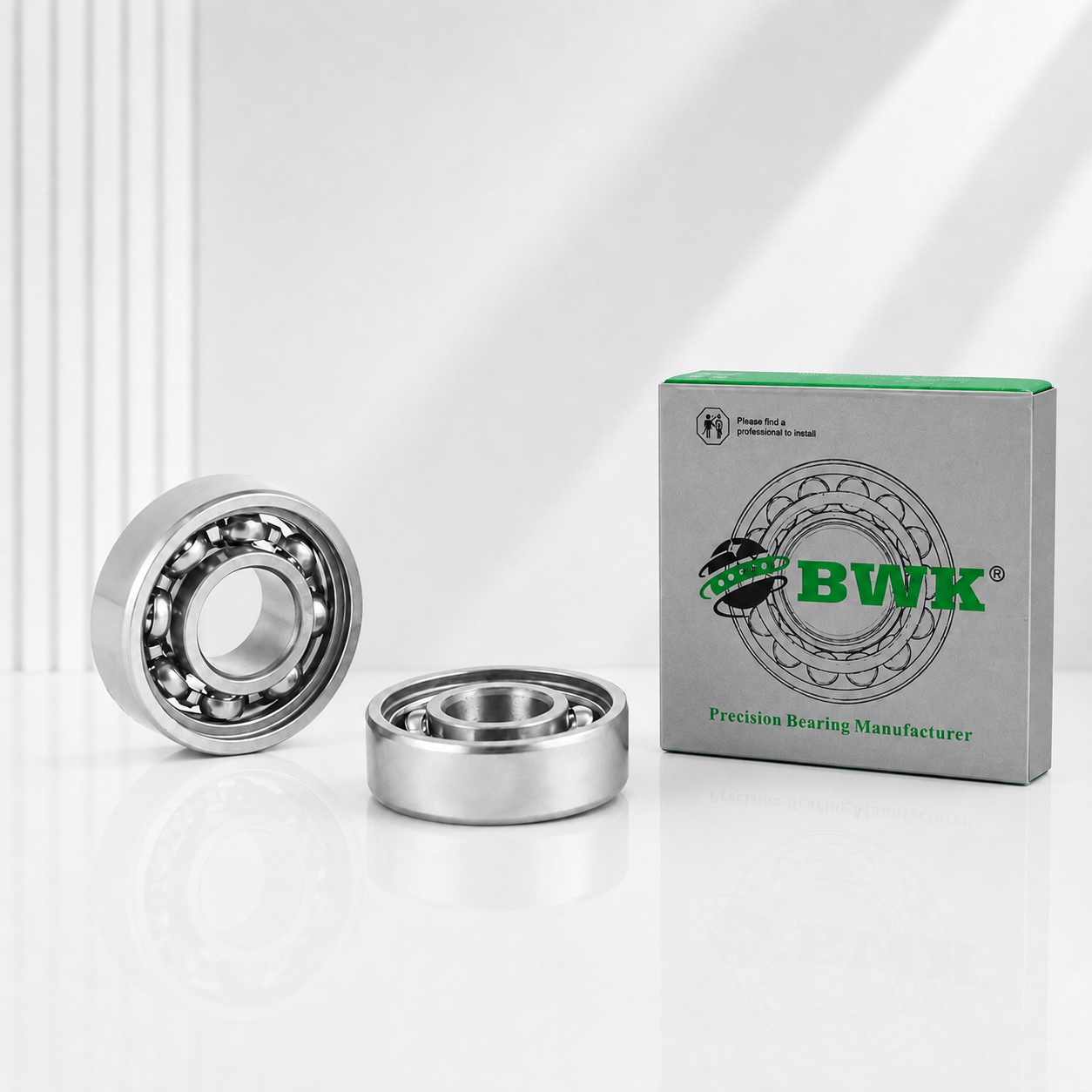

BWK-6200-Series-With-Box

Key Advantages

1.Balanced load capacity and rotational speed

2.Reliable operation in continuous-duty equipment

3.Low maintenance requirements

4.Supports radial loads and moderate axial loads

5.Available in open, ZZ and 2RS designs



Models & Dimensions


Model ZZ 2RZ 2RS N NR d (mm) D (mm) B (mm) rₛ min (mm) D2 max (mm) f max (mm) Cr (kN) Cor (kN) Weight (kg)
6201 ZZ 2RZ 2RS N NR 12 32 10 0.6 36.7 1.12 6.00 2.70 0.036
6202 ZZ 2RZ 2RS N NR 15 35 11 0.6 39.7 1.12 7.80 3.75 0.045
6203 ZZ 2RZ 2RS N NR 17 40 12 0.6 44.6 1.12 9.56 4.75 0.065
6204 ZZ 2RZ 2RS N NR 20 47 14 1 52.7 1.12 12.7 6.55 0.103
6205 ZZ 2RZ 2RS N NR 25 52 15 1 57.9 1.12 14.0 7.80 0.127
6206 ZZ 2RZ 2RS N NR 30 62 16 1 67.7 1.7 19.5 11.2 0.203
6207 ZZ 2RZ 2RS N NR 35 72 17 1.1 78.6 1.7 25.5 15.3 0.287
6208 ZZ 2RZ 2RS N NR 40 80 18 1.1 86.6 1.7 30.7 19.0 0.367
6209 ZZ 2RZ 2RS N NR 45 85 19 1.1 91.6 1.7 33.2 21.6 0.416
6210 ZZ 2RZ 2RS N NR 50 90 20 1.1 96.5 2.46 35.1 23.2 0.462
6211 ZZ 2RZ 2RS N NR 55 100 21 1.5 106.5 2.46 43.4 29.2 0.607
6212 ZZ 2RZ 2RS N NR 60 110 22 1.5 116.6 2.46 47.5 32.5 0.783
6213 ZZ 2RZ 2RS N NR 65 120 23 1.5 129.7 2.82 55.9 40.5 0.990
6214 ZZ 2RZ 2RS N NR 70 125 24 1.5 134.7 2.82 60.5 45.0 1.10
6215 ZZ 2RZ 2RS N NR 75 130 25 1.5 139.7 2.82 66.3 49.0 1.20
6216 ZZ 2RZ 2RS N NR 80 140 26 2 149.7 2.82 70.2 55.0 1.40
6217 ZZ 2RZ 2RS N NR 85 150 28 2 159.7 2.82 83.2 64.0 1.80
6218 ZZ 2RZ 2RS N NR 90 160 30 2 169.7 2.82 95.6 73.5 2.15
6219 ZZ 2RZ 2RS N NR 95 170 32 2.1 182.9 3.1 108 81.5 2.60
6220 ZZ 2RZ 2RS N NR 100 180 34 2.1 192.9 3.1 122 92.7 3.20
6221 ZZ 2RZ 2RS N NR 105 190 36 2.1 202.9 3.1 133 104 3.71
6222 ZZ 2RZ 2RS N NR 110 200 38 2.1 212.9 3.1 144 117 4.44
6224 ZZ 2RZ 2RS N NR 120 215 40 2.1 227.8 3.1 155 130 5.32
6226 ZZ 2RZ 2RS N NR 130 230 40 3 242 3.5 165 147 6.13
6228 ZZ 2RZ 2RS N NR 140 250 42 3 262 3.5 165 125 7.45
6230 ZZ 2RZ 2RS - - 150 270 45 3 - - 174 137 9.40
6232 ZZ 2RZ 2RS - - 160 290 68 3 - - 185 186 12.8
6234 ZZ 2RZ 2RS - - 170 310 52 4 - - 212 224 15.8
6236 ZZ 2RZ 2RS - - 180 320 52 4 - - 227 241 15.9
6238 ZZ 2RZ 2RS - - 190 340 55 4 - - 255 282 22.3
6240 ZZ 2RZ 2RS - - 200 360 58 4 - - 269 310 26.7
6244 ZZ 2RZ 2RS - - 220 400 65 4 - - 310 375 37.4
6248 ZZ 2RZ 2RS - - 240 440 72 4 - - 340 430 50.5
6252 ZZ 2RZ 2RS - - 260 480 80 5 - - 400 540 67
6256 ZZ 2RZ 2RS - - 280 500 80 5 - - 400 550 70.4
6260 ZZ 2RZ 2RS - - 300 540 85 5 - - 465 670 87.8


Applications


  • Electric motors

  • Industrial pumps

  • Gearboxes and reducers

  • Conveyors

  • General manufacturing equipment


Packaging & Inquiry


Each bearing is protected with individual wrapping and a BWK branded box, then packed in export cartons. Metal shields (ZZ), rubber seals (2RS), clearance options and OEM packaging can be supplied according to order requirements. Contact BWK for model selection, quotations and delivery details.


Need More Models?


Contact BWK for more cylindrical roller bearing models, technical support and customized bearing solutions.
