UCT213
BWK
BWK-UCT213
UCT213 is a take-up bearing unit for 65 mm shaft diameter. The housing slides in a matching take-up frame to support shaft positioning and belt or chain tension adjustment.

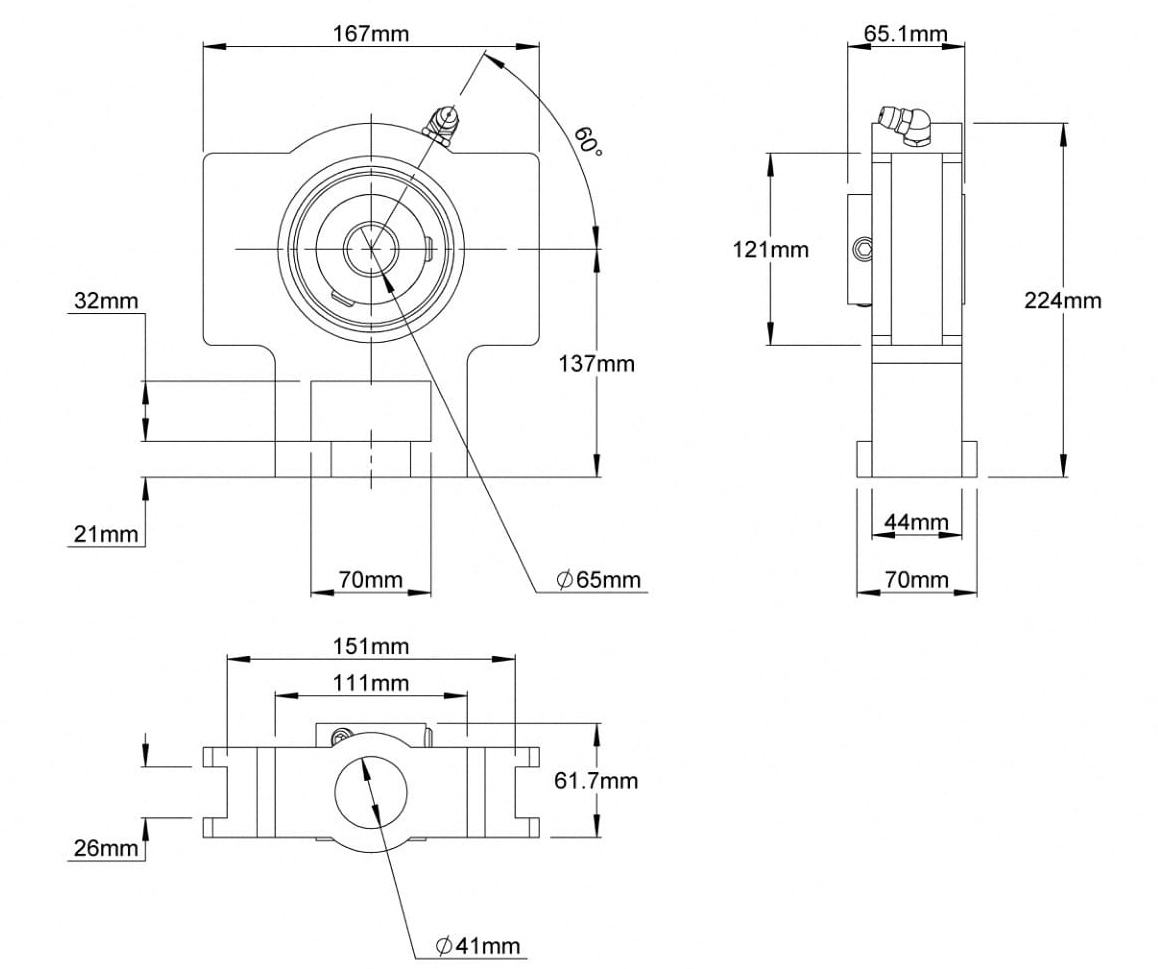

| Model | UCT213 |
| Product Type | Take-Up Bearing Unit |
| Structure | Slotted take-up housing with a wide inner ring bearing insert |
| Bearing Type | Ball Bearing |
| Bearing Seal Type | Double Sealed |
| Inner Ring Type | Wide Inner Ring |
| Mounted Type | Take-Up Bearing Units |
| Shaft Mount Type | Set Screw Locking |
| Lubrication Fitting Tap | 1/8-27 NPT |
| Bore Dia | 65 mm |
| Outside Diameter | 111 mm |
| Bearing Width | 65.1 mm |
| Hole Width | 41 mm |
| Pillow Height | 21 mm |
| Housing Height | 44 mm |
| Whole Length | 167 mm |
| Center Height | 137 mm |
| Hole Center to Center 1 | 151 mm |
| Hole Center to Center 2 | 70 mm |
| Height of Attachment Slot | 70 mm |
| Width with Locking | 121 mm |
| Width of Piloting Groove | 26 mm |
| Length of Location Slot | 224 mm |
| Length of Attachment Slot | 32 mm |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
| Temperature Range | -30° to 110 °C |
| Lubrication | Required |
| Weight | 7.08 kg |
Belt conveyors, chain drives and adjustable shaft support.
Check shaft diameter, mounting dimensions, housing clearance and lubrication access before installation.
