UCT212
BWK
BWK-UCT212

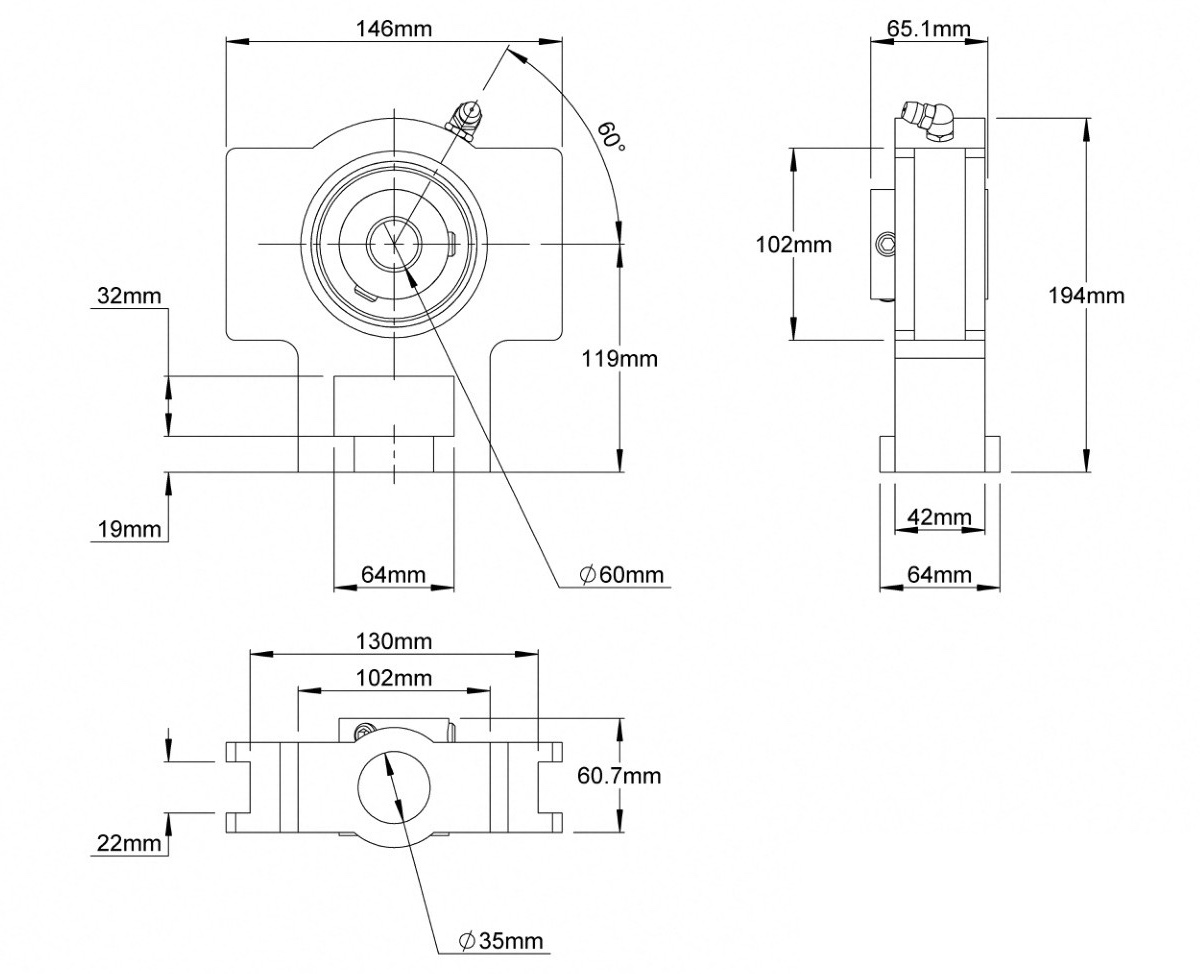

UCT212 is a take-up bearing unit for 60 mm shaft diameter. The housing slides in a matching take-up frame to support shaft positioning and belt or chain tension adjustment.
| Model | UCT212 |
| Product Type | Take-Up Bearing Unit |
| Structure | Slotted take-up housing with a wide inner ring bearing insert |
| Bearing Type | Ball Bearing |
| Bearing Seal Type | Double Sealed |
| Inner Ring Type | Wide Inner Ring |
| Mounted Type | Take-Up Bearing Units |
| Shaft Mount Type | Set Screw Locking |
| Lubrication Fitting Tap | 1/8-27 NPT |
| Bore Dia | 60 mm |
| Outside Diameter | 102 mm |
| Bearing Width | 65.1 mm |
| Hole Width | 35 mm |
| Pillow Height | 19 mm |
| Housing Height | 42 mm |
| Whole Length | 146 mm |
| Center Height | 119 mm |
| Hole Center to Center 1 | 130 mm |
| Hole Center to Center 2 | 64 mm |
| Height of Attachment Slot | 64 mm |
| Width with Locking | 102 mm |
| Width of Piloting Groove | 22 mm |
| Length of Location Slot | 194 mm |
| Length of Attachment Slot | 32 mm |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
| Temperature Range | -30° to 110 °C |
| Lubrication | Required |
| Weight | 5.17 kg |
Belt conveyors, chain drives and adjustable shaft support.
Check shaft diameter, mounting dimensions, housing clearance and lubrication access before installation.
