UCT210
BWK
BWK-UCT210

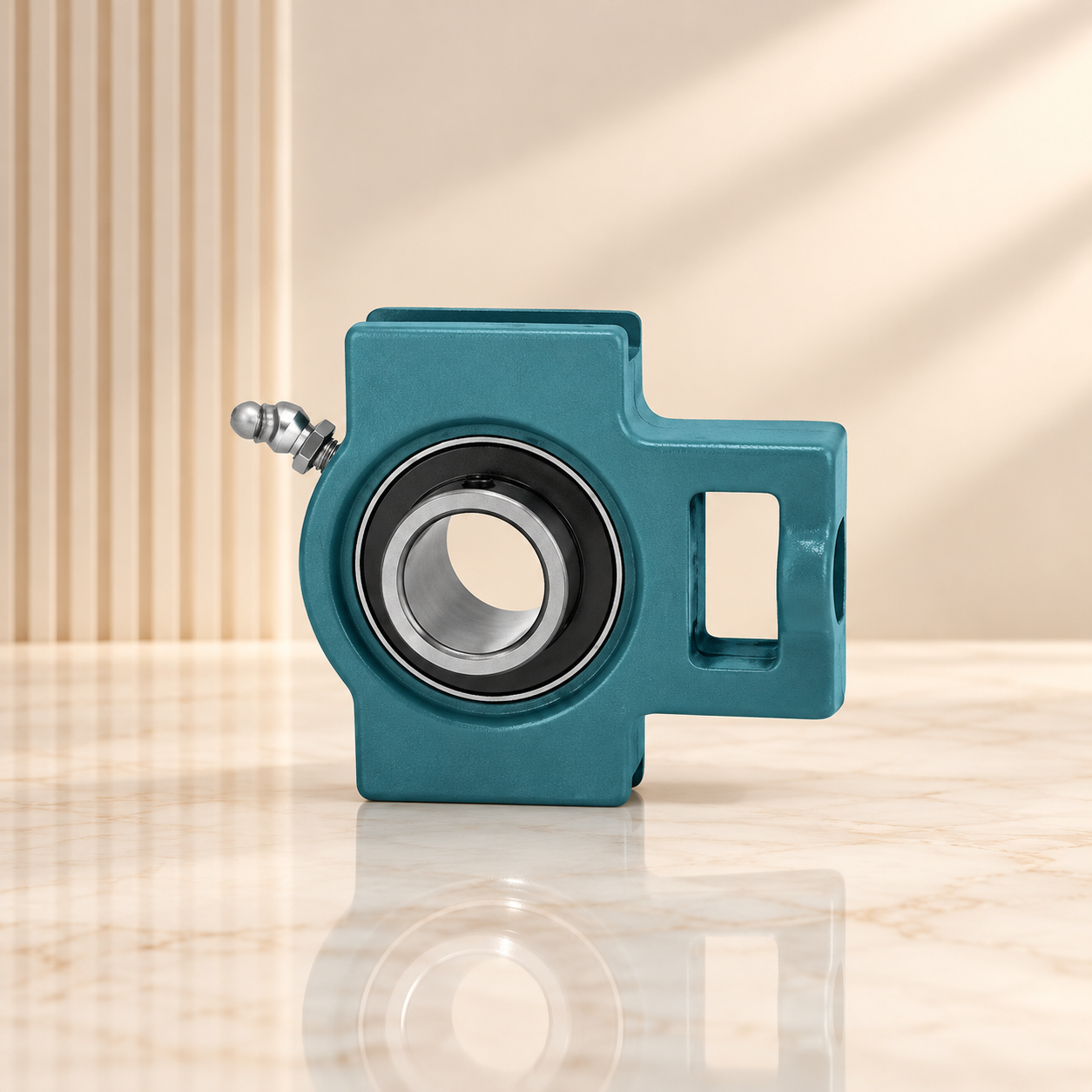

UCT210 is a take-up bearing unit for 50 mm shaft diameter. The housing slides in a matching take-up frame to support shaft positioning and belt or chain tension adjustment.
| Model | UCT210 |
| Product Type | Take-Up Bearing Unit |
| Structure | Slotted take-up housing with a wide inner ring bearing insert |
| Bearing Type | Ball Bearing |
| Bearing Seal Type | Double Sealed |
| Inner Ring Type | Wide Inner Ring |
| Mounted Type | Take-Up Bearing Units |
| Shaft Mount Type | Set Screw Locking |
| Lubrication Fitting Tap | 1/8-27 NPT |

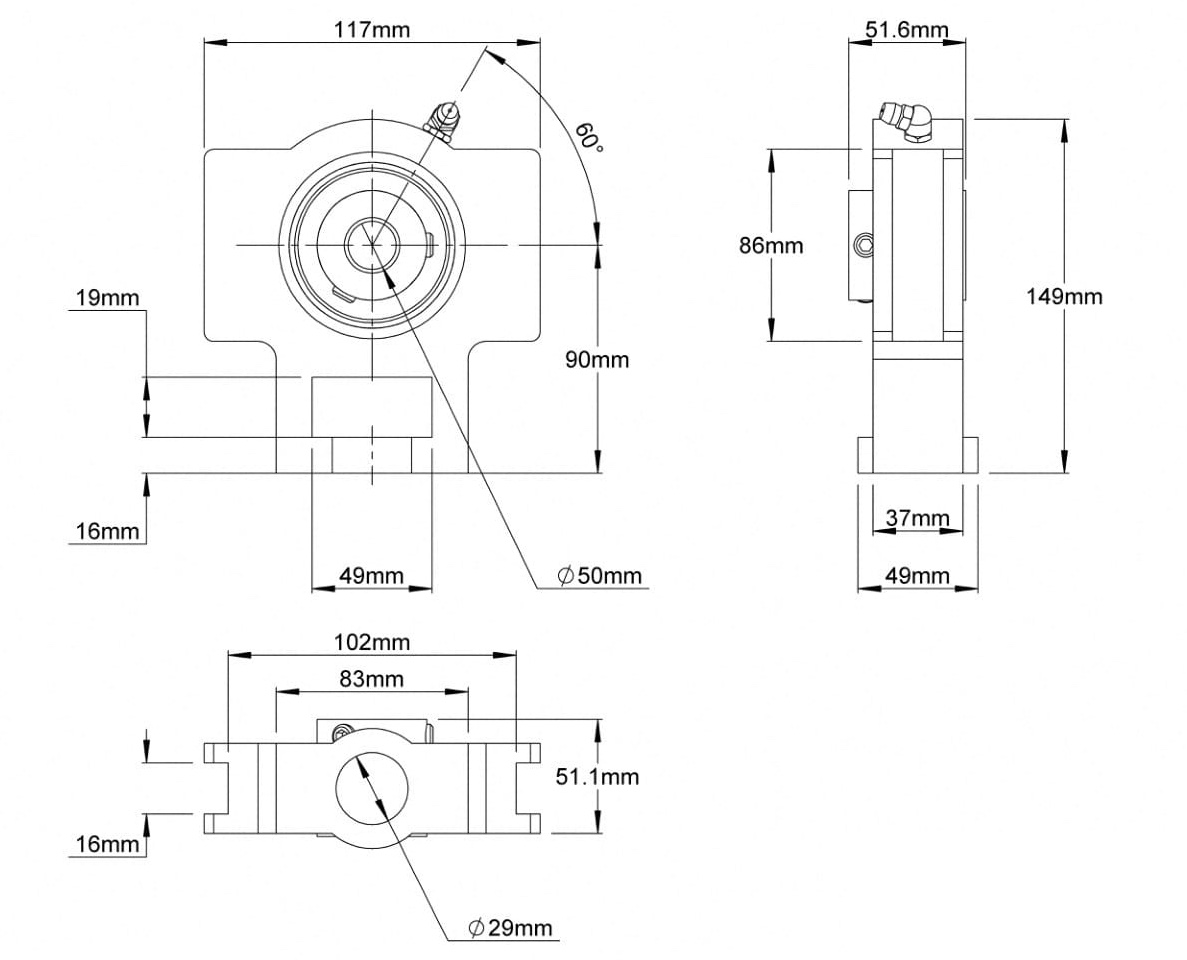

| Bore Dia | 50 mm |
| Outside Diameter | 83 mm |
| Bearing Width | 51.6 mm |
| Hole Width | 29 mm |
| Pillow Height | 16 mm |
| Housing Height | 37 mm |
| Whole Length | 117 mm |
| Center Height | 90 mm |
| Hole Center to Center 1 | 102 mm |
| Hole Center to Center 2 | 49 mm |
| Height of Attachment Slot | 49 mm |
| Width with Locking | 86 mm |
| Width of Piloting Groove | 16 mm |
| Length of Location Slot | 149 mm |
| Length of Attachment Slot | 19 mm |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
| Temperature Range | -30° to 110 °C |
| Lubrication | Required |
| Weight | 2.53 kg |
Belt conveyors, chain drives and adjustable shaft support.
Check shaft diameter, mounting dimensions, housing clearance and lubrication access before installation.
BWK provides reliable bearing solutions for industrial and agricultural applications, supported by stable supply, strict quality control and flexible OEM & ODM services.
