UCFL214
BWK
BWK-UCFL214

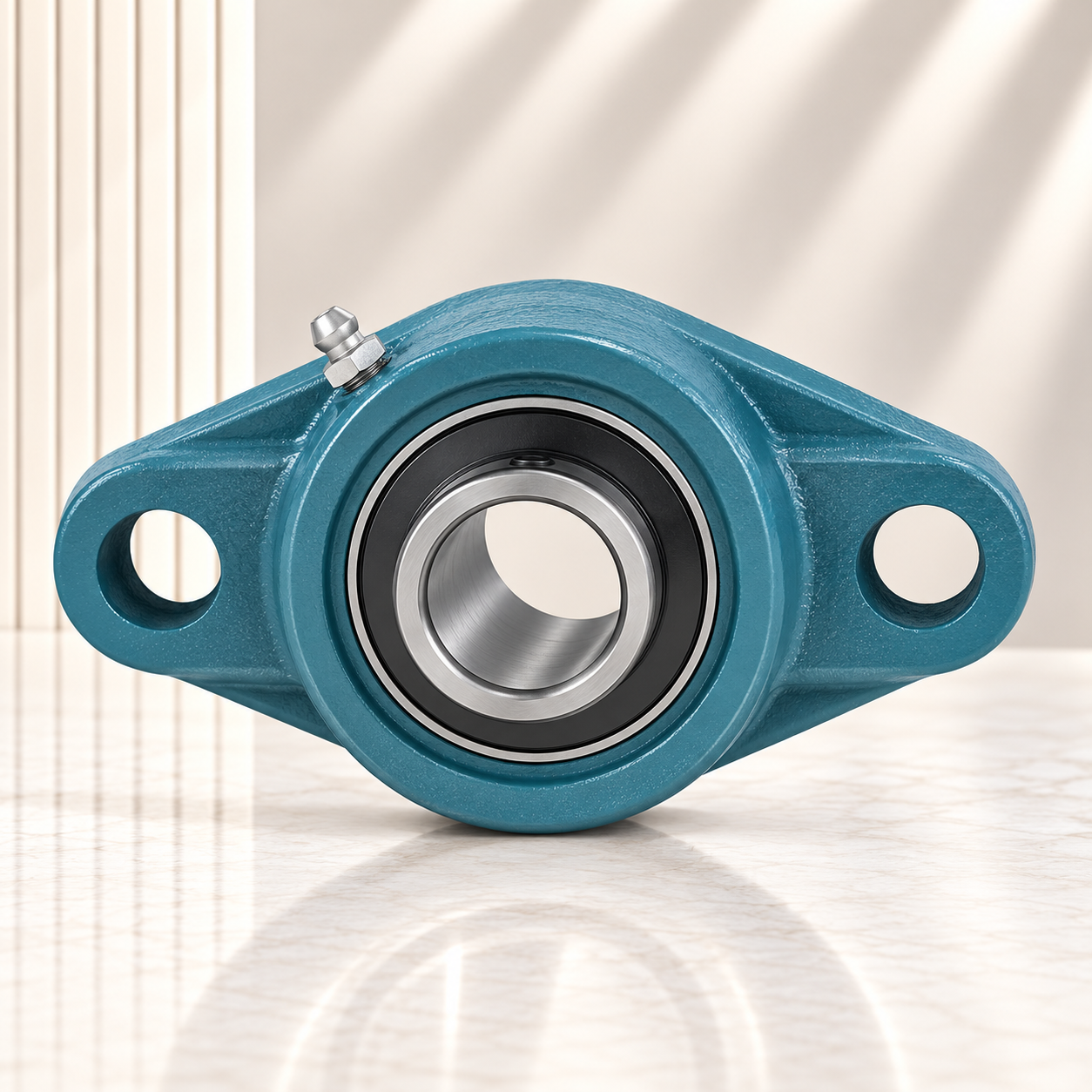

UCFL214 is a two-bolt flange bearing unit for 70 mm shaft diameter. Two mounting points provide a compact flange connection to side plates and machine frames.
| Model | UCFL214 |
| Product Type | Two-Bolt Flange Bearing Unit |
| Structure | Two-bolt oval flanged housing with a wide inner ring bearing insert |
| Bearing Type | Ball Bearing |
| Bearing Seal Type | Double Sealed |
| Inner Ring Type | Wide Inner Ring |
| Mounted Type | Flange Bearing |
| Lubrication Fitting Tap | 1/8-27 NPT |

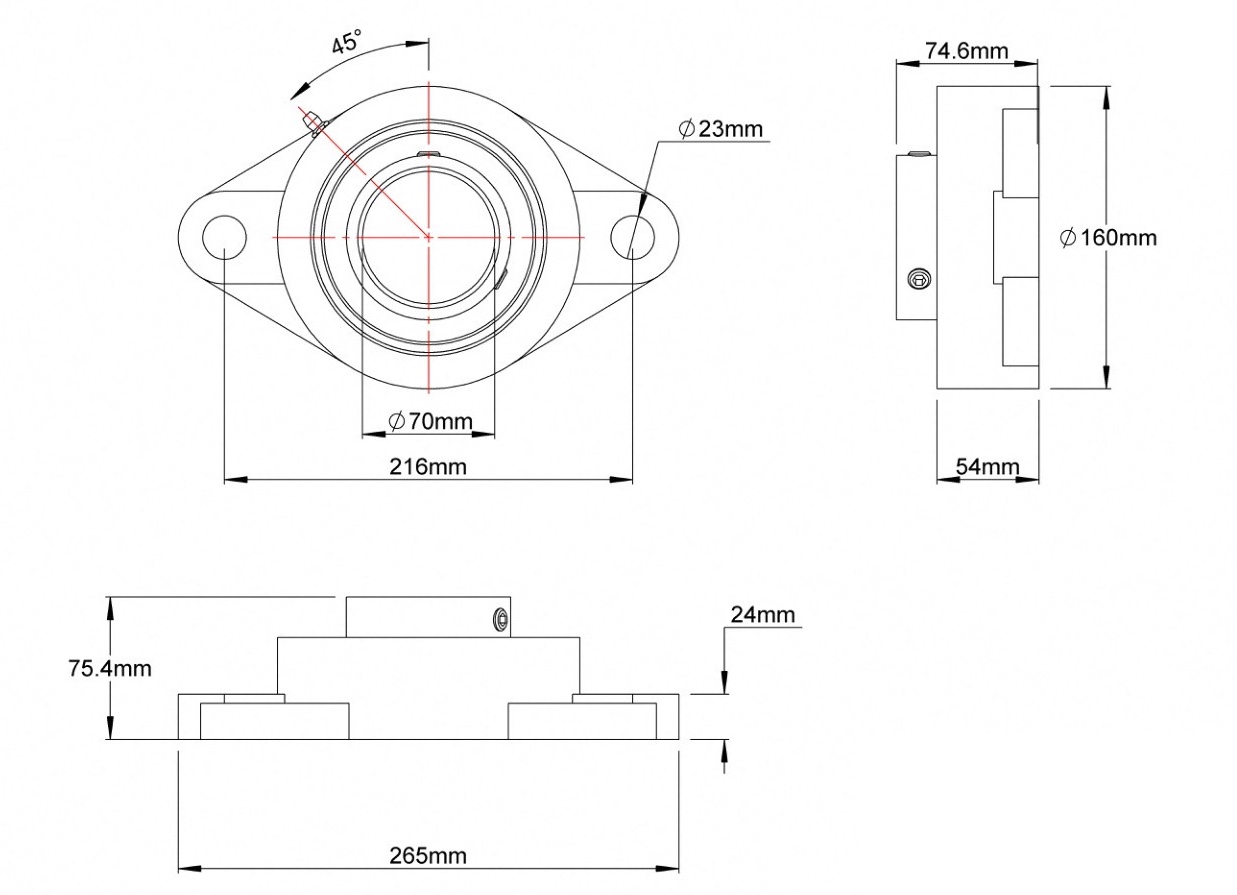

| Bore Dia | 70 mm |
| Overall Height | 75.4 mm |
| Flange Height | 24 mm |
| Housing Height | 54 mm |
| Whole Width | 160 mm |
| Whole Length | 265 mm |
| Hole Center to Center | 216 mm |
| Hole Center to Center 1 | 216 mm |
| Hole Center to Center 2 | 216 mm |
| Width of Inner Ring | 74.6 mm |
| Mounting Bolt Size | M20 |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
| Temperature Range | -30° to 110 °C |
| Lubrication | Required |
| Weight | 6.08 kg |
Conveyors, agricultural equipment and machinery with side-mounted shafts.
Check shaft diameter, mounting dimensions, housing clearance and lubrication access before installation.
