UCFL212
BWK
BWK-UCFL212

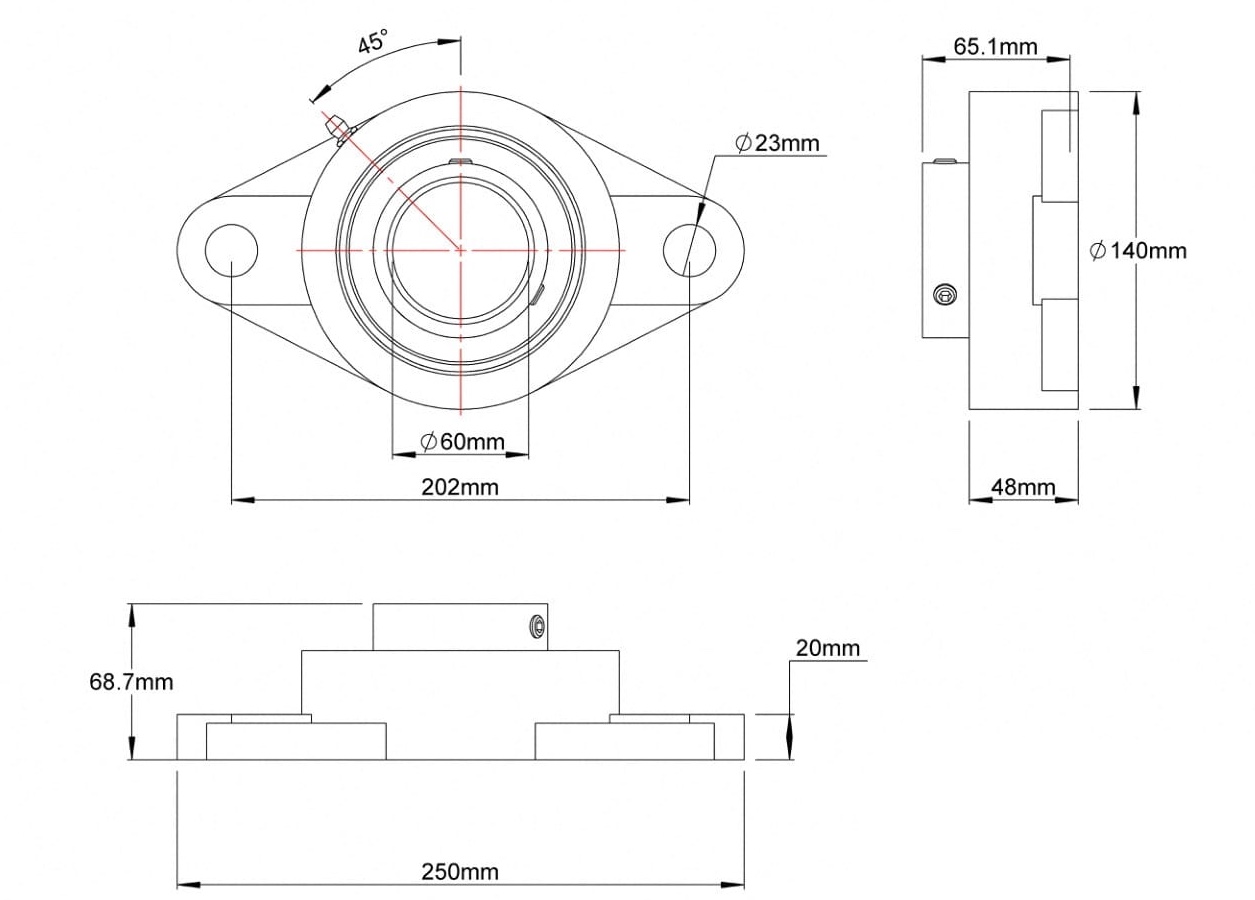

UCFL212 is a two-bolt flange bearing unit for 60 mm shaft diameter. Two mounting points provide a compact flange connection to side plates and machine frames.
| Model | UCFL212 |
| Product Type | Two-Bolt Flange Bearing Unit |
| Structure | Two-bolt oval flanged housing with a wide inner ring bearing insert |
| Bearing Type | Ball Bearing |
| Bearing Seal Type | Double Sealed |
| Inner Ring Type | Wide Inner Ring |
| Mounted Type | Flange Bearing |
| Lubrication Fitting Tap | 1/8-27 NPT |
| Bore Dia | 60 mm |
| Overall Height | 68.7 mm |
| Flange Height | 20 mm |
| Housing Height | 48 mm |
| Whole Width | 140 mm |
| Whole Length | 250 mm |
| Hole Center to Center | 202 mm |
| Hole Center to Center 1 | 202 mm |
| Hole Center to Center 2 | 202 mm |
| Width of Inner Ring | 65.1 mm |
| Mounting Bolt Size | M20 |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
| Temperature Range | -30° to 110 °C |
| Lubrication | Required |
| Weight | 4.15 kg |
Conveyors, agricultural equipment and machinery with side-mounted shafts.
Check shaft diameter, mounting dimensions, housing clearance and lubrication access before installation.
