UCFL213
BWK
BWK-UCFL213

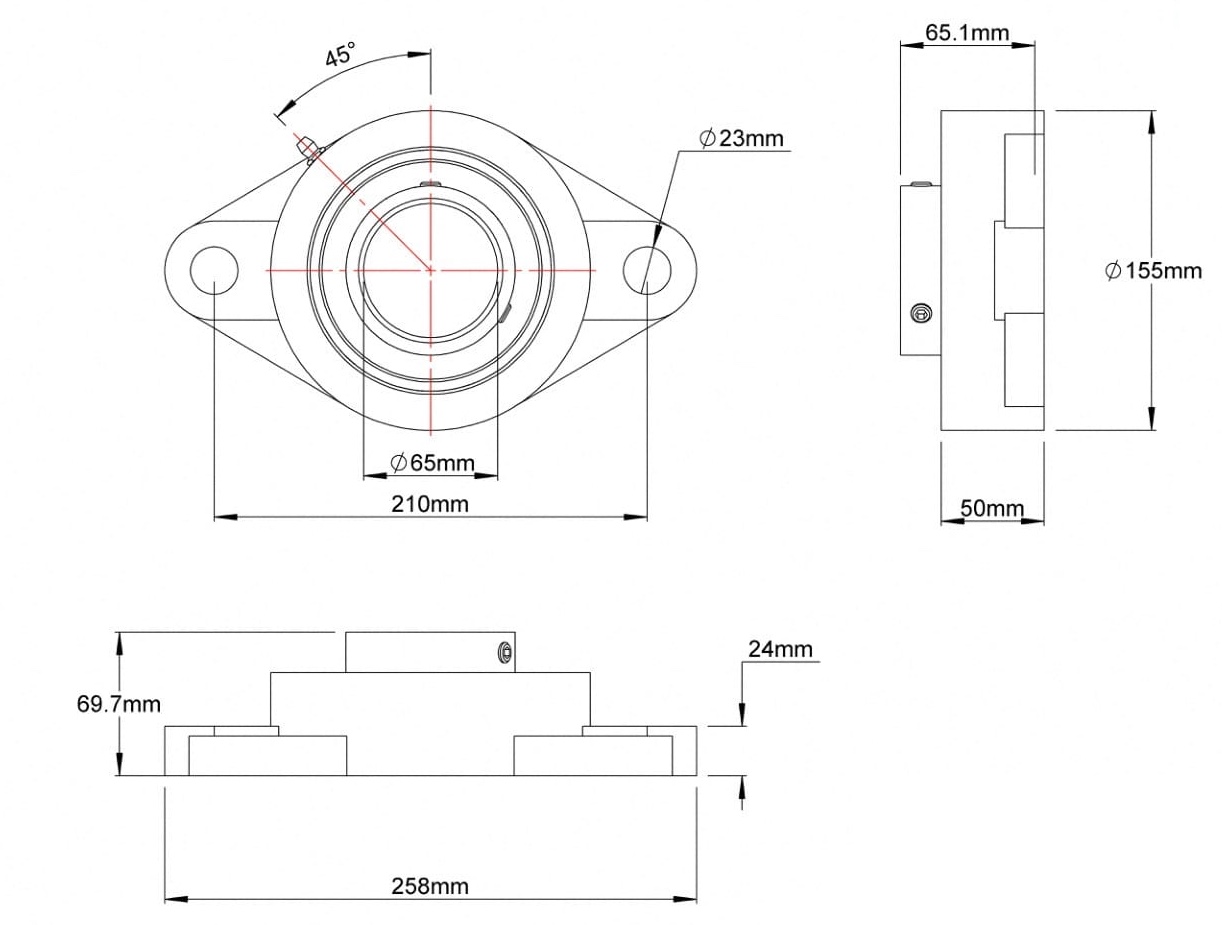

UCFL213 is a two-bolt flange bearing unit for 65 mm shaft diameter. Two mounting points provide a compact flange connection to side plates and machine frames.
| Model | UCFL213 |
| Product Type | Two-Bolt Flange Bearing Unit |
| Structure | Two-bolt oval flanged housing with a wide inner ring bearing insert |
| Bearing Type | Ball Bearing |
| Bearing Seal Type | Double Sealed |
| Inner Ring Type | Wide Inner Ring |
| Mounted Type | Flange Bearing |
| Lubrication Fitting Tap | 1/8-27 NPT |
| Bore Dia | 65 mm |
| Overall Height | 69.7 mm |
| Flange Height | 24 mm |
| Housing Height | 50 mm |
| Whole Width | 155 mm |
| Whole Length | 258 mm |
| Hole Center to Center | 210 mm |
| Hole Center to Center 1 | 210 mm |
| Hole Center to Center 2 | 210 mm |
| Width of Inner Ring | 65.1 mm |
| Mounting Bolt Size | M20 |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
| Temperature Range | -30° to 110 °C |
| Lubrication | Required |
| Weight | 5.17 kg |
Conveyors, agricultural equipment and machinery with side-mounted shafts.
Check shaft diameter, mounting dimensions, housing clearance and lubrication access before installation.
BWK provides reliable bearing solutions for industrial and agricultural applications, supported by stable supply, strict quality control and flexible OEM & ODM services.
