SX011824 SX Crossed Roller Bearing

BWK SX011824 sx crossed roller bearing, 120 mm bore x 150 mm outside diameter x 16 mm width.
Availability:
Quantity:
Inquire Add to Basket

  • SX011824

  • BWK

  • BWK-SX011824

DESCRIPTION

Product Overview

BWK SX011824 is a sx crossed roller bearing designed for accurate rotation and dependable industrial service.

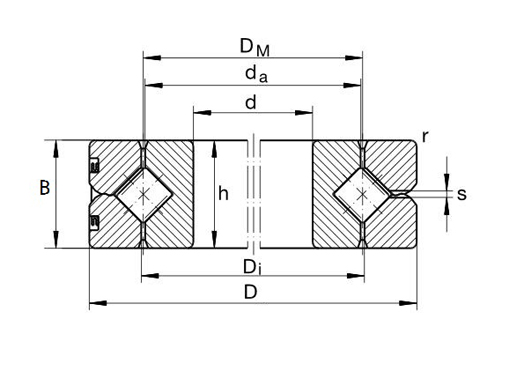

SX-cross-roller-bearing-structure

Technical Data

Model SX011824
Bore diameter 120 mm
Outside diameter 150 mm
Width 16 mm
Dynamic load rating 26 kN
Static load rating 75 kN
Mass 0.8 kg

Features and Applications

Crossed roller arrangement supports radial, axial and moment loads with compact dimensions and high rigidity.

Suitable for precision machinery, automation equipment, reducers, machine tools and other industrial bearing arrangements. Please provide the model, quantity, load, speed and operating environment when requesting a quotation.
