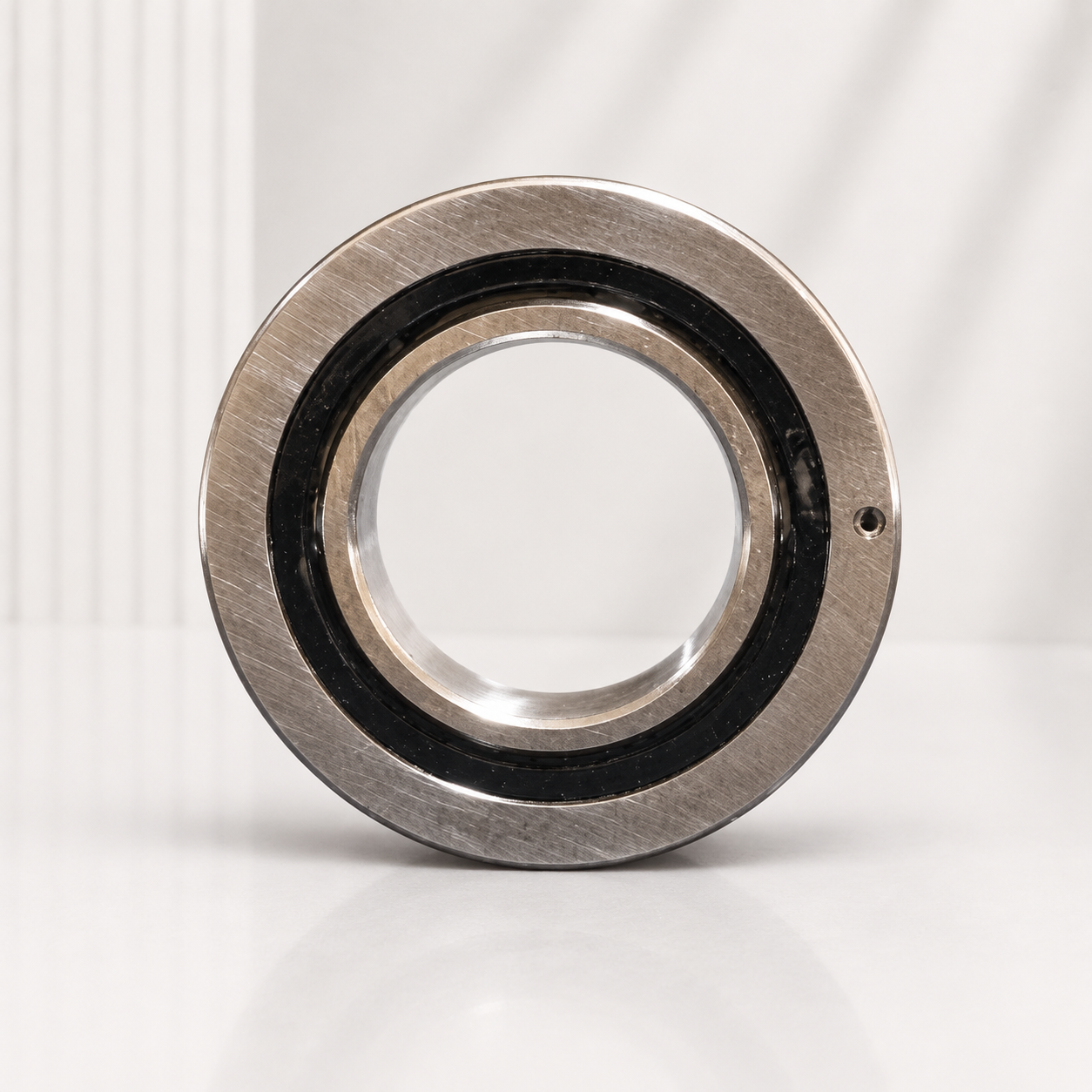

CRBH3510A Integrated Crossed Roller Bearing

BWK CRBH3510A integrated crossed roller bearing, 35 mm bore x 60 mm outside diameter x 10 mm width.
Availability:
Quantity:
Inquire Add to Basket

  • CRBH3510A

  • BWK

  • BWK-CRBH3510A

DESCRIPTION

Product Overview

BWK CRBH3510A is a integrated crossed roller bearing designed for accurate rotation and dependable industrial service.

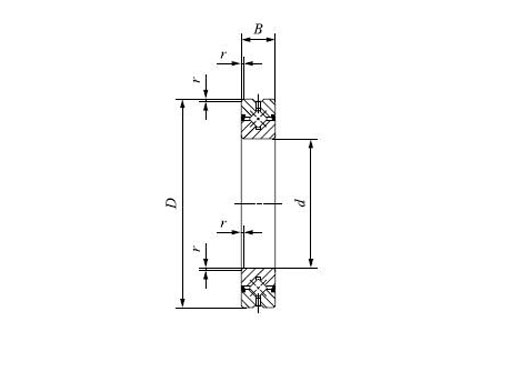

CRBH-crossed-roller-bearing-structure-1

Technical Data

Model CRBH3510A
Bore diameter 35 mm
Outside diameter 60 mm
Width 10 mm
Dynamic load rating 7.9 kN
Static load rating 9.13 kN
Mass 0.13 kg

Features and Applications

Crossed roller arrangement supports radial, axial and moment loads with compact dimensions and high rigidity.

Suitable for precision machinery, automation equipment, reducers, machine tools and other industrial bearing arrangements. Please provide the model, quantity, load, speed and operating environment when requesting a quotation.
