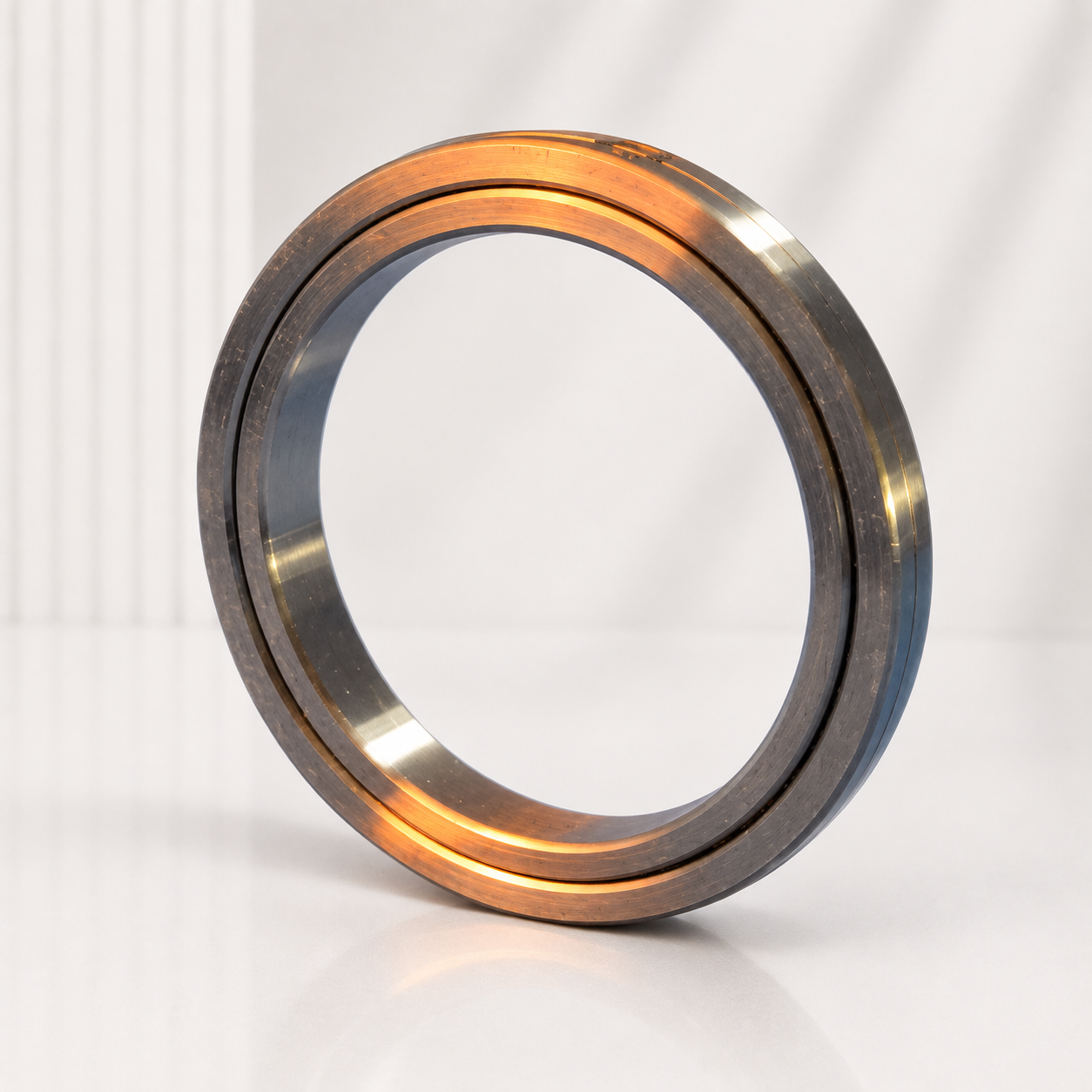

SX011820 SX Crossed Roller Bearing

BWK SX011820 sx crossed roller bearing, 100 mm bore x 125 mm outside diameter x 13 mm width.
Availability:
Quantity:
Inquire Add to Basket

  • SX011820

  • BWK

  • BWK-SX011820

DESCRIPTION

Product Overview

BWK SX011820 is a sx crossed roller bearing designed for accurate rotation and dependable industrial service.

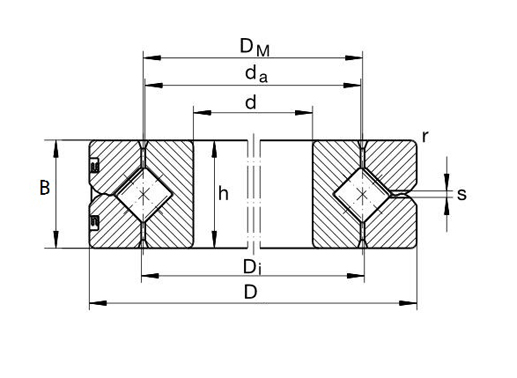

SX-cross-roller-bearing-structure

Technical Data

Model SX011820
Bore diameter 100 mm
Outside diameter 125 mm
Width 13 mm
Dynamic load rating 18 kN
Static load rating 52 kN
Mass 0.5 kg

Features and Applications

Crossed roller arrangement supports radial, axial and moment loads with compact dimensions and high rigidity.

Suitable for precision machinery, automation equipment, reducers, machine tools and other industrial bearing arrangements. Please provide the model, quantity, load, speed and operating environment when requesting a quotation.
