N NU NJ NUP Series Cylindrical Roller Bearings

BWK N, NU, NJ and NUP series cylindrical roller bearings provide high radial load capacity, rigidity and multiple locating arrangements for industrial applications.
Availability:
Quantity:
Inquire Add to Basket

  • N203, N204, N205, N206, N207, N208, N210, NU204, NU205, NU206, NU207, NU208, NJ204, NJ205, NJ206, NJ207, NUP205, NUP206, NUP207

  • BWK

Product Details

Cylindrical Roller Bearings

Cylindrical roller bearings use cylindrical rollers in line contact with the raceways, providing high radial load capacity and rigidity. Different flange arrangements are available to meet locating and non-locating bearing requirements.


Structure and Features

  • High radial load capacity

  • High rigidity under radial loads

  • Multiple N, NF, NJ, NU, NCL and NUP configurations

  • Separable designs simplify mounting and inspection

  • Available in standard and reinforced variants

Series: N, NF, NJ, NU, NCL, NUP


Applications

Suitable for electric motors, gearboxes, machine tools, industrial transmissions, pumps and other machinery requiring reliable radial support.

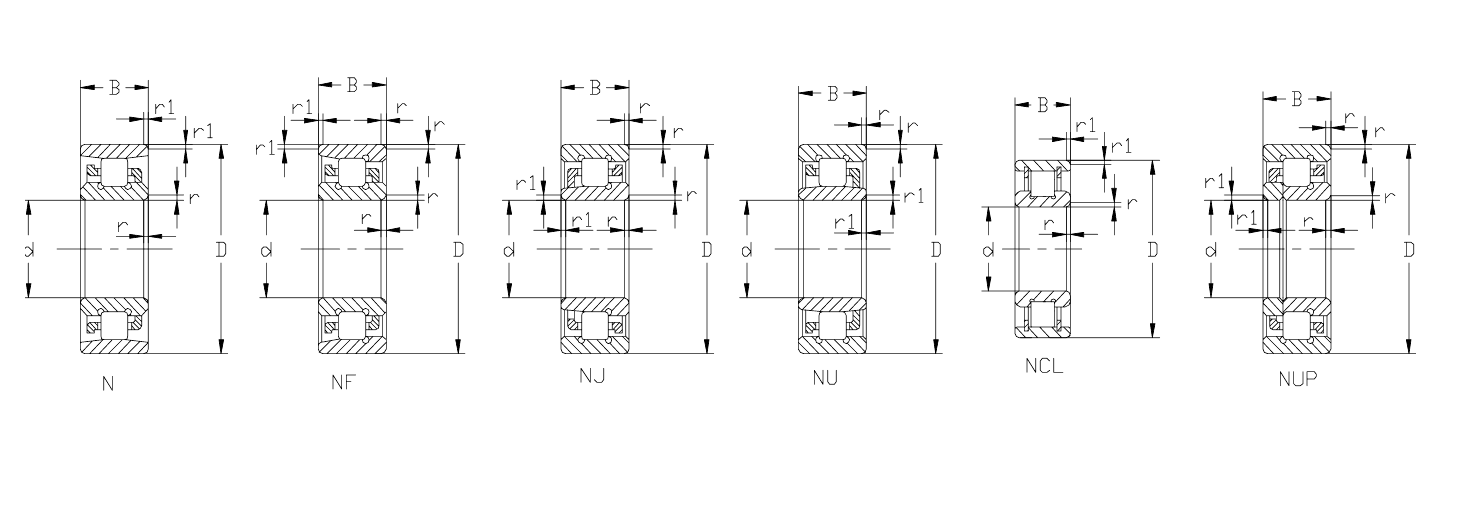

Cylindrical_Roller_Bearings_Section

Technical Data

Shaft Diameter (mm) Current Designation Original Designation d (mm) D (mm) B (mm) rsmin (mm) r1smin (mm) Dynamic Load Cr (N) Static Load Cor (N) Grease Speed (rpm) Oil Speed (rpm) Weight (kg)
17 N203 2203 17 40 12 0.6 0.3 11400 9100 16000 19000 0.07800
17 NJ203 42203 17 40 12 0.7 0.3 11400 9100 16000 19000 0.06900
17 NJ203ETN1
17 40 12 0.6 0.6 16900 13800 16000 19000 0.07158
17 NU203 32203 17 40 12 0.6 0.3 11400 9100 16000 19000 0.07000
17 NU203ETN1
17 40 12 0.6 0.3 16900 13800 16000 19000 0.06654
17 NJ2203E
17 40 16 0.6 0.3 22800 20300 13800 16400 0.09200
20 N204 2204 20 47 14 1 0.6 15800 13100 13800 16400 0.13300
20 NF204 12204 20 47 14 1 0.6 15800 13100 13800 16400 0.11000
20 NJ204 42204 20 47 14 1.1 0.7 17000 14400 13800 16400 0.14000
20 NU204 32204 20 47 14 1 0.6 15800 13100 13800 16400 0.13500
20 NU204/C3
20 47 14 1 0.6 14400 13100 13800 16400 0.10670
20 N304 2304 20 52 15 1.1 0.6 21800 17700 11400 13800 0.14470
20 NJ304 42304 20 52 15 1.1 0.6 21800 17700 11400 13800 0.15750
20 NU304 32304 20 52 15 1.1 0.6 21800 17700 11400 13800 0.15190
20 NUP304ETN1
20 52 15 1.1 0.6 31500 26800 10600 13100 0.15582
20 NJ2304ETN1
20 52 21 1.1 0.6 42000 38700 10000 13000 0.21267
25 N205 2205 25 52 15 1 0.6 17000 14900 11400 13800 0.13280
25 NF205 12205 25 52 15 1 0.6 17000 14900 11400 13800 0.13630
25 NJ205 42205 25 52 15 1 0.6 17000 14900 11400 13800 0.14840
25 NJ205E 42205E 25 52 15 1 0.6 29900 28400 10600 13100 0.13400
25 NJ205ETN1
25 52 15 1 0.6 29900 28400 10600 13100 0.13510
25 NU205 32205 25 52 15 1 0.6 17000 14900 11400 13800 0.13300
25 NU205/C3
25 52 15 1 0.6 15400 14900 11400 13800 0.13300
25 NU205E 32205E 25 52 15 1 0.6 29900 28400 10600 13100 0.13013
25 NU205ETN1
25 52 15 1 0.6 29900 28400 10600 13100 0.13107
25 NU205L
25 52 15 1 0.6 20300 18900 10600 13100 0.13774
25 NUP205 92205 25 52 15 1 0.6 17000 14900 11400 13800 0.14950
25 NCL205 102205 25 52 15 1 0.6 24600 24300 10600 13100 0.14500
25 N2205 2505 25 52 18 1.1 0.6 24100 23300 10600 13100 0.18700
25 NJ2205 C0G42505 25 52 18 1 1 24100 23300 10600 13100 0.17000
25 NU2205 32505 25 52 18 1.1 0.6 24100 23300 10600 13100 0.16530
25 NU2205/C3
25 52 18 1 0.6 21400 22800 10600 13100 0.16530
25 NU2205EV
25 52 18 1 0.6 41400 43300 9200 11400 0.16520
25 N305 2305 25 62 17 1.1 1.1 29100 25200 9200 11400 0.23430
25 N305ENTN1/C3
25 62 17 1.1 0.5 41500 37400 9200 11400 0.23340
25 NF305 12305 25 62 17 1.1 1.1 29100 25200 9200 11400 0.24330
25 NJ305 42305 25 62 17 1.1 1.1 29100 25200 9200 11400 0.24580
25 NJ305/C3 C3G42305 25 62 17 1.1 1.1 29100 25200 9200 11400 0.24580
25 NJ305E 42305E 25 62 17 1.1 1.1 41500 37400 9200 11400 0.27100
25 NJ305ETN1
25 62 17 1.1 1.1 41500 37400 8900 10500 0.24364
25 NU305 32305 25 62 17 1.1 1.1 29100 25200 9200 11400 0.23970
25 NUP305
25 62 17 1.1 1.1 29100 25200 9200 11400 0.25551
25 NUP305E
25 62 17 1.1 1.1 41500 37400 8900 10500 0.28505
25 NUP305N C0G192305 25 62 17 1.1 1.1 29100 25200 9200 11400 0.26300
25 NCL305 102305 25 62 17 1.1 1.1 39500 37800 8900 10500 0.24600
25 NU2305E
25 62 24 1.1 1.1 57000 56100 2250 4500 0.36939
25 NJ2305E
25 62 24 1.1 1.1 57000 56100 7800 9200 0.37739
25 NJ2305EV/C4 C4G532605E 25 62 24 1.1 1.1 66300 69700 7800 9200 0.36920
25 NJ2305VH
25 62 24 1.1 1.1 63000 57000 2250 4500 0.36950
25 NUP2305E
25 62 24 1.1 1.1 57000 56100 7800 9200 0.37657
25 NCL2305 102605 25 62 24 1.5 1.1 57700 61400 7800 9200 0.35800
30 NUP44494
30 61.93 23.8 1.1 1.1 63300 75500 2500 5000 0.34000
30 N206 2206 30 62 16 1 0.6 23900 22200 9400 11300 0.20380
30 N206E 2206E 30 62 16 1 0.6 36800 34400 8900 10500 0.24000
30 NJ206 42206 30 62 16 1 0.6 23900 22200 9400 11300 0.23380
30 NJ206E C0G42206E 30 62 16 1 0.6 39100 37300 8900 10500 0.23080
30 NJ206ETN1
30 62 16 1 0.6 39100 37300 8900 10500 0.23080
30 NU206 32206 30 62 16 1 0.6 23900 22200 9400 11300 0.21130
30 NU206E 32206E 30 62 16 1 0.6 39100 37300 8900 10500 0.22310
30 NUP206E 92206E 30 62 16 1 0.6 39100 37300 8900 10500 0.23540
30 NUP206E/C4
30 62 16 1 1 39100 37300 8900 10500 0.23510
30 NCL206 102206 30 62 16 1 0.6 33800 35100 8900 10500 0.22400
30 NJ2206ETN1
30 62 20 1.0 0.6 48900 49800 8900 10500 0.25792
30 NJ2206E
30 62 20 1.0 0.6 48900 49800 8900 10500 0.34970
30 NJ2206E.TVP
30 62 20 1 1 48900 49800 2500 5000 0.25792
30 N306 2306 30 72 19 1.1 1.1 35900 31900 7800 9200 0.34480
30 NJ306 42306 30 72 19 1.1 1.1 35900 31900 7800 9200 0.35240
30 NJ306E
30 72 19 1.1 1.1 53200 50200 7000 8500 0.40082
30 NJ306E/C3
30 72 19 1.1 1.1 53200 50200 7000 8500 0.40082
30 NU306 32306K 30 72 19 1.1 1.1 35900 31900 7800 9200 0.34590
30 NU306E
30 72 19 1.1 1.1 53200 50200 7800 9200 0.39282
30 NU306MN/P63
30 72 19 1.1 1.1 35100 38600 7800 9200 0.38100
30 NUP306 92306 30 72 19 1.1 1.1 35900 31900 7800 9200 0.36950
30 NFP306 22306K 30 72 19 1.1 1.1 35900 31900 7800 9200 0.37000
30 RO-694
30 80 23 1.1 1 75400 81100 7800 9200 0.60065
32 NCL6/32V
32 62 18 1.1 0.6 53400 56200 7000 8500 0.23670
32 NCL6/32V/P6
32 62 18 1.1 0.6 53400 56200 7000 8500 0.23670
32 NUP45622
32 75 20 1.1 1.1 50000 44300

0.41125
35 F-45226
35 62 19 1 0.6 50000 53000 2750 5500 0.21513
35 R356219
35 62 19 1 0.6 50000 53000 2750 5500 0.21513
35 N207 2207 35 72 17 1.1 0.6 31400 28900 8300 9900 0.29400
35 NF207 C0G12207 35 72 17 1.1 0.6 31400 28900 8300 9900 0.30150
35 NJ207 42207 35 72 17 1.1 0.6 31400 28900 8300 9900 0.29950
35 NJ207E
35 72 17 1.1 0.6 50200 50100 7800 9200 0.32630
35 NU207 32207 35 72 17 1.1 0.6 31400 28900 8300 9900 0.29130
35 NUP207 92207 35 72 17 1.1 0.6 31400 28900 8300 9900 0.32451
35 NU2207E
35 72 23 1.1 0.6 61600 65200 2200 4300 0.41860
35 NJ2207E
35 72 23 1.1 0.6 61600 65200 6600 7900 0.42960
35 NUP2207E 92507E 35 72 23 1.1 0.6 61600 65200 6600 7900 0.44440
35 N307 2307K 35 80 21 1.5 1.1 46400 43000 7700 9200 0.45760
35 NF307 12307K 35 80 21 1.5 1.1 46400 43000 7700 9200 0.47360
35 NJ307 42307 35 80 21 1.5 1.1 46400 43000 7700 9200 0.48060
35 NJ307/C3 C3G42307 35 80 21 1.5 1.1 46400 43000 1700 3400 0.48365
35 NJ307E C0G42307EK 35 80 21 1.8 1.3 66500 65300 6600 7900 0.48720
35 NJ307EV/C4YA C4G532307EK 35 80 21 1.5 1.1 78400 81000 6100 7400 0.50150
35 NU307 32307 35 80 21 1.5 1.1 46400 43000 7700 9200 0.46760
35 NU307EV1
35 80 21 1.5 1.1 71000 71000 6600 7900 0.51243
35 NUP307E 92307E 35 80 21 1.5 1.1 66500 65300 6600 7900 0.52340
35 NUP307EN
35 80 21 1.5 1.1 66500 65300 6600 7900 0.53710
35 NUP307EV
35 80 21 1.5 1.1 77500 79800 6600 7900 0.51390
35 NUP307EV/C3
35 80 21 1.5 1.1 77500 79800 6600 7900 0.51390
35 NJ2307E
35 80 31 1.5 1.1 93000 100500 6600 7900 0.78400
35 NU2307EV4
35 80 31 1.5 1.1 99000 109000 6600 7900 0.76425
35 NUP2207X1V/C9YB
35 90 23 1.1 0.6 89600 93600

0.79900
40 N208 2208 40 80 18 1.1 1.1 43700 42900 7300 8700 0.37080
40 NF208 12208 40 80 18 1.1 1.1 43700 42900 7300 8700 0.38380
40 NJ208 42208 40 80 18 1.1 1.1 43700 42900 7300 8700 0.39730
40 NU208 32208 40 80 18 1.1 1.1 43700 42900 7300 8700 0.37580
40 NUP208 92208 40 80 18 1.1 0.6 43700 42900 7300 8700 0.39850
40 NUP208/P6 E92208 40 80 18 1.1 1.1 43700 42900 7300 8700 0.39860
40 NU2208E
40 80 23 1.1 1.1 72300 77600 2000 3800 0.51782
40 NJ2208E 42508E 40 80 23 1.1 1.1 72300 77600 6600 7900 0.53082
40 NJ2208E.TVP3.C3
40 80 23 1.1 1.1 70600 75200 2000 3800 0.48967
40 NJ2208EV
40 80 23 1.1 1.1 84700 95100 6100 7400 0.51160
40 N308 2308K 40 90 23 1.5 1.5 58600 56900 6600 7900 0.63650
40 NF308 12308K 40 90 23 1.5 1.5 58600 56900 6600 7900 0.66990
40 NF308M/P6 E12308H 40 90 23 1.5 1.5 58600 56900 6600 7900 0.71990
40 NJ308 42308K 40 90 23 1.5 1.5 58600 56900 6600 7900 0.67930
40 NJ308ETN1
40 90 23 1.5 1.5 83200 81500 1500 3000 0.66350
40 NJ308/C3
40 90 23 1.5 1.5 58600 56900 1500 3000 0.67930
40 NU308 32308K 40 90 23 1.5 1.5 58600 56900 6600 7900 0.66610
40 NUP308E 92308E 40 90 23 1.5 1.5 82200 80300 6100 7400 0.69600
40 NUP308N 192308 40 90 23 1.5 1.5 58600 56900 6600 7900 0.72078
40 NUP308EN 192308E 40 90 23 1.5 1.5 82200 80300 6100 7400 0.72540
40 NUP308ENV
40 90 23 1.5 1.5 97200 101000 5900 7000 0.70250
40 NJ2308E
40 90 33 1.5 1.5 113200 121100 5900 7000 1.03700
40 NJ2308E.TVP3
40 90 33 1.5 1.5 121000 140700 1500 3000 0.95869
40 NUP2308E
40 90 33 1.5 1.5 121000 140700 1500 3000 1.06100
45 N209 2209 45 85 19 1.1 1.1 45900 46900 7100 8500 0.41880
45 NF209 12209 45 85 19 1.1 1.1 45900 46900 7100 8500 0.43670
45 NF209/C3
45 85 19 1.1 1.1 45900 46900 7100 8500 0.43670
45 NF209E
45 85 19 1.1 1.1 63000 66400 6600 7900 0.47644
45 NJ209 42209 45 85 19 1.1 1.1 45900 46900 7100 8500 0.44590
45 NJ209E
45 85 19 1.1 1.1 63000 66400 6600 7900 0.42995
45 NJ209ECP
45 85 19 1.1 1.1 63000 66400 7100 8500 0.42995
45 NJ209ETN1/C3
45 85 19 1.1
1.1 63000 66400 7100 8500
45 NU209 32209 45 85 19 1.1 1.1 45900 46900 7100 8500 0.43400
45 NUP2209E
45 85 23 1.1 1.1 76000 84500 6600 7900 0.59384
45 NUP2209EN
45 85 23 1.1 1.1 76000 84500 6600 7900 0.58764
45 N309 2309K 45 100 25 1.5 1.5 72900 69900 5900 7000 0.82390
45 NF309 12309 45 100 25 1.5 1.5 72900 69900 5900 7000 0.86840
45 NF309M/P6 E12309H 45 100 25 1.5 1.5 72900 69900 5900 7000 0.70829
45 NJ309 42309 45 100 25 1.5 1.5 72900 69900 5900 7000 0.87490
45 NJ309E
45 100 25 1.5 1.5 99200 101000 5000 6000 0.97560
45 NU309 32309K 45 100 25 1.5 1.5 72900 69900 5900 7000 0.85180
45 NU309E
45 100 25 1.5 1.5 99200 101000 5000 6000 0.97990
45 NUP309 92309 45 100 25 1.5 1.5 72900 69900 5900 7000 0.89440
45 NUP309N 192309 45 100 25 1.5 1.5 72900 69900 5900 7000 0.91000
45 NUP309NR
45 100 25 1.5 1.5 72900 69900 5900 7000 0.91477
45 NUP309EN
45 100 25 1.5 1.5 99200 101000 5000 6000 0.98110
45 NUP309ENV/C3
45 100 25 1.5 1.5 110500 116100 4500 5300 0.97417
45 NUP309ENTN1 192309E 45 100 25 1.5 1.5 99200 101000 5000 6000 0.90400
45 NJ2309E
45 100 36 1.5 1.5 138800 155700 5000 6000 1.38761
45 NU2309E
45 100 36 1.5 1.5 138800 155700 5000 6000 1.35761
50 N210 2210 50 90 20 1.1 1.1 48100 50900 6600 7900 0.47520
50 NF210
50 90 20 1.1 1.1 48100 50900 6600 7900 0.49820
50 NF210C3 C3G12210 50 90 20 1.1 1.1 48100 50900 6600 7900 0.49820
50 NF210E
50 90 20 1.1 1.1 65900 71800 6200 7300 0.53120
50 NJ210 42210 50 90 20 1.1 1.1 48100 50900 6600 7900 0.48640
50 NJ210E
50 90 20 1.1 1.1 65900 71800 6600 7900 0.53020
50 NJ210ETN/C3 C3G42210EA 50 90 20 1.1 1.1 65900 71800 6200 7300 0.48320
50 NU210 32210 50 90 20 1.1 1.1 48100 50900 6600 7900 0.47340
50 NU210/P6 E32210 50 90 20 1.1 1.1 48100 50900 6600 7900 0.47340
50 NU210ETN/C3
50 90 20 1.1 1.1 65900 71800 6200 7900 0.46820
50 NUP210EN
50 90 20 1.1 1.1 65900 71800 6200 7900 0.52420
50 NUP210E
50 90 20 1.1 1.1 65900 71800 6200 7900 0.52620
50 NU2210ETN/C3 C3G32510EA 50 90 23 1.1 1.1 79500 91500 6200 7300 0.54970
50 NJ2210ETN1
50 90 23 1.1 1.1 79500 91500 1700 3300 0.56470
50 NJ2210E.TVP3.C3
50 90 23 1.1 1.1 77600 88600 1700 3300 0.56800
50 NJ2210E.TVP3
50 90 23 1.1 1.1 77600 88600 1700 3300 0.56800
50 NUP2210E
50 90 23 1.1 1.1 79500 91500 6200 7300 0.63660
50 N310 2310 50 110 27 2 2 88900 88800 5400 6300 1.09410
50 NF310 12310 50 110 27 2 2 88900 88800 5400 6300 1.10120
50 NJ310 42310 50 110 27 2 2 88900 88800 5400 6300 1.14800
50 NJ310E
50 110 27 2 2 112100 116000 5000 6000 1.27325
50 NJ310N C0G262310K 50 110 27 2 2 88900 88800 5400 6300 1.15300
50 NU310 32310 50 110 27 2 2 88900 88800 5400 6300 1.12560
50 NUP310 92310 50 110 27 2 2 88900 88800 5400 6300 1.20000
50 NUP310NV
50 110 27 2 2 128200 144700 5400 6300 1.20800
50 NUP310ENV/C3
50 110 27 2 2 128200 144700 5000 6000 1.20800
50 NCL310 102310 50 110 27 2 2 111300 122300 5400 6300 1.17000
50 N410 2410 50 130 31 2.1 2.1 132300 127600 5400 6300 2.26000
50 NJ410 42410K 50 130 31 2.1 2.1 132300 127600 5400 6300 2.26000
55 N211 2211 55 100 21 1.5 1.1 57900 62200 6000 7100 0.62130
55 NF211 12211 55 100 21 1.5 1.1 57900 62200 6000 7100 0.65370
55 NF211E 12211E 55 100 21 1.5 1.1 86100 98700 5400 6500 0.76600
55 NJ211 42211 55 100 21 1.5 1.1 57900 62200 6000 7100 0.64510
55 NJ211/C3
55 100 21 1.5 1.1 50200 32000 6000 7100 0.64510
55 NJ211E
55 100 21 1.5 1.1 86100 98700 5400 6500 0.66160
55 NJ211ECP
55 100 21 1.5 1.1 86100 98700 5400 6500 0.66160
55 NU211 32211 55 100 21 1.5 1.1 57900 62200 6000 7100 0.63010
55 NU211E
55 100 21 1.5 1.1 86100 98700 5400 6500 0.71850
55 NUP211
55 100 21 1.5 1.1 57900 62200 6000 7100 0.64470
55 NUP211E
55 100 21 1.5 1.1 86100 98700 5400 6500 0.76060
55 NJ2211E
55 100 25 1.5 1.1 101200 121500 1500 3000 0.89360
55 NJ2211E/C3 3G42511E 55 100 25 2.0 1.1 101200 121500 5400 6500 0.89360
55 NUP2211EN/C3
55 100 25 1.5 1.1 101200 121500 5400 6500 0.89240
55 NF311E 12311E 55 120 29 2 2 138100 144300 4500 5300 1.60325
55 NF311E/C3
55 120 29 2 2 140500 147600 4500 5300 1.60145
55 NJ311E 42311E 55 120 29 2 2 138100 144300 4500 5300 1.63700
55 NUP311EN
55 120 29 2 2 140500 147600 4500 5300 1.66760
55 NUP311ENV/C3
55 120 29 2 2 153800 165700 4500 5300 1.59230
60 N212 2212 60 110 22 1.5 1.5 71800 79800 5400 6500 0.82160
60 NJ212 42212 60 110 22 1.5 1.5 71800 79800 5400 6500 0.83610
60 NJ212E
60 110 22 1.5 1.5 96200 105600 5000 6000 0.90750
60 NU212 32212 60 110 22 1.5 1.5 71800 79800 5400 6500 0.82220
60 NU212ETN1/C3
60 110 22 1.5 1.5 96200 105600 5000 6000 0.79458
60 NUP212E
60 110 22 1.5 1.5 96200 105600 5000 6000 0.92947
60 NF312 12312 60 130 31 2.1 2.1 124800 127800 4500 5400 1.86900
60 NF312E
60 130 31 2.1 2.1 153100 162100 4100 4900 2.02670
60 NF312E/C3
60 130 31 2.1 2.1 153500 164600 4100 4900 2.02670
60 NU312E
60 130 31 2.1 2.1 135900 96000 4100 4900 1.99332
60 NJ312E 42312E 60 130 31 2.1 2.1 153100 162100 4100 4900 2.03500
60 NUP312ENV/C3
60 130 31 2.1 2.1 185400 195200 4100 4900 1.89200
60 N2312E
60 130 46 2.1 2.1 225500 266700 4200 5000 2.99210
60 NJ2312E
60 130 46 2.1 2.1 225500 266700 4200 5000 2.98220
65 N213 2213 65 120 23 1.5 1.5 78800 87000 5000 6000 1.19000
65 NF213 12213 65 120 23 1.5 1.5 78800 87000 5000 6000 1.20500
65 NJ213 42213 65 120 23 1.5 1.5 78800 87000 5000 6000 1.22000
65 NJ213E
65 120 23 1.5 1.5 109900 122300 4500 5400 1.14046
65 NU213 32213 65 120 23 1.5 1.5 78800 87000 5000 6000 1.20400
65 NUP213E
65 120 23 1.5 1.5 109900 122300 5000 6000 1.16646
65 NUP213EN/C4 C4G192213E 65 120 23 1.5 1.5 109900 122300 4500 5400 1.16646
65 NU313E
65 140 33 2.1 2.1 182800 194800 4000 4700 2.37380
65 NJ313E
65 140 33 2.1 2.1 182800 195300 4000 4700 2.23005
65 NJ313E/C2
65 140 33 2 2 182800 194800 4000 4700 2.42280
65 NUP313ENV
65 140 33 2.1 2.1 212900 244900 4000 4700 2.20000
70 N214 2214 70 125 24 1.5 1.5 82100 93500 4800 5700 1.13770
70 NF214 12214 70 125 24 1.5 1.5 82100 93500 4800 5700 1.17340
70 NF214E/C3
70 125 24 1.5 1.5 123600 144500 4800 5700 1.27412
70 NF214E/YB2
70 125 24 4.3 1.5 121000 140700 4500 5400 1.27412
70 NJ214 42214 70 125 24 1.5 1.5 82100 93500 4800 5700 1.20300
70 NJ214E
70 125 24 1.5 1.5 121000 140700 4500 5400 1.27262
70 NU214 32214 70 125 24 1.5 1.5 82100 93500 4800 5700 0.84500
70 NF314E
70 150 35 2.1 2.1 207100 226000 3700 4400 2.98900
70 NU314E
70 150 35 2.1 2.1 207100 226000 3700 4400 2.94617
70 NJ314E
70 150 35 2.1 2.1 207100 226000 3700 4400 3.00217
70 NJ314E/C9
70 150 35 2.1 2.1 207100 226000 3700 4400 3.00217
70 NUP314ENV/C4
70 150 35 2.1 2.1 236300 253300 3700 4400 3.02202
70 NJ2314VH
70 150 51 2.1 2.1 335000 455000 3700 4400 4.34670
75 N215 2215 75 130 25 1.5 1.5 95100 108900 4500 5400 1.20430
75 NF215 12215 75 130 25 1.5 1.5 95100 108900 4500 5400 1.24030
75 NJ215 42215 75 130 25 1.5 1.5 95100 108900 4500 5400 1.24890
75 NU215 32215 75 130 25 1.5 1.5 95100 108900 4500 5400 1.21780
75 NU215E
75 130 25 1.5 1.5 132200 160500 4200 5000 1.32420
80 N216 2216 80 140 26 2 2 118600 141600 4200 5000 1.72000
80 NJ216 42216 80 140 26 2 2 108500 125900 4200 5000 1.79000
80 NU216 32216 80 140 26 2 2 118600 141600 4200 5000 1.75000
85 NJ217 42217 85 150 28 2 2 122800 144000 4000 4700 2.17000
Previous:
Next:
N series cylindrical roller bearings NU Bearing NJ Bearing NUP Bearing N204 NU205 NJ206 NUP207 BWK Bearing
