6310-2RS1 Sealed Deep Groove Ball Bearing

Product Overview

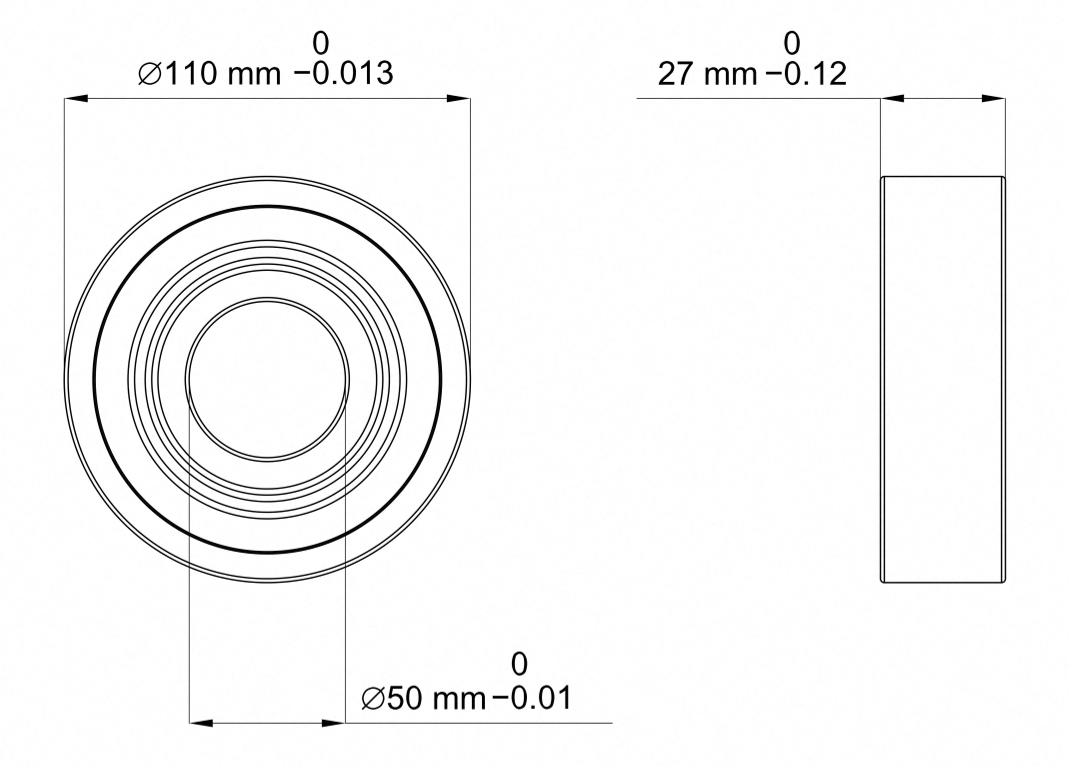

The 6310-2RS1 is a single-row, double-sealed deep groove ball bearing sized 50 × 110 × 27 mm (bore × outside diameter × width). Its chrome-steel rings, balls and cage and grease lubrication support low-friction rotation while the two-sided seals help limit contaminant ingress. This specification is intended for 50 mm shaft positions with comparatively compact 27 mm width. The listed radial dynamic and static ratings are 14,613 lbf and 8,543 lbf, respectively; verify load, fits and operating speed for the intended assembly.

Key Features

• Double-sided contact sealing helps retain grease and reduce exposure to dust in 50 mm shaft installations.

• Single-row deep groove construction supports predominantly radial loading and limited axial load in both directions.

• Chrome-steel rings, balls and cage, with normal CN radial clearance and P6 tolerance as listed in the source specifications.

• Catalog maximum speed: 4,300 rpm; specified temperature range: −30 °C to 120 °C.






Technical Specifications

Typical Applications

• industrial electric motor shafts

• centrifugal pump bearing positions

• industrial fans

• belt-driven machinery

Selection Guidance

Confirm housing and shaft fits, mounting conditions, lubrication requirements, load direction and operating speed before specifying this bearing. Application examples are illustrative and do not replace engineering selection.
