6314-2RS1 Sealed Deep Groove Ball Bearing

Product Overview

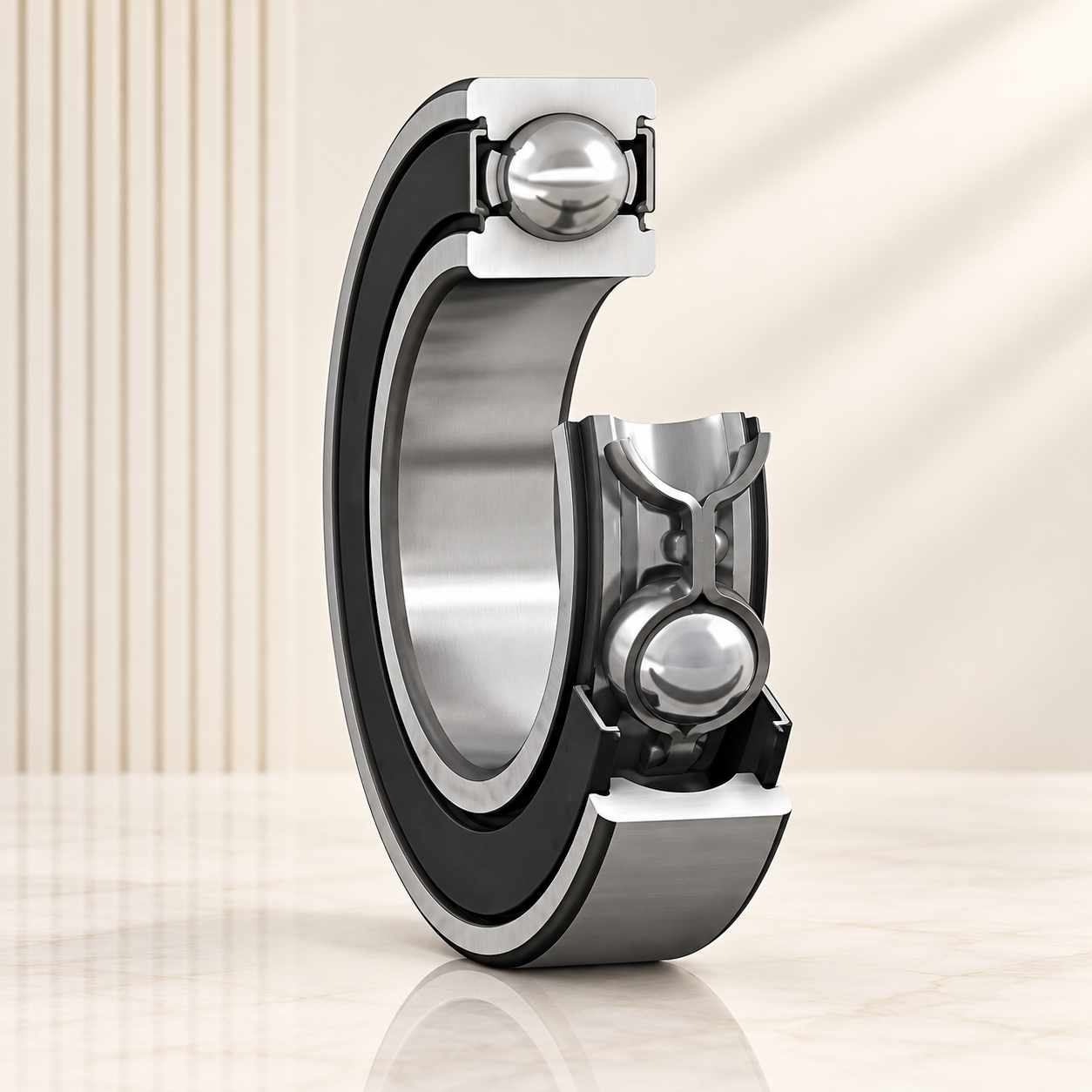

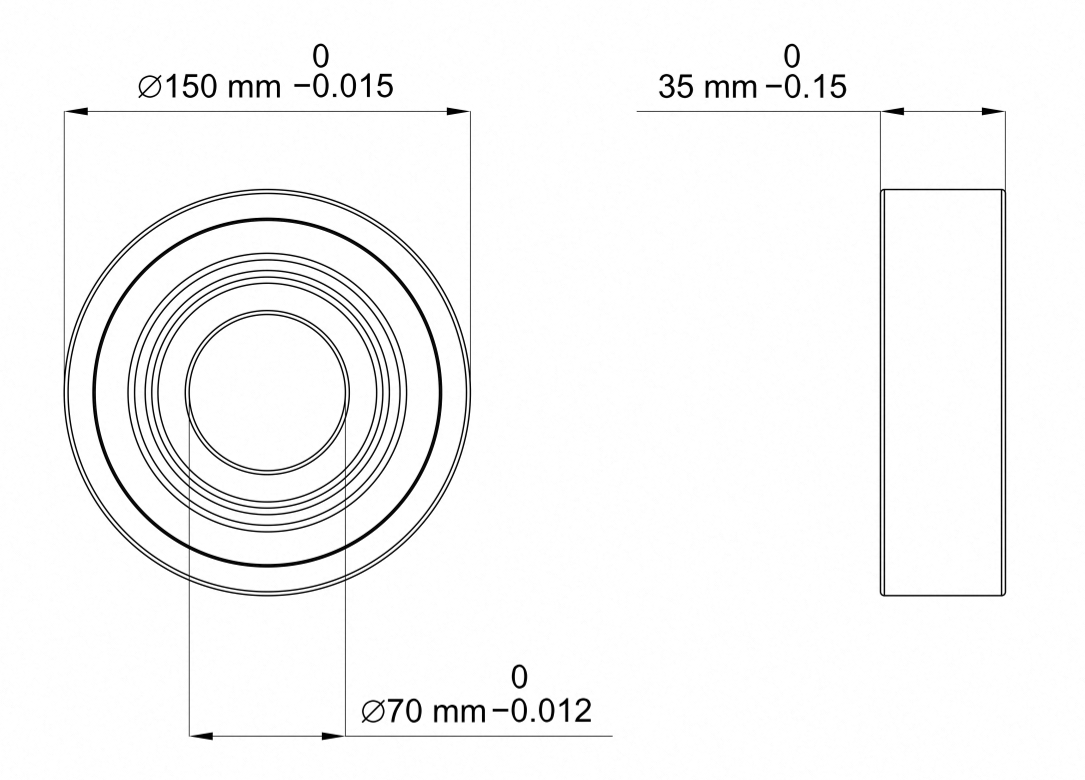

The 6314-2RS1 is a single-row, double-sealed deep groove ball bearing sized 70 × 150 × 35 mm (bore × outside diameter × width). Its chrome-steel rings, balls and cage and grease lubrication support low-friction rotation while the two-sided seals help limit contaminant ingress. This specification is intended for 70 mm shafts and machinery requiring a 150 mm outside diameter bearing location. The listed radial dynamic and static ratings are 24,954 lbf and 15,287 lbf, respectively; verify load, fits and operating speed for the intended assembly.

Key Features

• Double-sided contact sealing helps retain grease and reduce exposure to dust in 70 mm shaft installations.

• Single-row deep groove construction supports predominantly radial loading and limited axial load in both directions.

• Chrome-steel rings, balls and cage, with normal CN radial clearance and P6 tolerance as listed in the source specifications.

• Catalog maximum speed: 3,000 rpm; specified temperature range: −30 °C to 120 °C.

Technical Specifications

Typical Applications

• high-capacity industrial motor shafts

• large process fans

• heavy conveyor drive supports

• pump and power transmission installations

Selection Guidance

Confirm housing and shaft fits, mounting conditions, lubrication requirements, load direction and operating speed before specifying this bearing. Application examples are illustrative and do not replace engineering selection.
