6306-2RS1 Single Row Deep Groove Ball Bearing

6306-2RS1 single-row deep groove ball bearing with 30 mm bore, 72 mm OD, 19 mm width. Low friction and high-speed capability. Two contact seals help retain lubricant and exclude contaminants. Suitable for radial loads and moderate axial loads. Review shaft fit, loads, lubrication and working conditions before replacement.

Availability:

Quantity:



Inquire Add to Basket

Model:
6306-2RS1
Brand:
BWK
Code:
BWK-6306-2RS1

DESCRIPTION

Product Overview

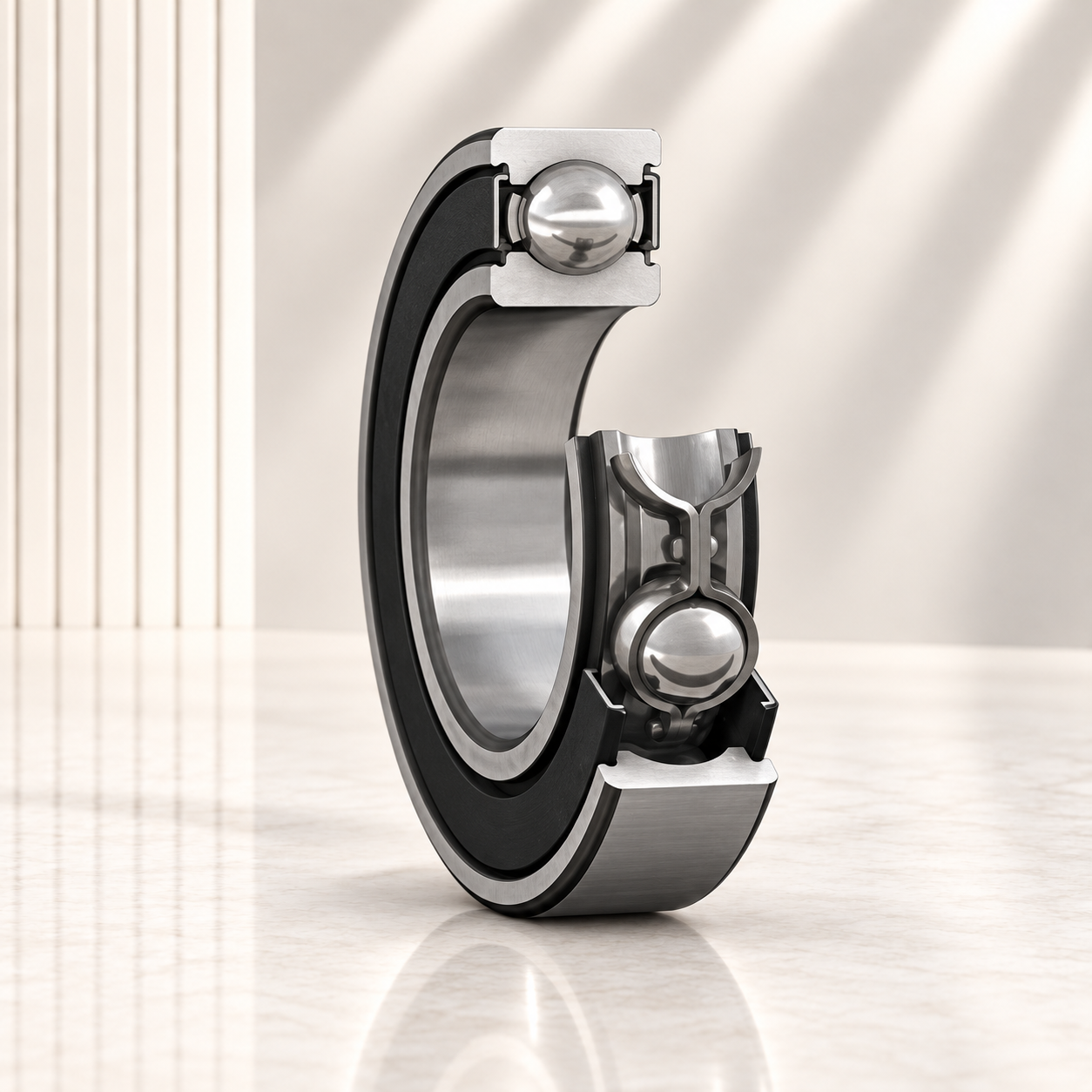

6306-2RS1 is a single-row deep groove ball bearing. Low friction and high-speed capability. Two contact seals help retain lubricant and exclude contaminants. Suitable for radial loads and moderate axial loads. It is intended for industrial replacement and OEM applications where the specified envelope dimensions and design match the operating requirement.

Key Features

Low friction and high-speed capability
Two contact seals help retain lubricant and exclude contaminants
Suitable for radial loads and moderate axial loads

6306-2RS1

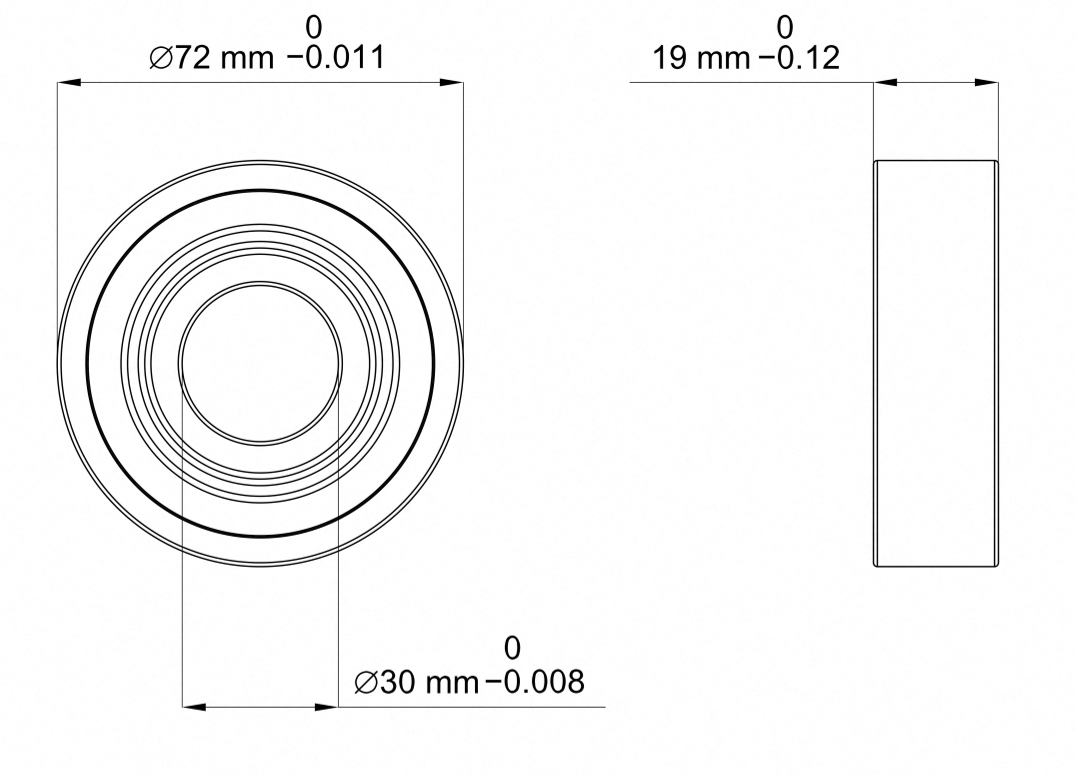

Technical Specifications

Model	6306-2RS1
Product Type	Single Row Deep Groove Ball Bearing
Bore Diameter	30 mm
Outside Diameter	72 mm
Width	19 mm
Design	Single row; deep groove raceways
Seal Type	Contact seals on both sides
Ring / Rolling Element Material	Chrome steel
Cage	Pressed steel
Lubrication	Factory grease filled

Typical Applications

Electric motors and pumps
Gearboxes and conveyors
General industrial equipment

Selection Guidance

Verify internal clearance, speed, operating temperature and seal friction before replacement.
