16271001
BWK
BWK-16271001

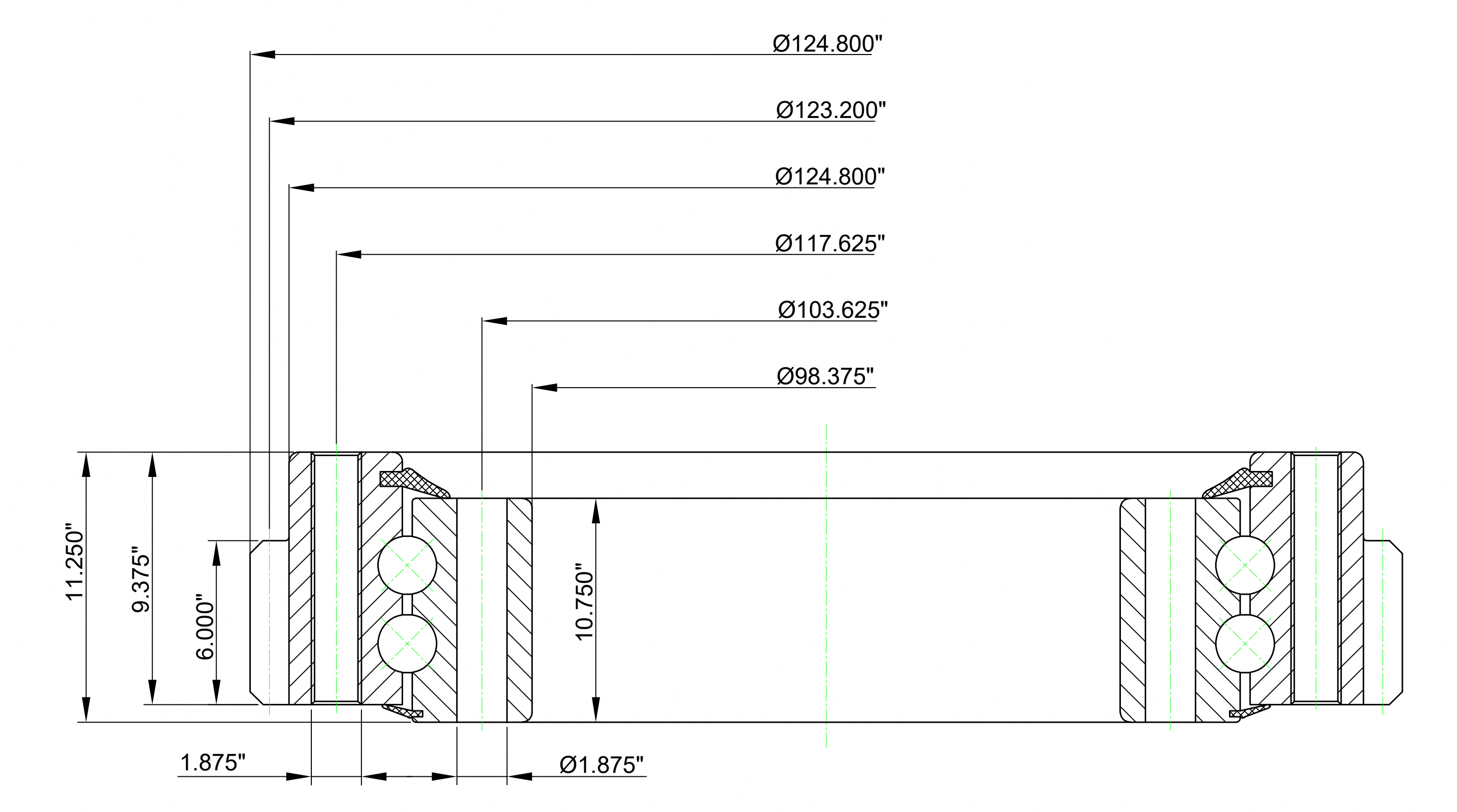

16271001 is a external gear double row ball slewing bearing with a 98.375 in bore, 124.8 in outside diameter and 11.25 in overall assembly height. Two rows of balls support combined loads and overturning moment. An external ring gear provides a pinion-drive interface.
| Model | 16271001 |
| Product Type | External Gear Double Row Ball Slewing Bearing |
| Structure | Double row ball, eight-point contact, external gear |
| Dimension Units | Inch (dimensions shown) |
| Series | DT Series |
| Gear | External Gear |
| Type | Ball |
| Bearing Type | Standard |
| Inside Diameter Of Inner Ring | 98.375 in |
| Outside Diameter Of Outer Ring | 124.8 in |
| External Diameter On Outer Ring | 124.8 in |
| Height Of Overall Bearing Assembly | 11.25 in |
| Height Of Inner Ring | 10.75 in |
| Height Of Outer Ring | 10.75 in |
| Bolt Circle In Inner Ring | 103.625 in |
| Bolt Circle In Outer Ring | 117.625 in |
| Size Holes In Inner Ring | 1.875 in |
| Size Holes In Outer Ring | 1.875 in |
| Number Holes In Inner Ring | 72 |
| Number Holes In Outer Ring | 72 |
| Pitch Diameter Of Gear | 123.2 in |
| Diametral Pitch | 1.25 |
| Number Of Gear Teeth | 154 |
| Max Gear Tooth Load Fz | 86780 lbs |
| Moment Load Rating | 14639200 ft-lbf |
| Tooth | FD |
| Ring Material Options | 42CrMo or 50Mn; confirm supplied grade when ordering |
| Ball Material | Chrome Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 10500 lbs |
| Face Width Of Gear Teeth | 6 in |
Heavy rotary platforms, lifting equipment and large industrial handling machinery.
Assess radial load, axial load and overturning moment together with speed, duty cycle and mounting stiffness. Confirm bolt circles, hole sizes, seal configuration, material grade and lubrication requirements before ordering. Mount on flat, adequately stiff surfaces and follow the specified bolt-tightening procedure. Check the gear pitch, tooth count, face width and permissible tooth load against the mating pinion.
