16269001
BWK
BWK-16269001

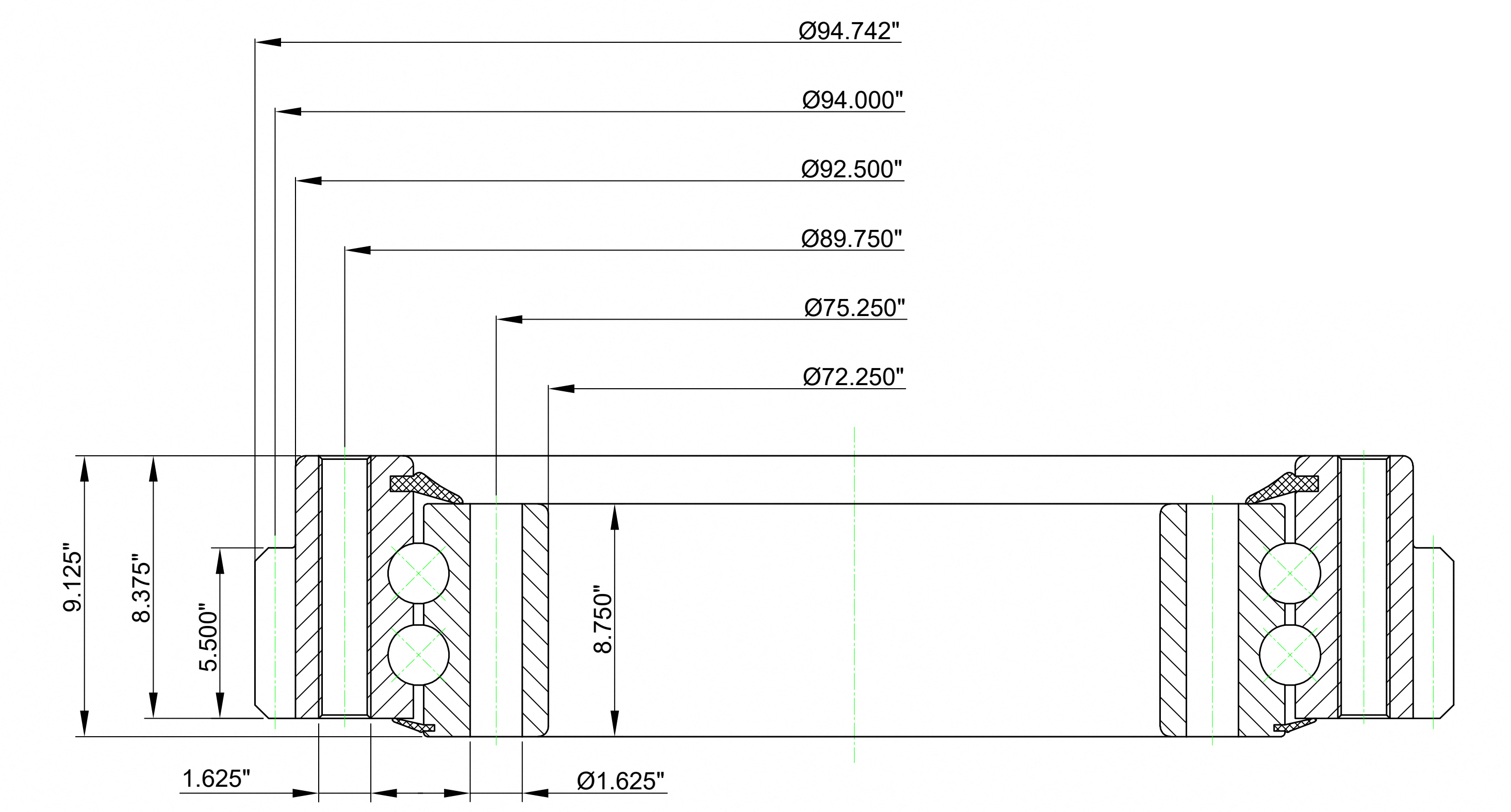

16269001 is a external gear double row ball slewing bearing with a 72.25 in bore, 94.742 in outside diameter and 9.125 in overall assembly height. Two rows of balls support combined loads and overturning moment. An external ring gear provides a pinion-drive interface.
| Model | 16269001 |
| Product Type | External Gear Double Row Ball Slewing Bearing |
| Structure | Double row ball, eight-point contact, external gear |
| Dimension Units | Inch (dimensions shown) |
| Series | DT Series |
| Gear | External Gear |
| Type | Ball |
| Bearing Type | Standard |
| Inside Diameter Of Inner Ring | 72.25 in |
| Outside Diameter Of Outer Ring | 94.742 in |
| External Diameter On Outer Ring | 92.5 in |
| Height Of Overall Bearing Assembly | 9.125 in |
| Height Of Inner Ring | 8.75 in |
| Height Of Outer Ring | 8.75 in |
| Bolt Circle In Inner Ring | 75.25 in |
| Bolt Circle In Outer Ring | 89.75 in |
| Size Holes In Inner Ring | 1.625 in |
| Size Holes In Outer Ring | 1.625 in |
| Number Holes In Inner Ring | 68 |
| Number Holes In Outer Ring | 60 |
| Pitch Diameter Of Gear | 94 in |
| Diametral Pitch | 2 |
| Number Of Gear Teeth | 188 |
| Max Gear Tooth Load Fz | 55490 lbs |
| Moment Load Rating | 8669000 ft-lbf |
| Tooth | SD |
| Ring Material Options | 42CrMo or 50Mn; confirm supplied grade when ordering |
| Ball Material | Chrome Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 5560 lbs |
| Face Width Of Gear Teeth | 5.5 in |
Heavy rotary platforms, lifting equipment and large industrial handling machinery.
Assess radial load, axial load and overturning moment together with speed, duty cycle and mounting stiffness. Confirm bolt circles, hole sizes, seal configuration, material grade and lubrication requirements before ordering. Mount on flat, adequately stiff surfaces and follow the specified bolt-tightening procedure. Check the gear pitch, tooth count, face width and permissible tooth load against the mating pinion.
