1309 ETN9
BWK
BWK-1309-ETN9

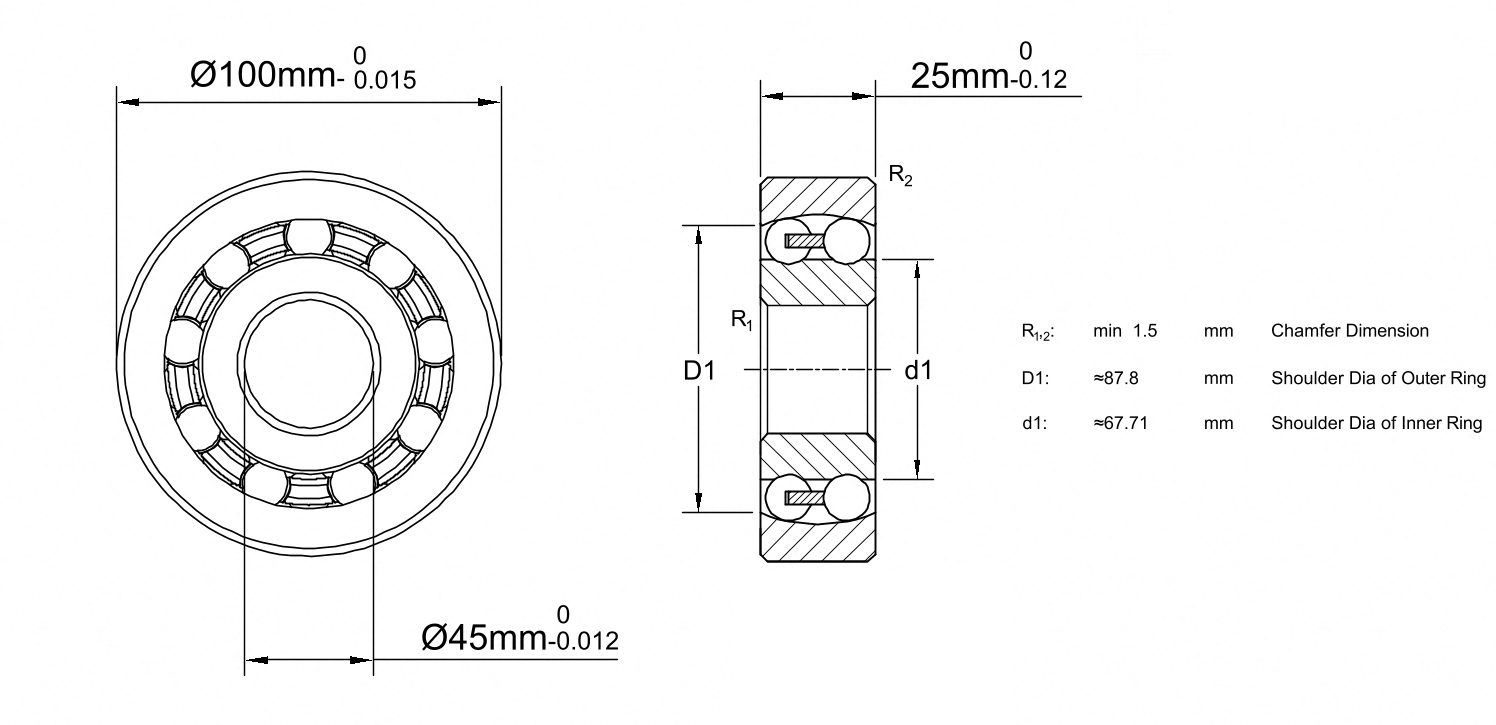

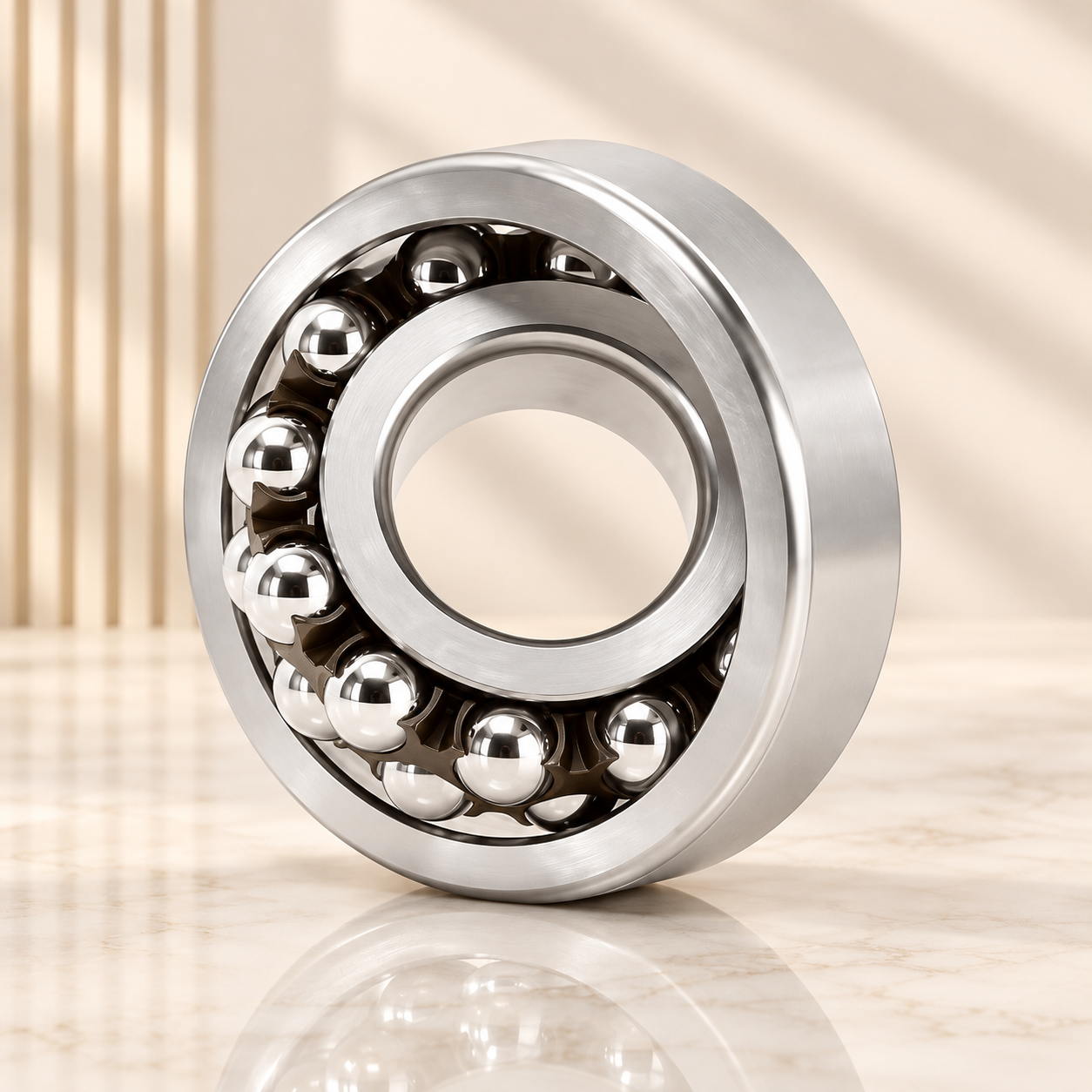

1309 ETN9 is a self-aligning ball bearing with 45 mm bore, 100 mm outside diameter and 25 mm width. Two rows of balls share a spherical outer-ring raceway, allowing the bearing to accommodate shaft deflection and mounting misalignment. The open design requires a suitable external sealing arrangement.
| Model | 1309 ETN9 |
| Product Type | Self-Aligning Ball Bearing |
| Structure | Double-row self-aligning ball bearing |
| System of Measurement | Metric |
| Bearing Type | Ball |
| Seal Type | Open |
| For Load Direction | Radial |
| Construction | Double Row |
| Bore Dia | 45 mm |
| Bore Dia Tolerance | -0.012mm to 0 |
| Outer Dia | 100 mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Width | 25 mm |
| Width Tolerance | -0.12mm to 0 |
| Chamfer Dimension | 1.5 mm |
| External Diameter On Inner Ring | 67.71 mm |
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Nylon |
| Dynamic Radial Load | 8775 lbf |
| Static Radial Load | 3015 lbf |
| Max Speed (X1000 rpm) | 8.5 |
| Temperature Range | -30° to 110 °C |
| Lubrication | Lubricated |
| Weight | 0.96 kg |
Fans, light-duty transmission shafts and equipment where mounting alignment can vary.
Check the permitted misalignment for the complete shaft arrangement, radial load, cage temperature limits and lubrication.
