1210 ETN9
BWK
BWK-1210-ETN9

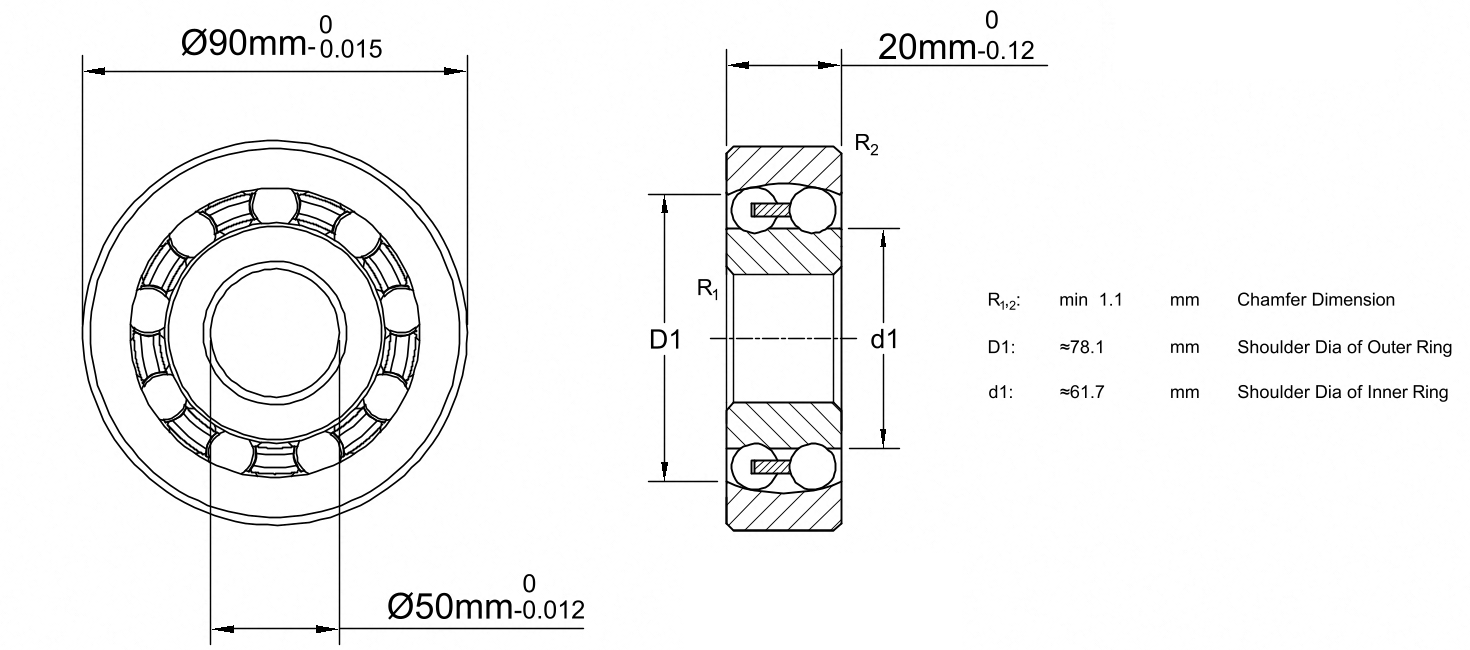

1210 ETN9 is a self aligning ball bearing with a 50 mm bore, 90 mm outside diameter and 20 mm width. Accommodates shaft deflection and mounting misalignment. It primarily supports radial load and is suited to arrangements where alignment varies in service.
| Model | 1210 ETN9 |
| Product Type | Self Aligning Ball Bearing |
| Structure | Double row balls with a spherical outer-ring raceway |
| System of Measurement | Metric |
| Bearing Type | Ball |
| Seal Type | Open |
| For Load Direction | Radial |
| Construction | Double Row |
| Bore Dia | 50 mm |
| Bore Dia Tolerance | -0.012mm to 0 |
| Outer Dia | 90 mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Width | 20 mm |
| Width Tolerance | -0.12mm to 0 |
| Chamfer Dimension | 1.1 mm |
| External Diameter On Inner Ring | 61.7 mm |
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Nylon |
| Dynamic Radial Load | 5962 lbf |
| Static Radial Load | 2059 lbf |
| Max Speed (X1000 rpm) | 10 |
| Temperature Range | -30° to 110 °C |
| Lubrication | Lubricated |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.53 kg |
Fans, conveyors, textile machinery and general shaft supports.
Match the bore and fits to the shaft. Check permissible misalignment, clearance and lubrication; use the published load ratings when assessing axial loading.
BWK provides reliable bearing solutions for industrial and agricultural applications, supported by stable supply, strict quality control and flexible OEM & ODM services.
