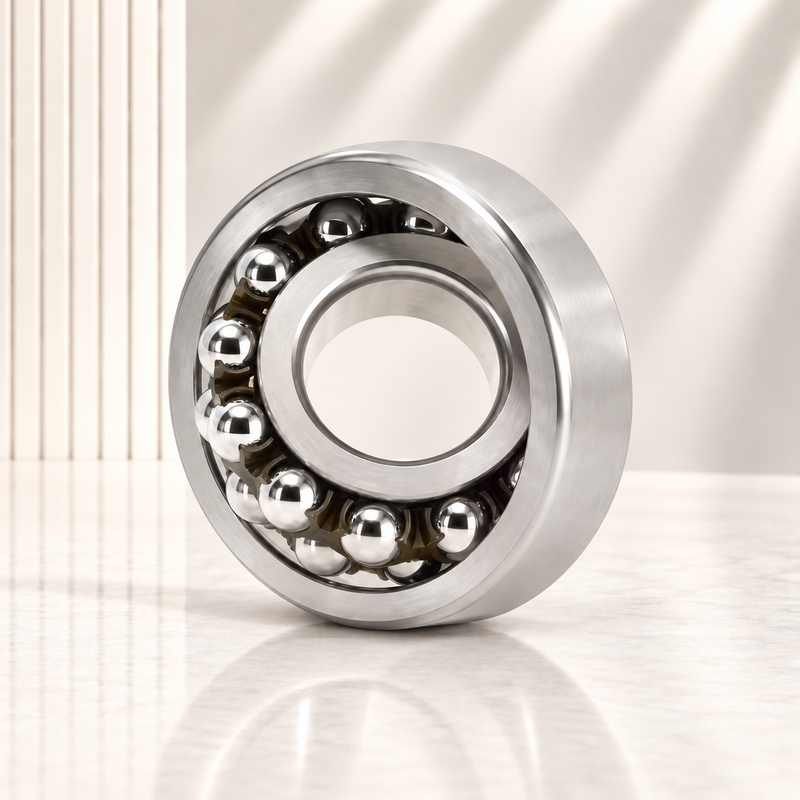

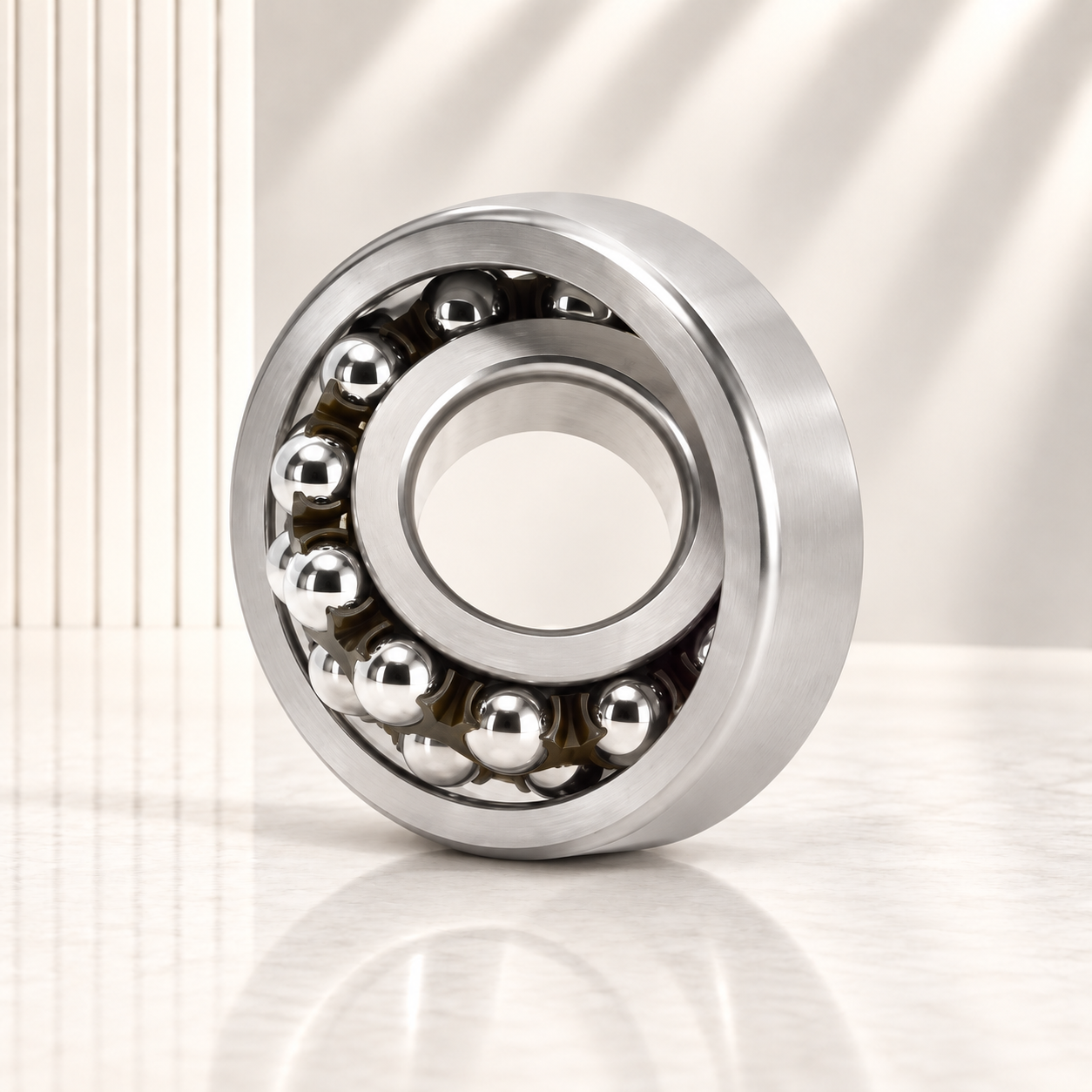

1205 ETN9 Self-Aligning Ball Bearing

1205 ETN9 self-aligning ball bearing with 25 mm bore, 52 mm OD, 15 mm width. Accommodates static and dynamic misalignment. Low friction supports high-speed operation. Double-row design provides stable radial support. Review shaft fit, loads, lubrication and working conditions before replacement.
Availability:
Quantity:
Inquire Add to Basket

  • 1205 ETN9

  • BWK

  • BWK-1205-ETN9

DESCRIPTION

Product Overview

1205 ETN9 is a self-aligning ball bearing. Accommodates static and dynamic misalignment. Low friction supports high-speed operation. Double-row design provides stable radial support. It is intended for industrial replacement and OEM applications where the specified envelope dimensions and design match the operating requirement.

Key Features

  • Accommodates static and dynamic misalignment

  • Low friction supports high-speed operation

  • Double-row design provides stable radial support

1205-ETN9

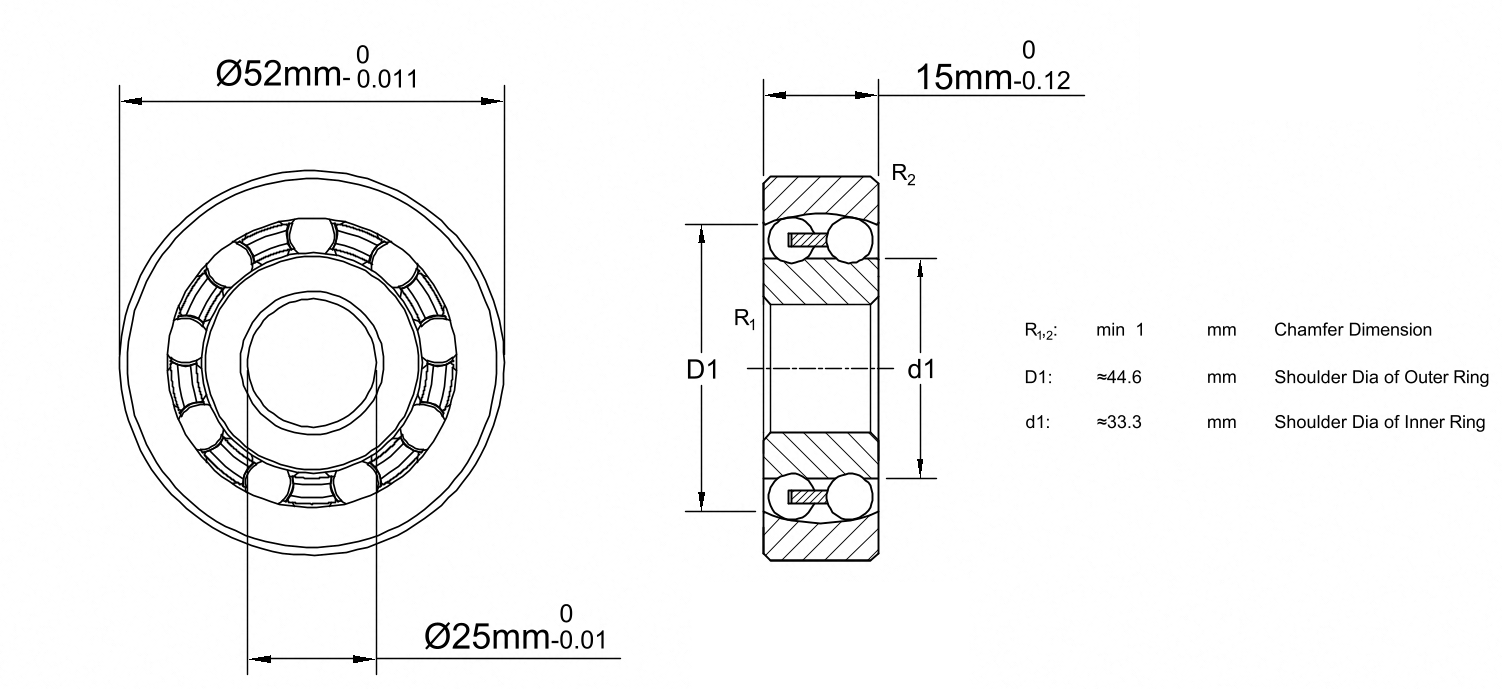

Technical Specifications

Model 1205 ETN9
Product Type Self-Aligning Ball Bearing
Bore Diameter 25 mm
Outside Diameter 52 mm
Width 15 mm
Design Double row; cylindrical bore; extended polyamide cage
Seal Type Open
Ring / Rolling Element Material Chrome steel
Cage Glass-fibre reinforced PA66
Lubrication Grease or oil

Typical Applications

  • Fans and textile machinery

  • Conveyors and agricultural equipment

  • Long shafts subject to mounting deflection

Selection Guidance

Check permissible misalignment, operating clearance, cage temperature limits and shaft fit before replacement.
