UCPA207
BWK
BWK-UCPA207

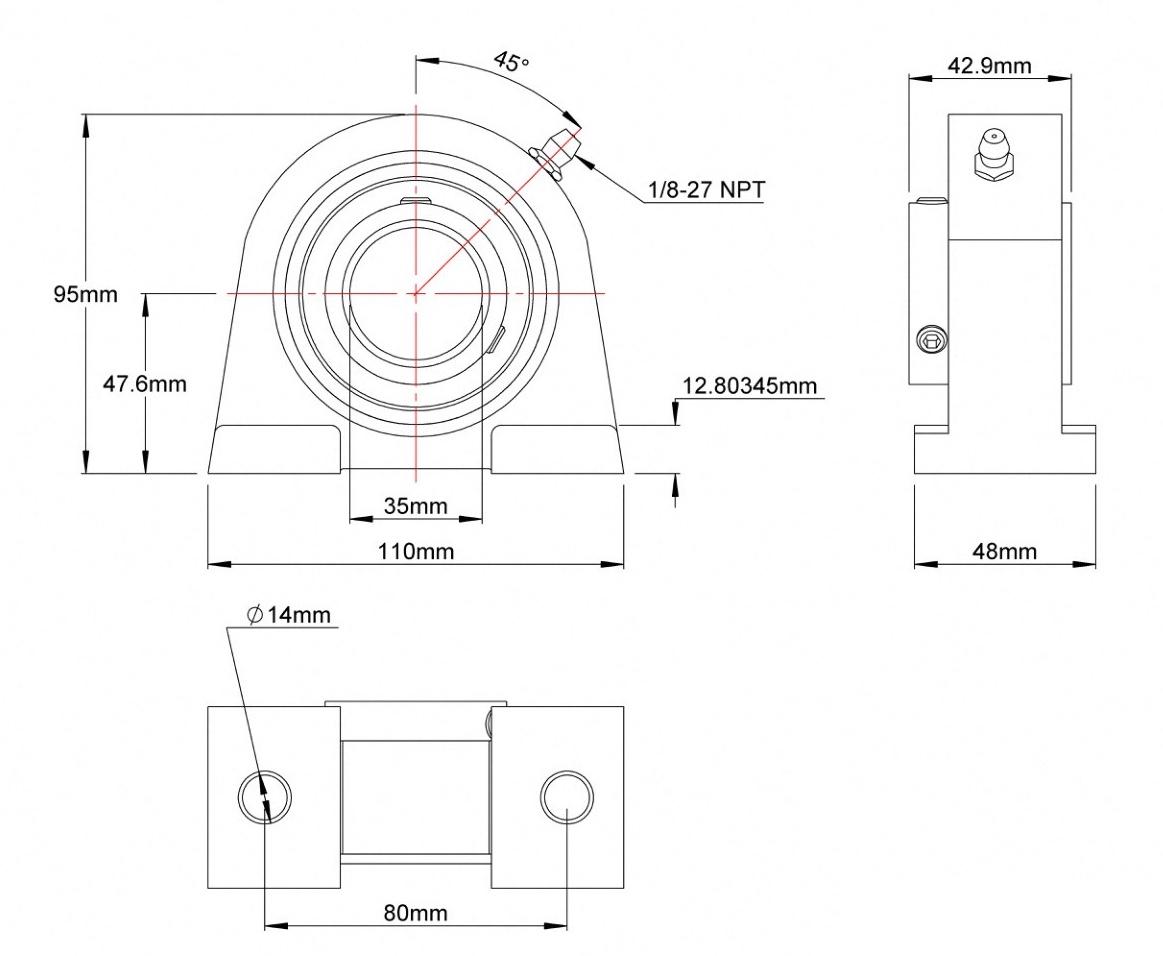

UCPA207 is a tapped base pillow block bearing for 35 mm shaft diameter. The compact tapped base supports mounting where a conventional long-foot pillow block is unsuitable.
| Model | UCPA207 |
| Product Type | Tapped Base Pillow Block Bearing |
| Structure | Compact tapped-base cast iron housing with a wide inner ring bearing insert |
| Bearing Type | Ball Bearing |
| Bearing Seal Type | Double Sealed |
| Inner Ring Type | Wide Inner Ring |
| Mounted Type | Pillow Block Bearing |
| Shaft Mount Type | Set Screw Locking |
| Lubrication Fitting Tap | 1/8-27 NPT |
| Bore Dia | 35 mm |
| Bearing Width | 42.9 mm |
| Hole Width | 20 mm |
| Hole Length | M14 |
| Overall Height | 95 mm |
| Center Height | 47.6 mm |
| Whole Length | 110 mm |
| Hole Center to Center | 80 mm |
| Width of Inner Ring | 48 mm |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Cast Iron |
| Temperature Range | -30° to 110 °C |
| Lubrication | Required |
| Weight | 1.72 kg |
Compact conveyors, packaging equipment and general shaft support.
Check shaft diameter, mounting dimensions, housing clearance and lubrication access before installation.
BWK provides reliable bearing solutions for industrial and agricultural applications, supported by stable supply, strict quality control and flexible OEM & ODM services.
