UCPA205
BWK
BWK-UCPA205

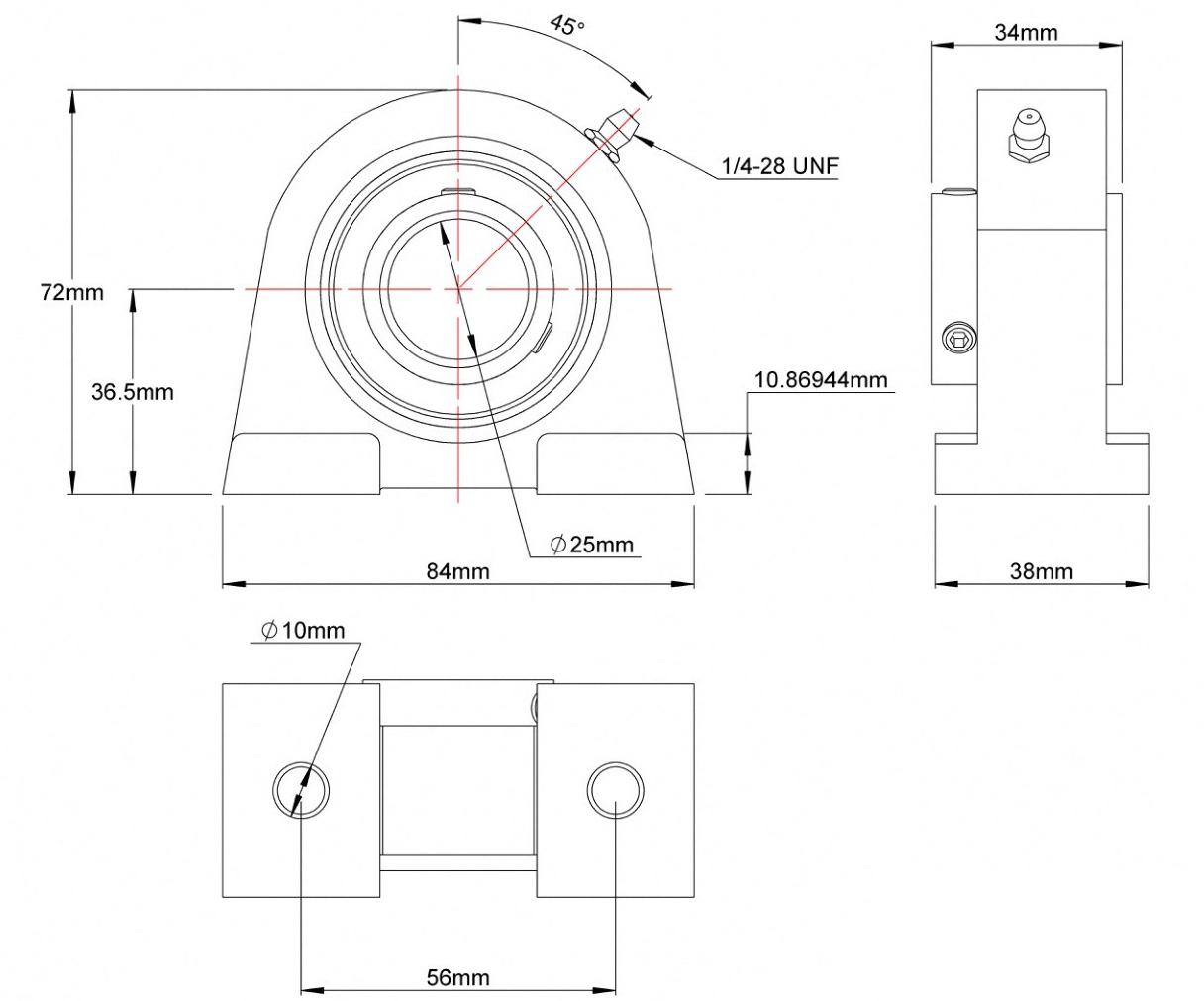

UCPA205 is a tapped base pillow block bearing for 25 mm shaft diameter. The compact tapped base supports mounting where a conventional long-foot pillow block is unsuitable.
| Model | UCPA205 |
| Product Type | Tapped Base Pillow Block Bearing |
| Structure | Compact tapped-base cast iron housing with a wide inner ring bearing insert |
| Bearing Type | Ball Bearing |
| Bearing Seal Type | Double Sealed |
| Inner Ring Type | Wide Inner Ring |
| Mounted Type | Pillow Block Bearing |
| Shaft Mount Type | Set Screw Locking |
| Lubrication Fitting Tap | 1/4-28 UNF |
| Bore Dia | 25 mm |
| Bearing Width | 34 mm |
| Hole Width | 15 mm |
| Hole Length | M10 |
| Overall Height | 72 mm |
| Center Height | 36.5 mm |
| Whole Length | 84 mm |
| Hole Center to Center | 56 mm |
| Width of Inner Ring | 38 mm |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Cast Iron |
| Temperature Range | -30° to 110 °C |
| Lubrication | Required |
| Weight | 0.82 kg |
Compact conveyors, packaging equipment and general shaft support.
Check shaft diameter, mounting dimensions, housing clearance and lubrication access before installation.
