UCFC214
BWK
BWK-UCFC214

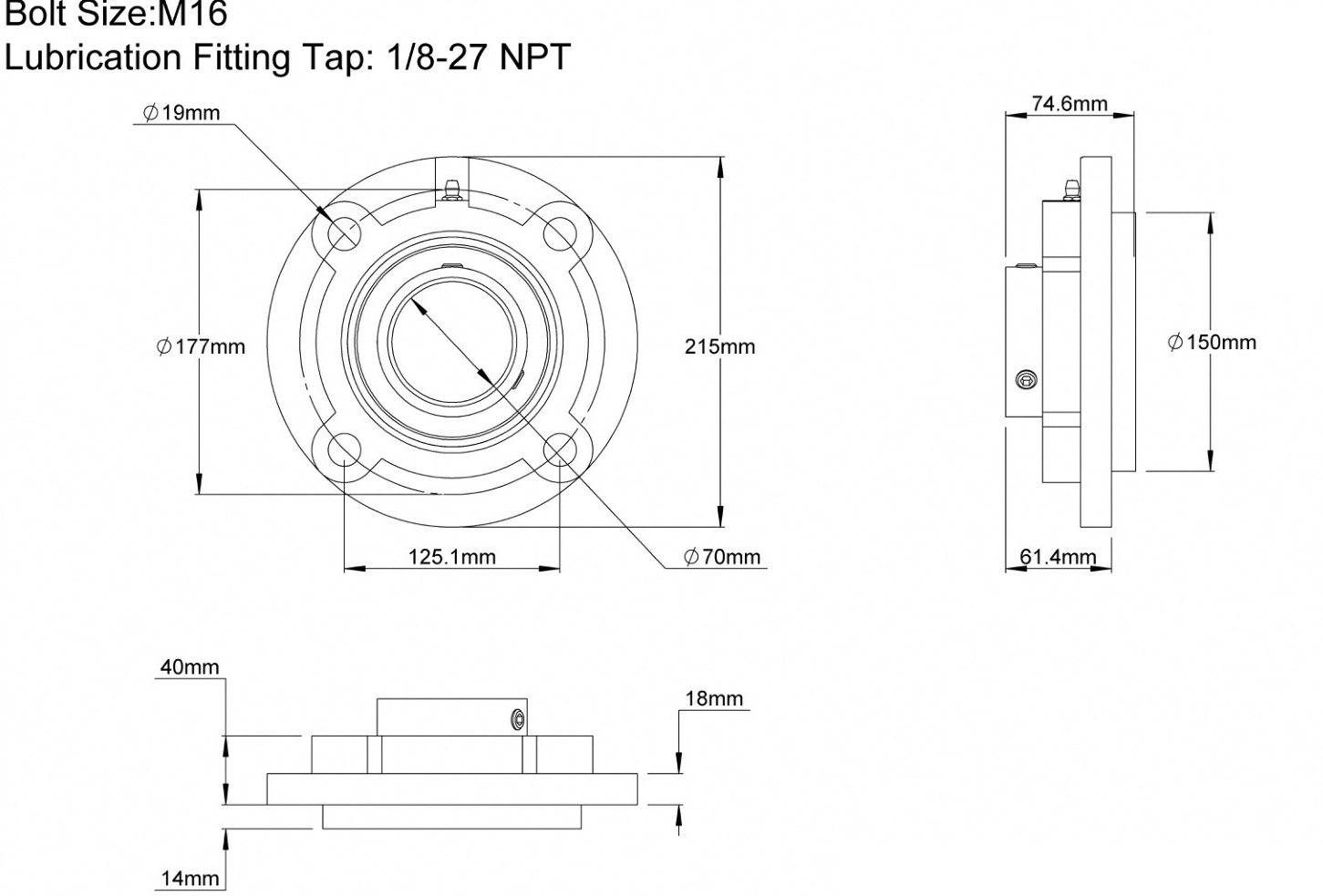

UCFC214 is a piloted round flange bearing unit for 70 mm shaft diameter. The piloted round flange helps locate the bearing housing against a mating machine surface.
| Model | UCFC214 |
| Product Type | Piloted Round Flange Bearing Unit |
| Structure | Round four-bolt piloted flanged housing with a wide inner ring bearing insert |
| Bearing Type | Ball Bearing |
| Bearing Seal Type | Double Sealed |
| Inner Ring Type | Wide Inner Ring |
| Mounted Type | Flange Bearing |
| Lubrication Fitting Tap | 1/8-27 NPT |
| Bore Dia | 70 mm |
| Outside Diameter | 177 mm |
| Hole Width | 19 mm |
| Overall Height | 61.4 mm |
| Flange Length | 150 mm |
| Flange Height | 40 mm |
| Whole Width | 215 mm |
| Whole Length | 215 mm |
| Hole Center to Center 1 | 125.1 mm |
| Hole Center to Center 2 | 14 mm |
| Width of Inner Ring | 74.6 mm |
| Width of Piloting Groove | 18 mm |
| Mounting Bolt Size | M16 |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
| Temperature Range | -30° to 110 °C |
| Lubrication | Required |
| Weight | 6.89 kg |
Conveyors, packaging machinery and equipment requiring flange location.
Check shaft diameter, mounting dimensions, housing clearance and lubrication access before installation.
