UCFC212
BWK
BWK-UCFC212

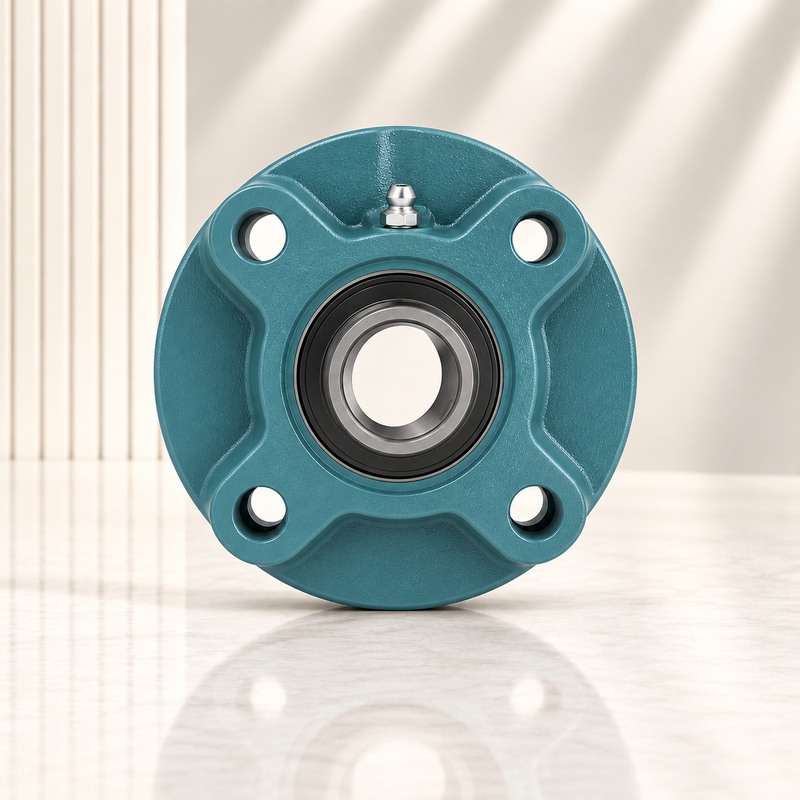

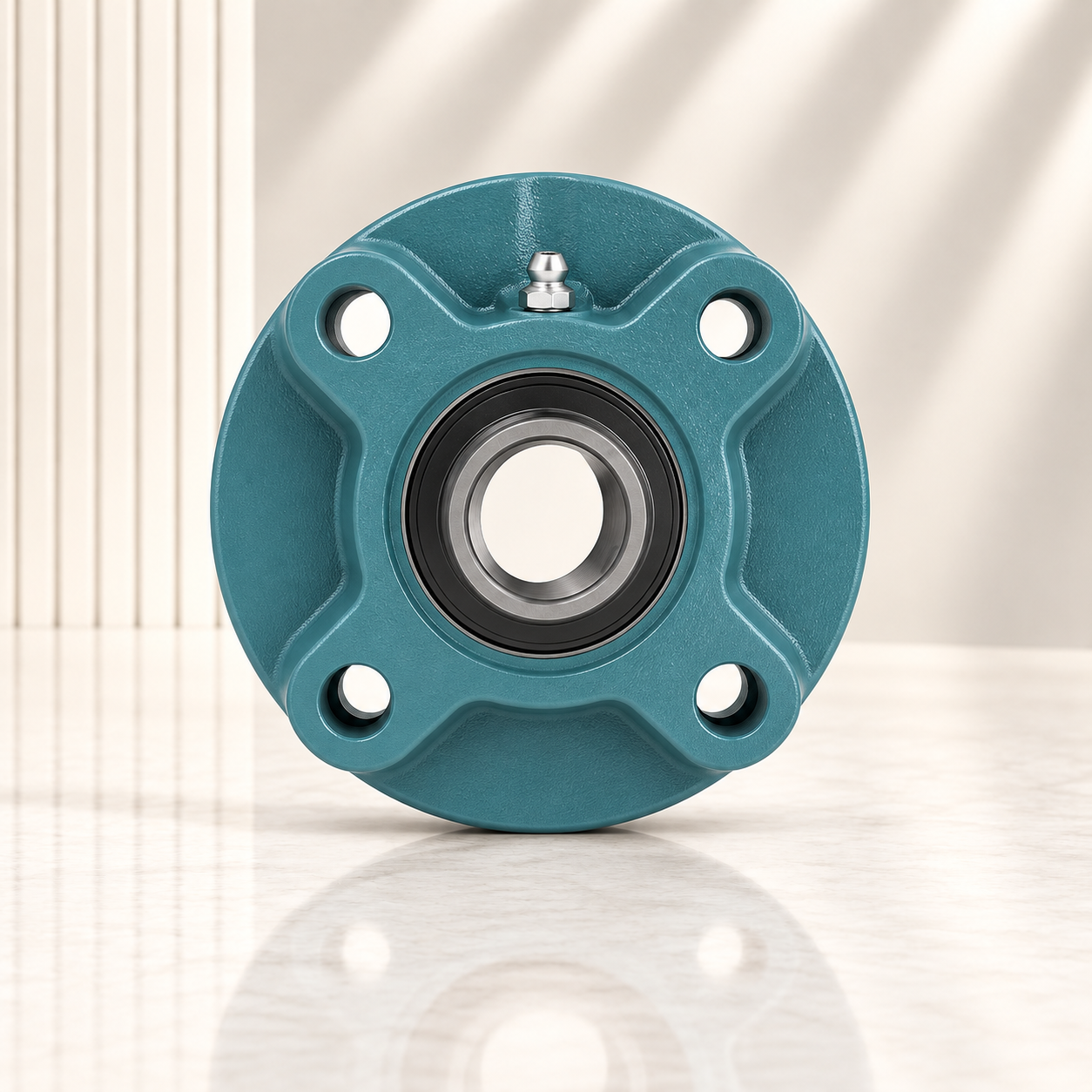

UCFC212 is a piloted round flange bearing unit for 60 mm shaft diameter. The piloted round flange helps locate the bearing housing against a mating machine surface.
| Model | UCFC212 |
| Product Type | Piloted Round Flange Bearing Unit |
| Structure | Round four-bolt piloted flanged housing with a wide inner ring bearing insert |
| Bearing Type | Ball Bearing |
| Bearing Seal Type | Double Sealed |
| Inner Ring Type | Wide Inner Ring |
| Mounted Type | Flange Bearing |
| Lubrication Fitting Tap | 1/8-27 NPT |
| Bore Dia | 60 mm |
| Outside Diameter | 160 mm |
| Hole Width | 19 mm |
| Overall Height | 56.7 mm |
| Flange Length | 135 mm |
| Flange Height | 36 mm |
| Whole Width | 195 mm |
| Whole Length | 195 mm |
| Hole Center to Center 1 | 113.1 mm |
| Hole Center to Center 2 | 12 mm |
| Width of Inner Ring | 65.1 mm |
| Width of Piloting Groove | 15 mm |
| Mounting Bolt Size | M16 |
| Bearings Material | AISI 52100 Steel |
| Housing Material | Iron |
| Temperature Range | -30° to 110 °C |
| Lubrication | Required |
| Weight | 4.45 kg |
Conveyors, packaging machinery and equipment requiring flange location.
Check shaft diameter, mounting dimensions, housing clearance and lubrication access before installation.
BWK provides reliable bearing solutions for industrial and agricultural applications, supported by stable supply, strict quality control and flexible OEM & ODM services.
