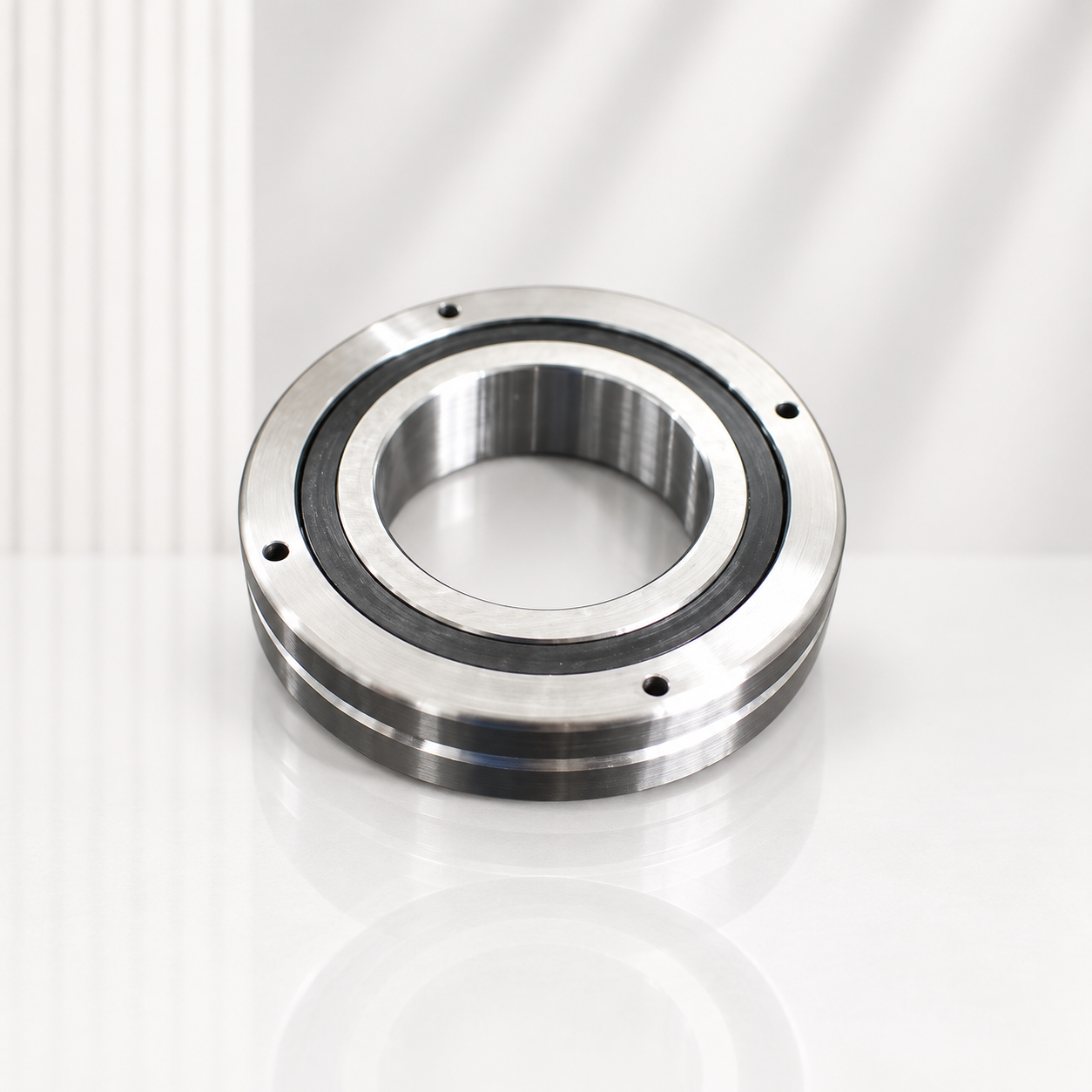

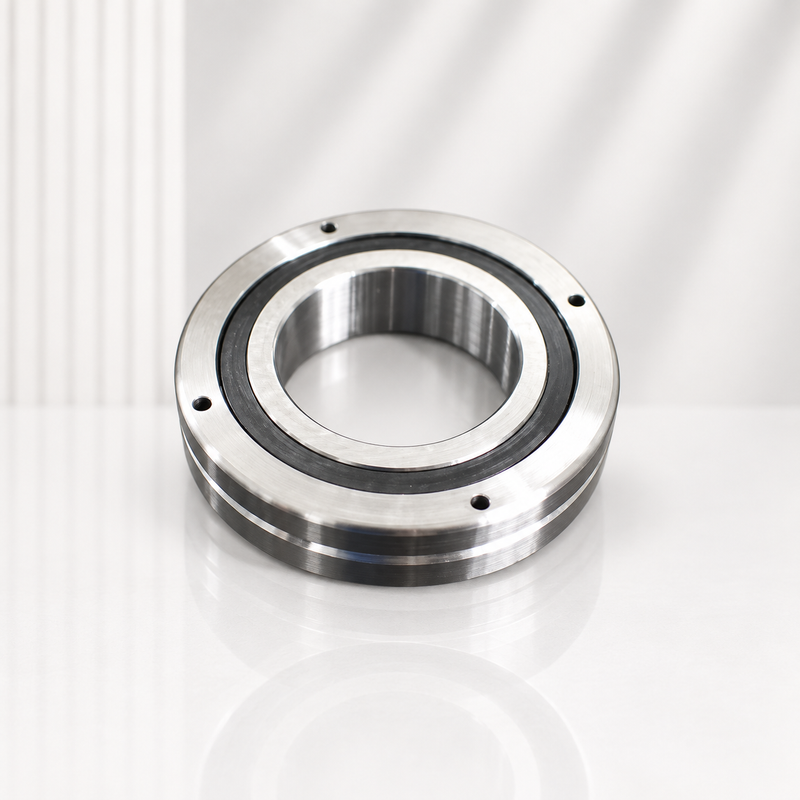

RB2008 Crossed Roller Bearing

BWK RB2008 crossed roller bearing, 20 mm bore x 36 mm outside diameter x 8 mm width.
Availability:
Quantity:
Inquire Add to Basket

  • RB2008

  • BWK

  • BWK-RB2008

DESCRIPTION

Product Overview

BWK RB2008 is a crossed roller bearing designed for reliable load support and stable operation. It is suitable for robot joints, precision rotary tables, measuring instruments and compact rotary units.

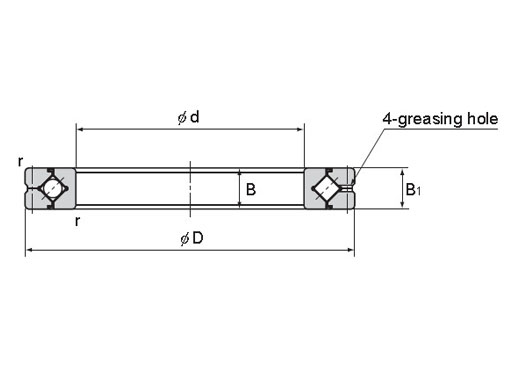

RB-cross-roller-bearing-structure

Technical Data

Model RB2008
Bore diameter (d) 20 mm
Outside diameter (D) 36 mm
Width (B) 8 mm
Dynamic radial load rating (Cr) 3.23 kN
Static radial load rating (Cor) 3.10 kN
Mass 0.04 kg

Features and Applications

Split outer ring with an integrated inner ring. Supports radial, axial and moment loads with compact dimensions and stable rotation.

Typical applications include robot joints, precision rotary tables, measuring instruments and compact rotary units. For quotation and selection support, please provide the model, quantity, operating speed, load direction and working environment.
