NJ 213 ECP
BWK
BWK-NJ-213-ECP

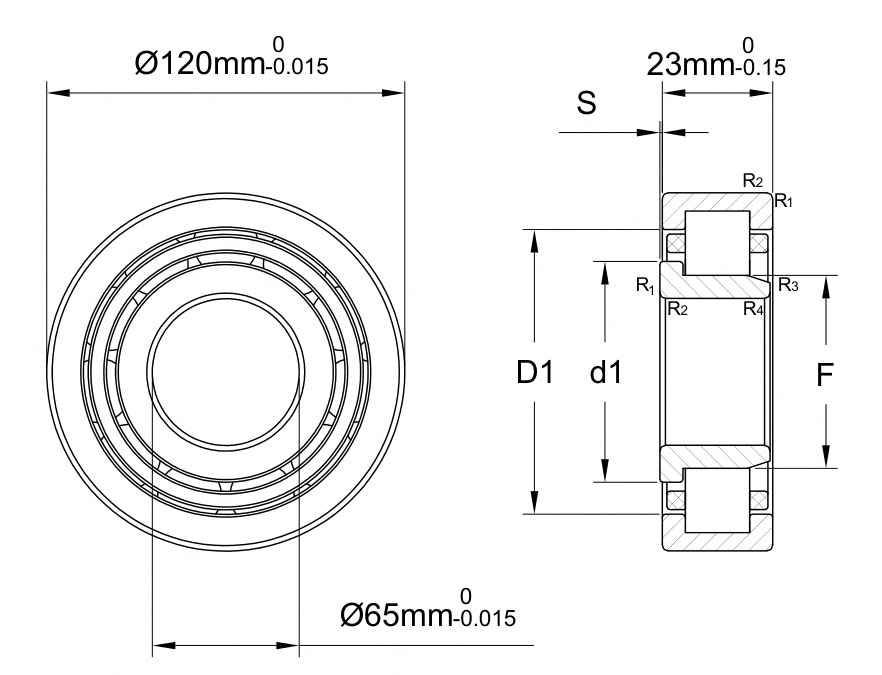

NJ 213 ECP is a nj cylindrical roller bearing with a 65 mm bore, 120 mm outside diameter and 23 mm width. Designed for high radial loads. The NJ arrangement has two outer-ring flanges and one inner-ring flange, providing axial location in one direction.
| Model | NJ 213 ECP |
| Product Type | NJ Cylindrical Roller Bearing |
| Structure | Single row cylindrical rollers with NJ flange arrangement |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| Seal Type | Open |
| Inner Ring Type | With Inner Ring |
| For Load Direction | Combined |
| Construction | Single Row |
| Bore Dia | 65 mm |
| Bore Dia Tolerance | -0.15mm to 0 |
| Outer Dia | 120 mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Width | 23 mm |
| Width Tolerance | -0.15mm to 0 |
| Shoulder Dia Of Outer Ring | 103.2 mm |
| Shoulder Dia Of Inner Ring | 84.4 mm |
| Permissible Axial Displacement(max.) | 1.4 mm |
| Raceway Diameter Of Inner Ring | 78.5 mm |
| Chamfer Dimension r1,2(min.) | 1.5 mm |
| Chamfer Dimension r3,4(min.) | 1.5 mm |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | PA66 cage, roller centred |
| Dynamic Radial Load | 27450 lbf |
| Static Radial Load | 26550 lbf |
| Max Speed (X1000 rpm) | 7 |
| Temperature Range | -30° to 110 °C |
| Lubrication | Grease, Oil |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 1.06 kg |
Gearboxes, industrial drives and general rotating machinery.
Check the required axial locating direction and available thermal expansion. Align separable components carefully and verify the lubrication supply.
BWK provides reliable bearing solutions for industrial and agricultural applications, supported by stable supply, strict quality control and flexible OEM & ODM services.
