NJ 212 ECP
BWK
BWK-NJ-212-ECP

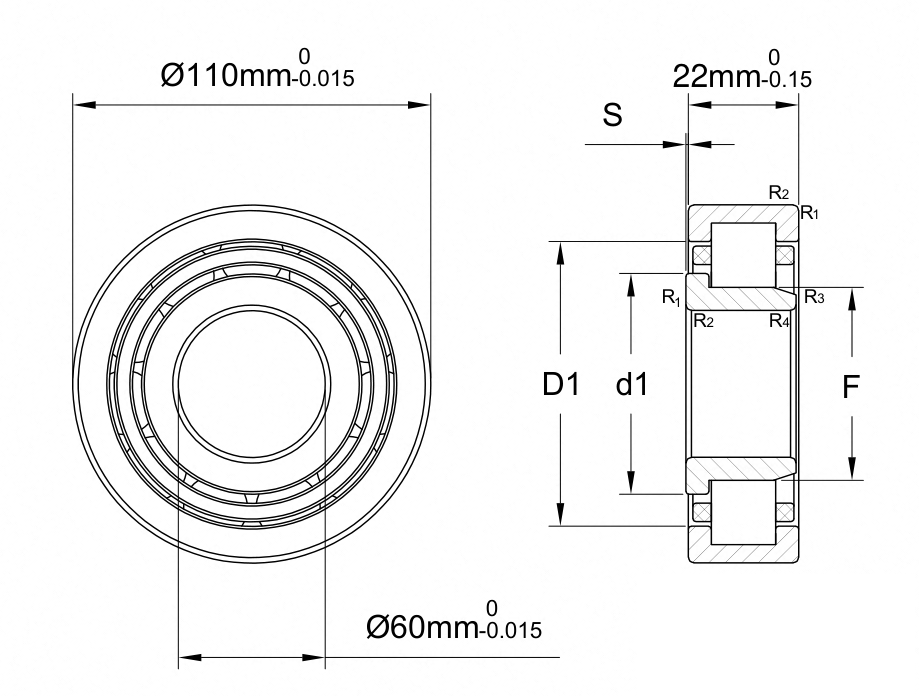

NJ 212 ECP is a nj cylindrical roller bearing with a 60 mm bore, 110 mm outside diameter and 22 mm width. Designed for high radial loads. The NJ arrangement has two outer-ring flanges and one inner-ring flange, providing axial location in one direction.
| Model | NJ 212 ECP |
| Product Type | NJ Cylindrical Roller Bearing |
| Structure | Single row cylindrical rollers with NJ flange arrangement |
| System of Measurement | Metric |
| Roller Bearing Type | Cylindrical |
| Seal Type | Open |
| Inner Ring Type | With Inner Ring |
| For Load Direction | Combined |
| Construction | Single Row |
| Bore Dia | 60 mm |
| Bore Dia Tolerance | -0.15mm to 0 |
| Outer Dia | 110 mm |
| Outer Dia Tolerance | -0.015mm to 0 |
| Width | 22 mm |
| Width Tolerance | -0.15mm to 0 |
| Shoulder Dia Of Outer Ring | 95.1 mm |
| Shoulder Dia Of Inner Ring | 77.5 mm |
| Permissible Axial Displacement(max.) | 1.4 mm |
| Raceway Diameter Of Inner Ring | 72 mm |
| Chamfer Dimension r1,2(min.) | 1.5 mm |
| Chamfer Dimension r3,4(min.) | 1.5 mm |
| Ring Material | Chrome Steel |
| Roller Material | Chrome Steel |
| Cage Material | PA66 cage, roller centred |
| Dynamic Radial Load | 24300 lbf |
| Static Radial Load | 22950 lbf |
| Max Speed (X1000 rpm) | 8 |
| Temperature Range | -30° to 110 °C |
| Lubrication | Grease, Oil |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.82 kg |
Gearboxes, industrial drives and general rotating machinery.
Check the required axial locating direction and available thermal expansion. Align separable components carefully and verify the lubrication supply.
