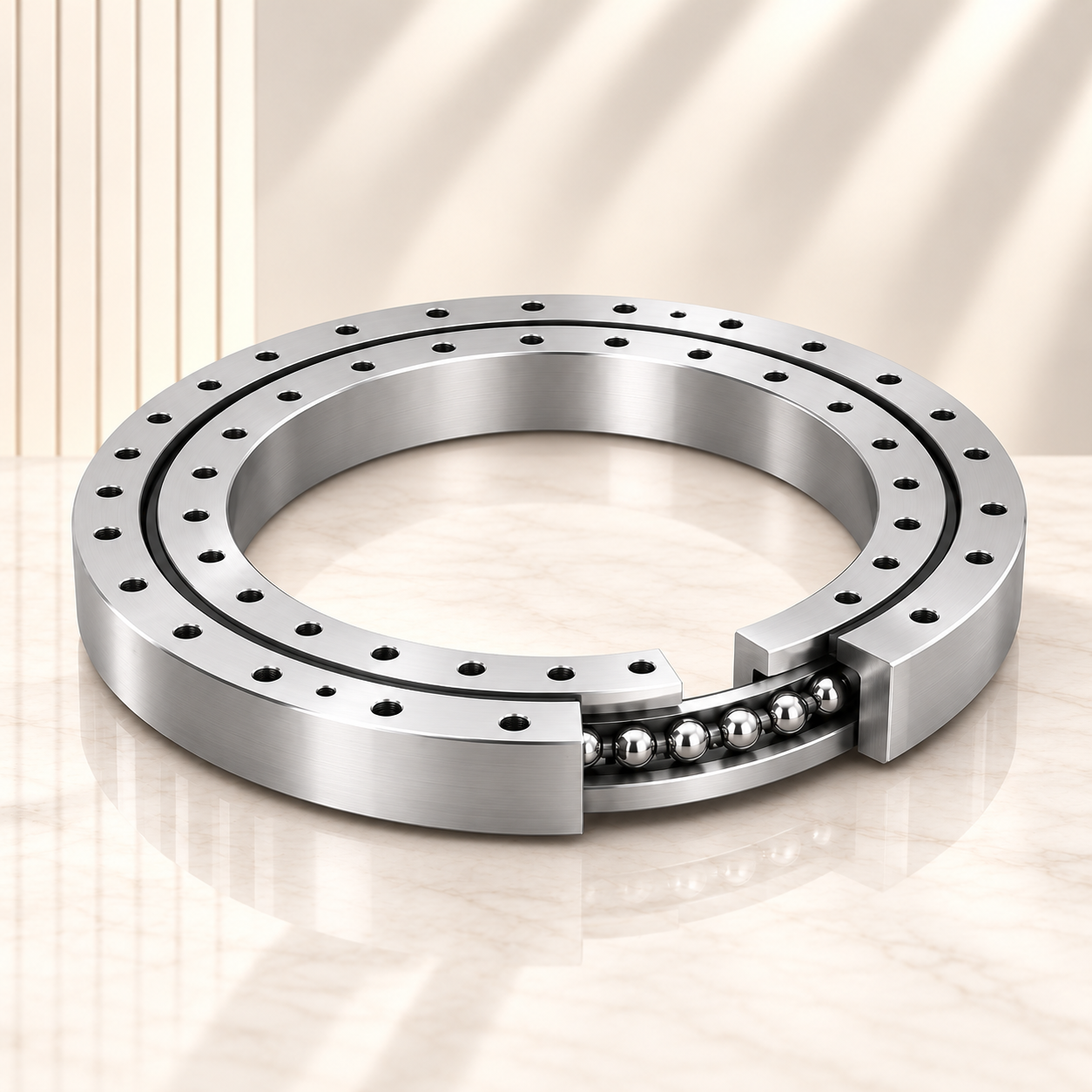

MTO-265 Four Point Contact Ball Slewing Bearing

MTO-265 is a four point contact ball slewing bearing with a 10.433 in bore, 16.535 in outside diameter and 1.968 in overall assembly height. Mounting holes secure both rings to the mating structures. The gearless configuration requires a separate drive arrangement.
Availability:
Quantity:
Inquire Add to Basket

  • MTO-265

  • BWK

  • BWK-MTO-265

DESCRIPTION

Product Overview

MTO-265 is a four point contact ball slewing bearing with a 10.433 in bore, 16.535 in outside diameter and 1.968 in overall assembly height. Mounting holes secure both rings to the mating structures. The gearless configuration requires a separate drive arrangement.

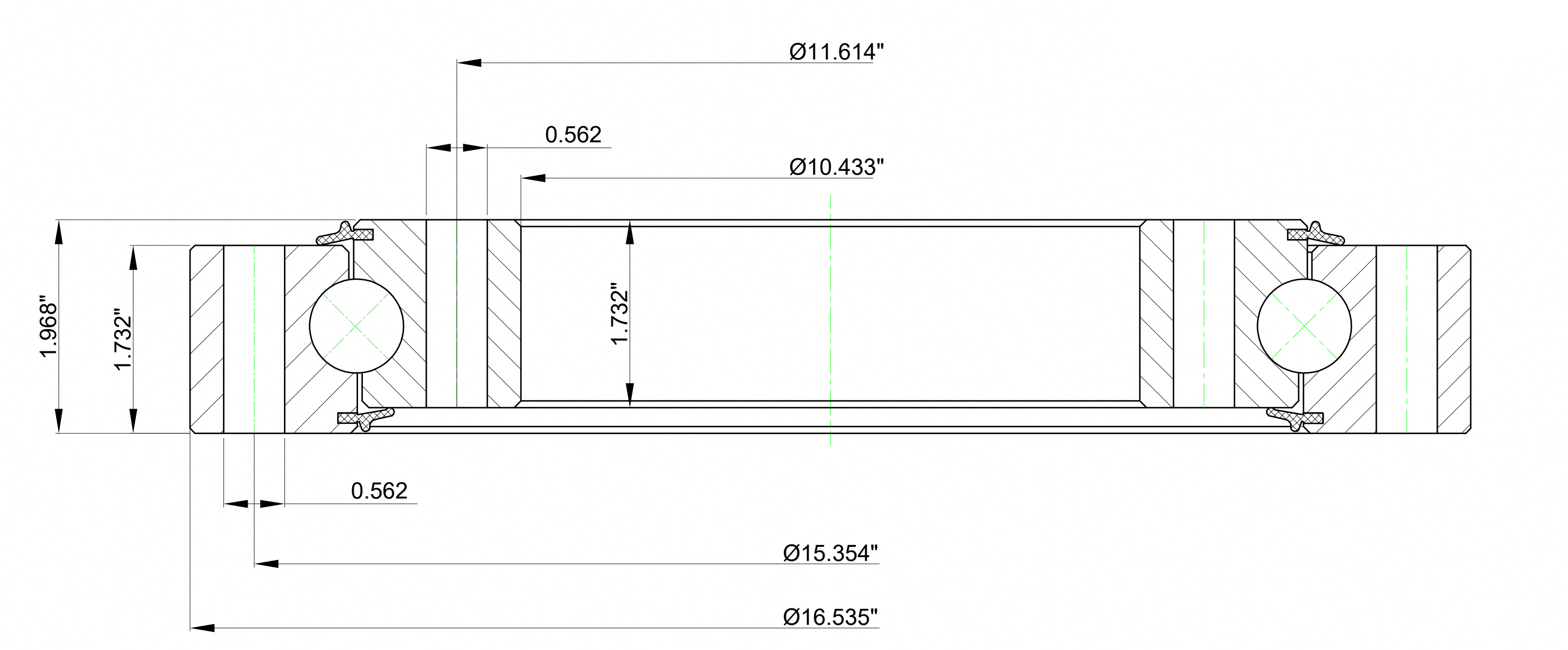

MTO-265

Technical Specifications

Model MTO-265
Product Type Four Point Contact Ball Slewing Bearing
Structure Single row ball, four-point contact, without gear
Dimension Units Inch (dimensions shown)
Series MT Series
Gear Without Gear
Type Ball
Bearing Type Standard
Inside Diameter Of Inner Ring 10.433 in
Outside Diameter Of Outer Ring 16.535 in
Height Of Overall Bearing Assembly 1.968 in
Height Of Inner Ring 1.732 in
Height Of Outer Ring 1.732 in
Bolt Circle In Inner Ring 11.614 in
For Load Direction Four Point Contact
Bolt Circle In Outer Ring 15.354 in
Size Holes In Inner Ring 0.562 in
Size Holes In Outer Ring 0.562 in
Number Holes In Inner Ring 24
Number Holes In Outer Ring 18
Moment Load Rating 62000 ft-lbf
Ring Material Options 42CrMo or 50Mn or 440C; confirm supplied grade when ordering
Ball Material Chrome Steel
Cage Material Nylon or 300 Series Stainless Steel
Seal Material NBR
RoHS Compliant
Weight 54 lbs

Applications

Rotary platforms, handling equipment and industrial positioning machinery.

Selection and Installation

Assess radial load, axial load and overturning moment together with speed, duty cycle and mounting stiffness. Confirm bolt circles, hole sizes, seal configuration, material grade and lubrication requirements before ordering. Mount on flat, adequately stiff surfaces and follow the specified bolt-tightening procedure.
