MTO-210
BWK
BWK-MTO-210

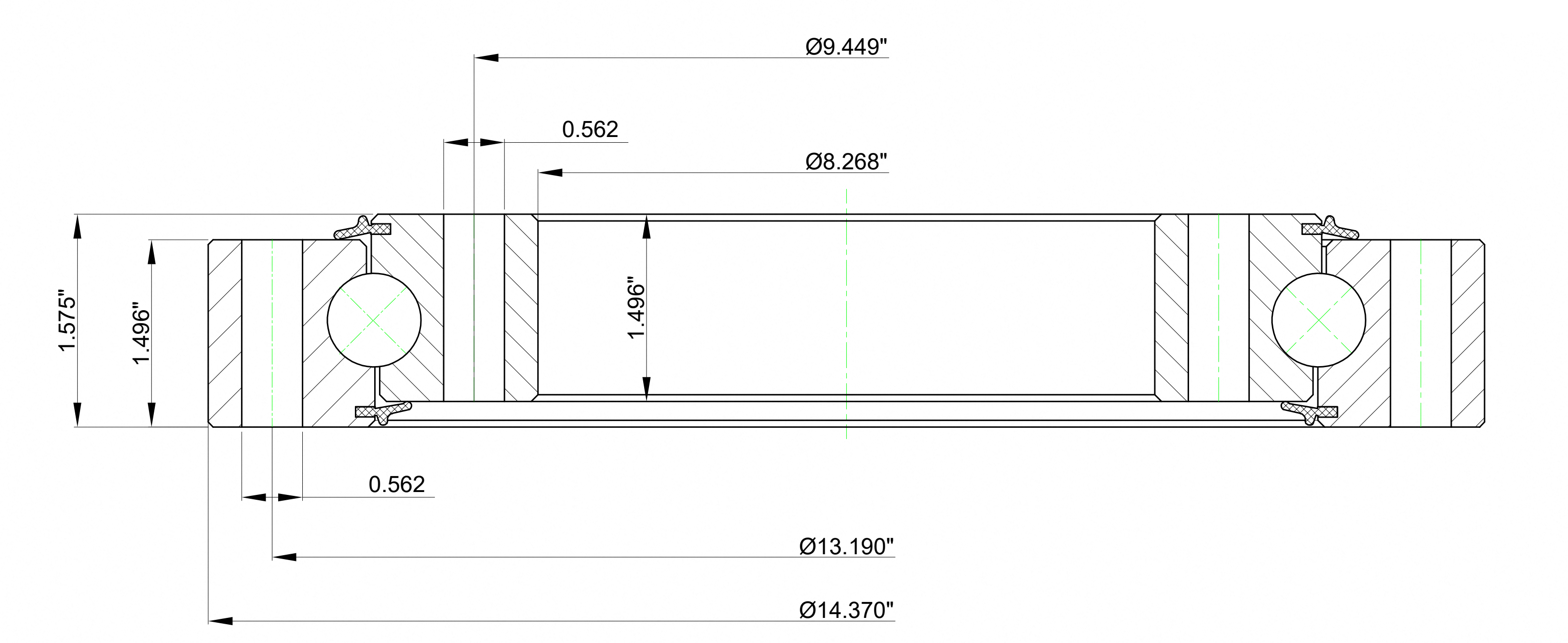

MTO-210 is a four point contact ball slewing bearing with a 8.268 in bore, 14.37 in outside diameter and 1.575 in overall assembly height. Mounting holes secure both rings to the mating structures. The gearless configuration requires a separate drive arrangement.
| Model | MTO-210 |
| Product Type | Four Point Contact Ball Slewing Bearing |
| Structure | Single row ball, four-point contact, without gear |
| Dimension Units | Inch (dimensions shown) |
| Series | MT Series |
| Gear | Without Gear |
| Type | Ball |
| Bearing Type | Standard |
| Inside Diameter Of Inner Ring | 8.268 in |
| Outside Diameter Of Outer Ring | 14.37 in |
| Height Of Overall Bearing Assembly | 1.575 in |
| Height Of Inner Ring | 1.496 in |
| Height Of Outer Ring | 1.496 in |
| Bolt Circle In Inner Ring | 9.449 in |
| For Load Direction | Four Point Contact |
| Bolt Circle In Outer Ring | 13.19 in |
| Size Holes In Inner Ring | 0.562 in |
| Size Holes In Outer Ring | 0.562 in |
| Number Holes In Inner Ring | 20 |
| Number Holes In Outer Ring | 16 |
| Moment Load Rating | 44500 ft-lbf |
| Ring Material Options | 42CrMo or 50Mn or 440C; confirm supplied grade when ordering |
| Ball Material | Chrome Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 38 lbs |
Rotary platforms, handling equipment and industrial positioning machinery.
Assess radial load, axial load and overturning moment together with speed, duty cycle and mounting stiffness. Confirm bolt circles, hole sizes, seal configuration, material grade and lubrication requirements before ordering. Mount on flat, adequately stiff surfaces and follow the specified bolt-tightening procedure.
