MTE-590
BWK
BWK-MTE-590

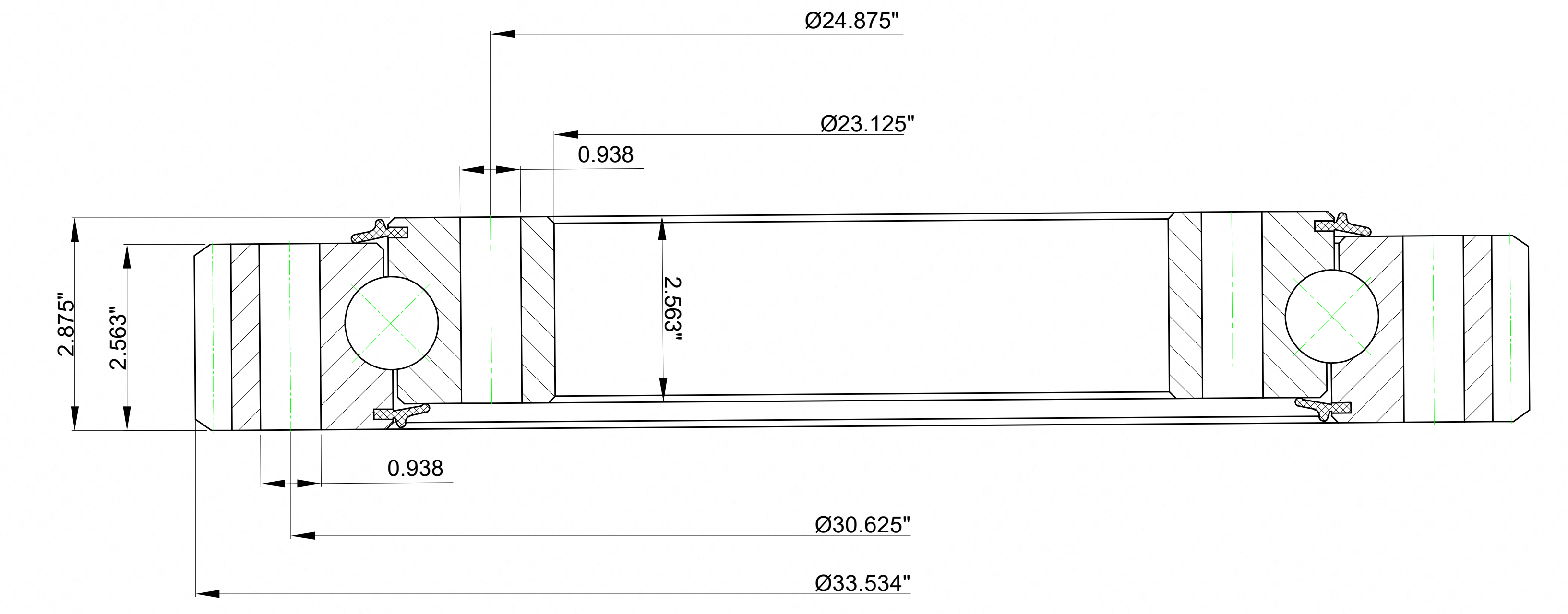

MTE-590 is a external gear four point contact slewing bearing with a 23.125 in bore, 33.534 in outside diameter and 2.875 in overall assembly height. The external gear engages a mating pinion. The raceway supports combined loads and overturning moment in a bolted rotary assembly.
| Model | MTE-590 |
| Product Type | External Gear Four Point Contact Slewing Bearing |
| Structure | Single-row ball ring with external gear |
| Dimension Units | Inch (dimensions shown) |
| Series | MT Series |
| Gear | External Gear |
| Type | Ball |
| Bearing Type | Standard |
| Inside Diameter Of Inner Ring | 23.125 in |
| Outside Diameter Of Outer Ring | 33.534 in |
| Height Of Overall Bearing Assembly | 2.875 in |
| Height Of Inner Ring | 2.563 in |
| Bolt Circle In Inner Ring | 24.875 in |
| For Load Direction | Four Point Contact |
| Bolt Circle In Outer Ring | 30.625 in |
| Size Holes In Inner Ring | 0.938 in |
| Tooth | SD |
| Size Holes In Outer Ring | 0.938 in |
| Face Width Of Gear Teeth | 2.563 in |
| Number Holes In Inner Ring | 24 |
| Number Holes In Outer Ring | 18 |
| Diametral Pitch | 3 |
| Pitch Diameter Of Gear | 33 in |
| Number Of Gear Teeth | 99 |
| Moment Load Rating | 338700 ft-lbf |
| Max Gear Tooth Load Fz | 17290 lbs |
| Ring Material Options | 42CrMo or 50Mn or 440C; confirm supplied grade when ordering |
| Ball Material | Chrome Steel |
| Cage Material | Nylon or 300 Series Stainless Steel |
| Seal Material | NBR |
| RoHS | Compliant |
| Weight | 283 lbs |
Driven rotary tables, handling machinery and positioning platforms.
Assess axial load, radial load and overturning moment together with speed, duty cycle and mounting stiffness. Confirm the bolt circles, hole sizes, material grade, seal configuration and lubrication requirements before ordering. Use flat, adequately stiff mounting surfaces and the specified bolt-tightening procedure. Match the gear module or diametral pitch, tooth count and gear face width to the pinion, and check the permissible tooth load.
