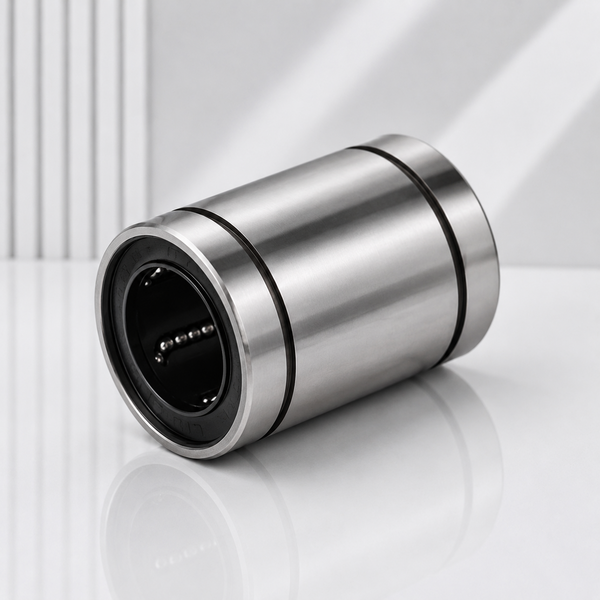

LME Series Linear Motion Ball Bearings

LME series linear motion ball bearings are European metric linear bearings designed for smooth movement along hardened precision shafts. Their standardized outside dimensions suit European-style housings and linear-motion assemblies.

Recirculating steel balls reduce friction while the cylindrical outer sleeve provides a compact, replaceable guiding element.

Key Advantages

1.European metric dimensional series

2.Low-friction and smooth linear movement

3.Standardized dimensions for convenient replacement

4.Standard, adjustable and open-type designs available

5.Sealed and nickel-plated options available according to model

Models & Dimensions

Model	Shaft Diameter d (mm)	Outer Diameter D (mm)	Length L (mm)
LME3	3	7	10
LME4	4	8	12
LME5UU	5	12	22
LME8UU	8	16	25
LME10UU	10	19	29
LME12UU	12	22	32
LME16UU	16	26	36
LME20UU	20	32	45
LME25UU	25	40	58
LME30UU	30	47	68
LME40UU	40	62	80
LME50UU	50	75	100
LME60UU	60	90	125
LME80UU	80	120	165

Adjustable LME...UU-AJ and open LME...UU-OP versions are available for selected sizes. Final dimensions should be confirmed according to the complete model.

Applications

• European automation equipment

• Packaging and printing machinery

• Machine tools and measuring systems

• Industrial positioning equipment

• Material-handling and assembly lines

Packaging & Inquiry

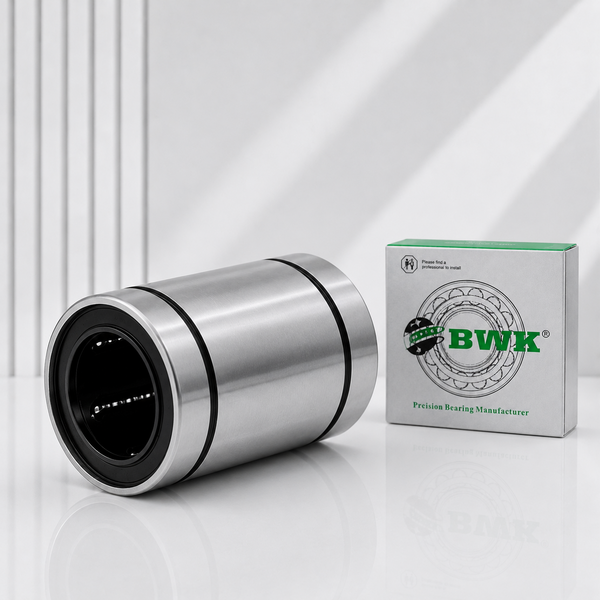

Each LME linear bearing is protected against moisture, contamination and transport damage. Individual BWK boxes, clear model labels and reinforced export cartons are available.

For model confirmation or quotation, send the complete model, shaft diameter, design type, quantity or application requirements.
