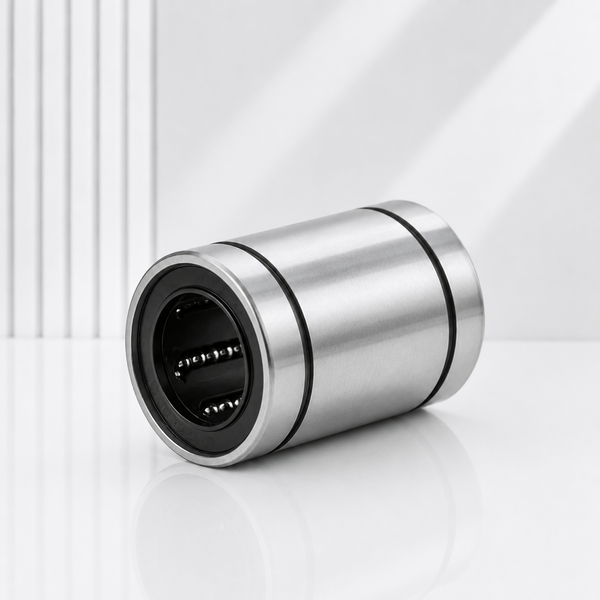

LM series linear motion ball bearings are designed for linear movement on hardened precision shafts. Recirculating steel balls reduce friction and support smooth, repeatable travel in compact motion systems.
Metric LM series bearings are widely used in automation equipment, machine tools, packaging machinery and general industrial linear-motion assemblies.
Models & Dimensions
| Model | Shaft Diameter d (mm) | Outer Diameter D (mm) | Length L (mm) |
|---|---|---|---|
| LM3 | 3 | 7 | 10 |
| LM4 | 4 | 8 | 12 |
| LM5UU | 5 | 10 | 15 |
| LM6UU | 6 | 12 | 19 |
| LM8SUU | 8 | 15 | 17 |
| LM8UU | 8 | 15 | 24 |
| LM10UU | 10 | 19 | 29 |
| LM12UU | 12 | 21 | 30 |
| LM13UU | 13 | 23 | 32 |
| LM16UU | 16 | 28 | 37 |
| LM20UU | 20 | 32 | 42 |
| LM25UU | 25 | 40 | 59 |
| LM30UU | 30 | 45 | 64 |
| LM35UU | 35 | 52 | 70 |
| LM40UU | 40 | 60 | 80 |
| LM50UU | 50 | 80 | 100 |
| LM60UU | 60 | 90 | 110 |
 | Additional large sizes, adjustable LM...UU-AJ and open LM...UU-OP models are available. Final dimensions should be confirmed according to the required model. |
Applications
Automation and robotic equipment
Packaging and printing machinery
Machine tools and measuring equipment
3D printers and positioning systems
Conveyors and material-handling equipment
Packaging & Inquiry

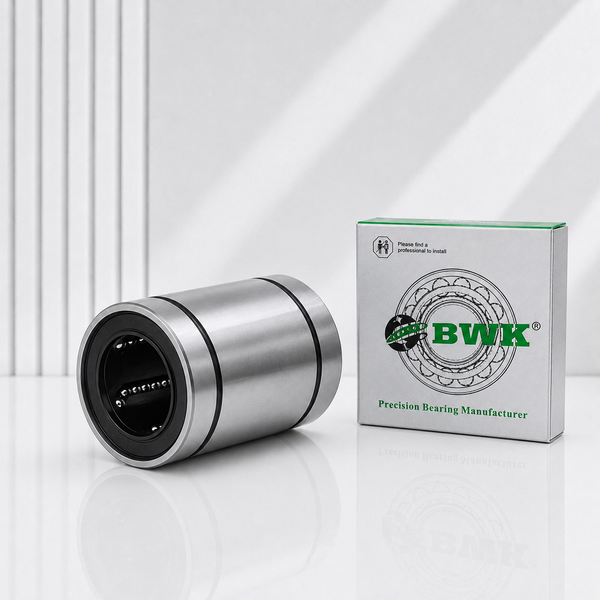

Each linear bearing is protected against moisture, contamination and transport damage. Individual BWK boxes, clear model labels and reinforced export cartons are available.
For model confirmation or quotation, send the model, shaft diameter, design type, quantity or application requirements.
WhatsApp: +86 188 6688 2299
Email: admin@bwkbearing.com
Please mention "BWK Website" when contacting us.
BWK provides reliable bearing solutions for industrial and agricultural applications, supported by stable supply, strict quality control and flexible OEM & ODM services.
