BB30025
BWK
BWK-BB30025

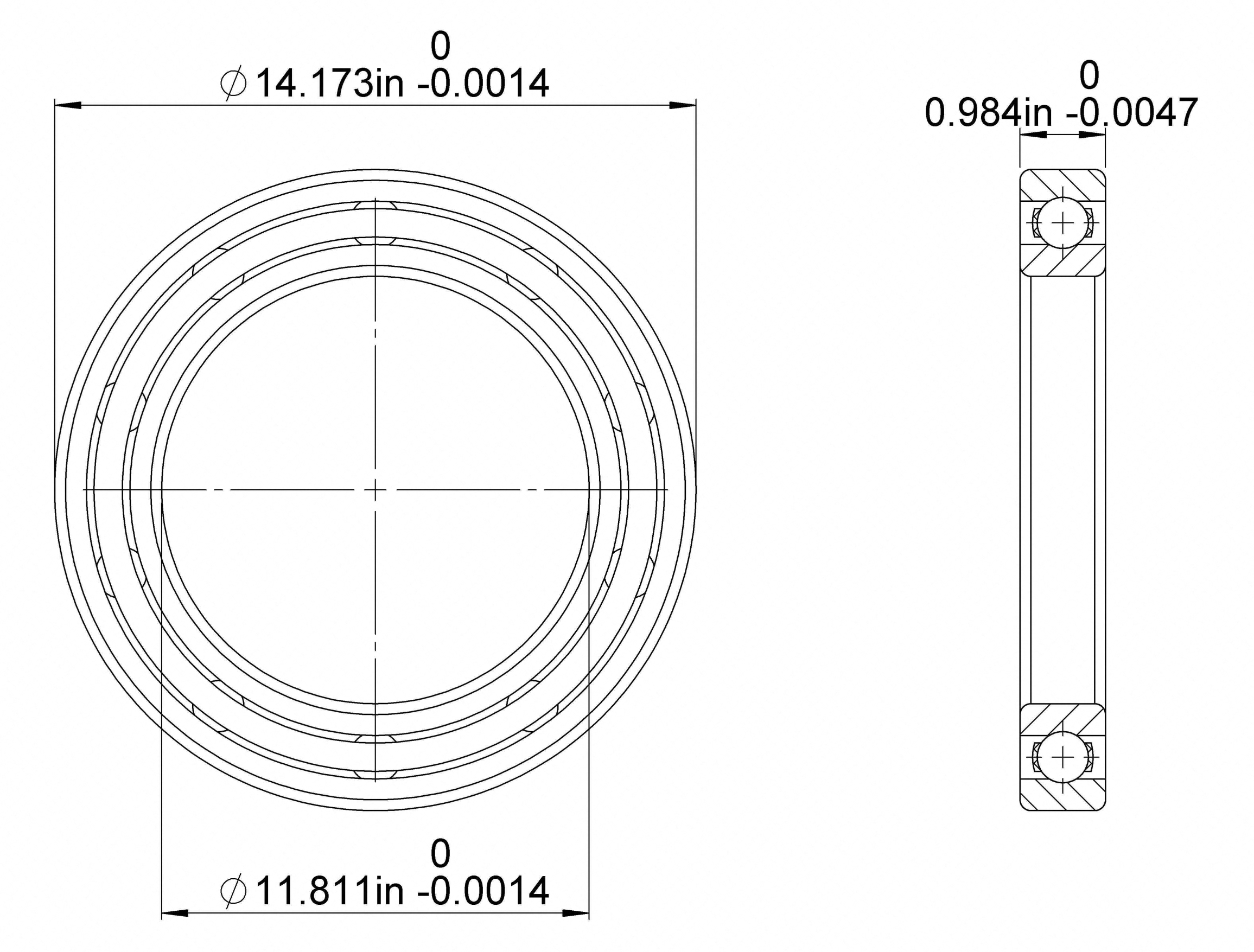

BB30025 is a four point contact ball slewing bearing with a 11.811 in bore, 14.173 in outside diameter and 0.984 in overall assembly height. The compact gearless ring supports radial load, axial load and overturning moment in a small cross-section.
| Model | BB30025 |
| Product Type | Four Point Contact Ball Slewing Bearing |
| Structure | Single row ball, four-point contact, without gear |
| Dimension Units | Inch (dimensions shown) |
| Series | BB Series |
| Gear | Without Gear |
| Type | Ball |
| Bearing Type | Standard |
| Inside Diameter Of Inner Ring | 11.811 in |
| Outside Diameter Of Outer Ring | 14.173 in |
| Height Of Overall Bearing Assembly | 0.984 in |
| For Load Direction | Four Point Contact |
| Seal Type | Open |
| Bore Dia Tolerance | -0.0014 in |
| Outer Dia Tolerance | -0.0014 in |
| Width Tolerance | -0.0047 in |
| Dynamic Radial Load | 13586 lbs |
| Dynamic Thrust | 21651 lbs |
| Radial Clearance | 0.0028 in |
| Radial and Axial Runout Inner | 0.0014 in |
| Radial and Axial Runout Outer | 0.0014 in |
| Moment Load Rating | 7482 ft-lbs |
| Ring Material Options | 42CrMo or 50Mn or 440C; confirm supplied grade when ordering |
| Weight | 4.99 kg |
Compact turntables, rotary positioning systems and automation equipment.
Assess radial load, axial load and overturning moment together with speed, duty cycle and mounting stiffness. Confirm bolt circles, hole sizes, seal configuration, material grade and lubrication requirements before ordering. Mount on flat, adequately stiff surfaces and follow the specified bolt-tightening procedure. Obtain a confirmed installation drawing for the mounting dimensions before manufacture or installation.
