30303 Single Row Tapered Roller Bearing

BWK 30303 single row tapered roller bearing, 17 mm bore x 47 mm outside diameter x 15.25 mm width.
Availability:
Quantity:
  • 30303

  • BWK

  • BWK-30303

DESCRIPTION

Product Overview

BWK 30303 is a single row tapered roller bearing designed for reliable load support and stable operation. It is suitable for automotive hubs, gearboxes, machine tools and industrial transmission systems.

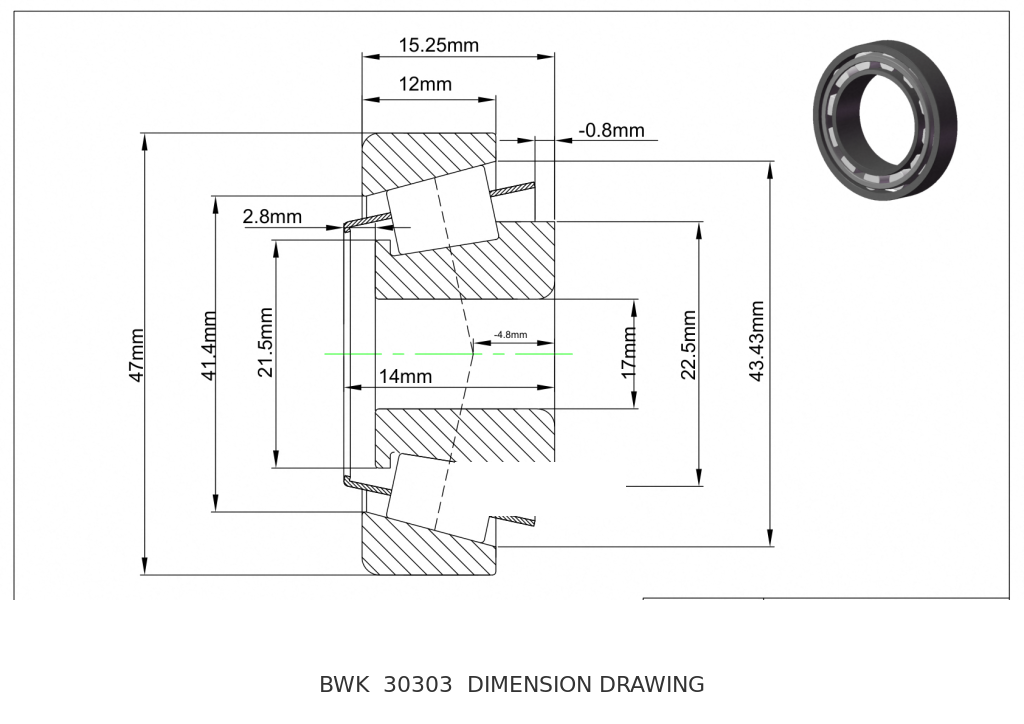

30303_Dimension_Drawing

Technical Data

Model 30303
Bore diameter 17 mm
Outside diameter 47 mm
Width 15.25 mm

Features and Applications

Metric single-row design for combined radial and axial loads, with separable cup and cone assembly.

Typical applications include automotive hubs, gearboxes, machine tools and industrial transmission systems. For quotation and selection support, please provide the model, quantity, operating speed, load direction and working environment.
