29414 E
BWK
BWK-29414-E

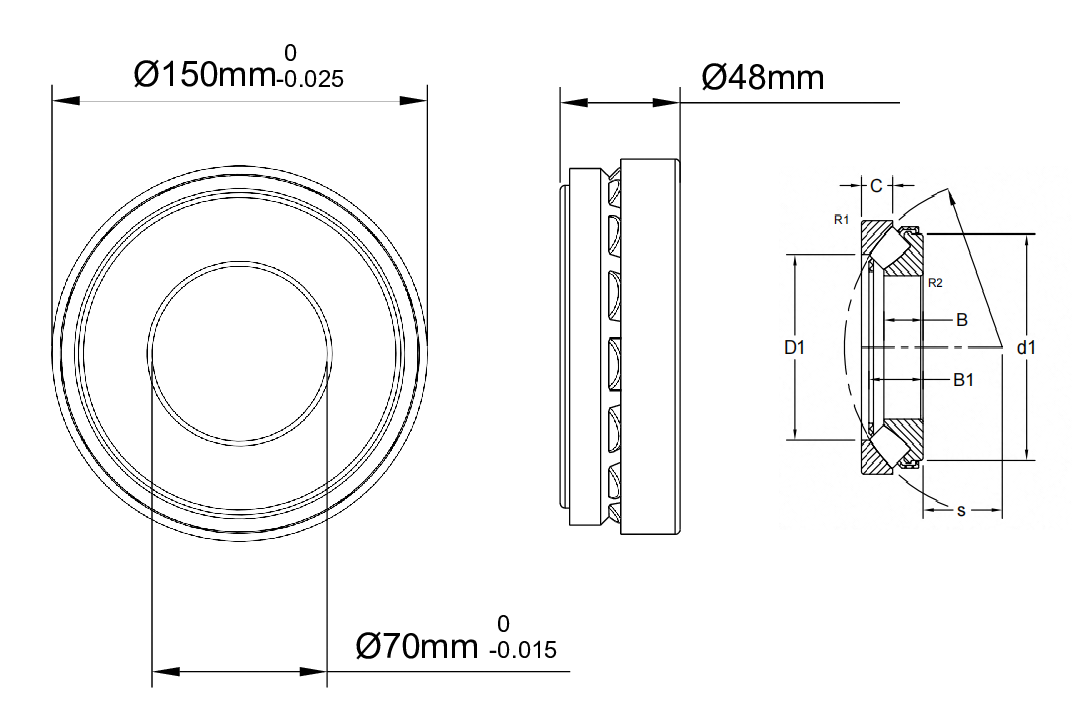

29414 E is a spherical roller thrust bearing for 70 mm bore, 150 mm outer diameter and 48 mm width. The spherical roller arrangement is designed for heavy axial loads and can accommodate misalignment within its operating limits.
| Model | 29414 E |
| Product Type | Spherical Roller Thrust Bearing |
| Structure | Single row spherical roller thrust bearing with separable shaft and housing washers |
| Roller Bearing Type | Spherical |
| Bearing Type | Roller |
| For Load Direction | Axial |
| Construction | Single Row |
| Bore Dia | 70 mm |
| Outer Dia | 150 mm |
| Width | 48 mm |
| Outside Diameter(d1) | 129 mm |
| Shoulder Diameter Outer Ring (D1) | 99 mm |
| Height Shaft Washer Cage(B1) | 41 mm |
| Height Housing Washer(C) | 23.8 mm |
| Distance From Shaft Washer End Side Face To Pressure Point(s) | 44.8 mm |
| Chamfer Dimension Shaft Washer(r1,2) | 2 mm |
| Roller Material | Steel |
| Cage Material | Sheet Metal |
| Dynamic Thrust Load | 520 kN |
| Static Thrust Load | 1250 kN |
| Temperature Range | -30 to 100 °C |
| Lubrication | Required |
| Weight | 3.9 kg |
| Limiting Speed | 4300 rpm |
Heavy-duty vertical shafts, industrial drives and axial-load support systems.
Check axial load, washer support, lubrication and operating speed before installation.
