29413 E
BWK
BWK-29413-E

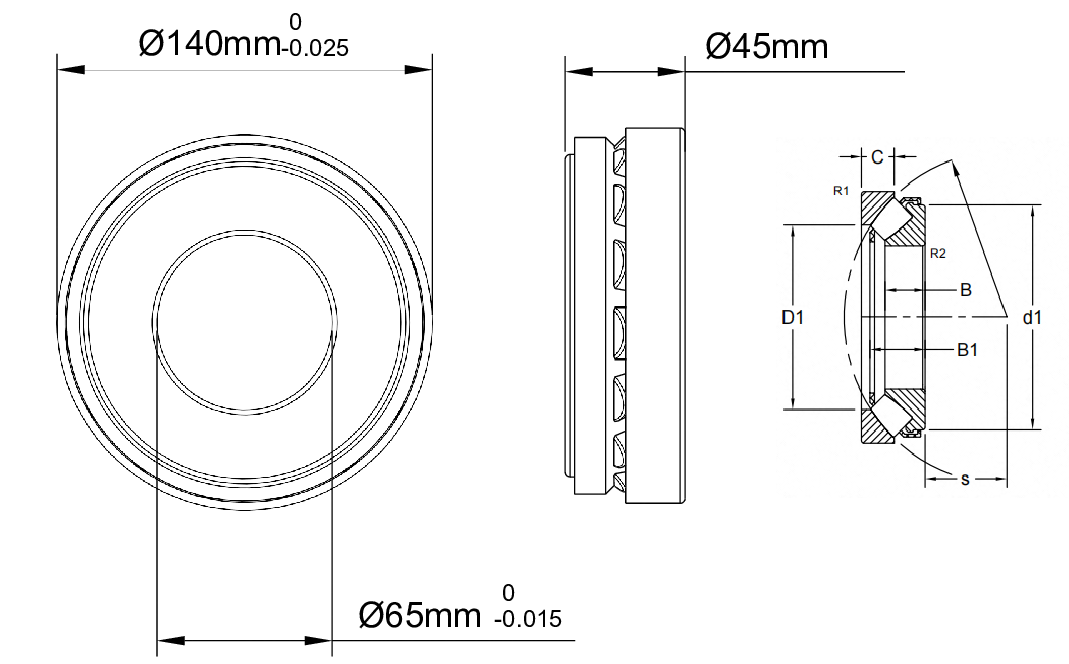

29413 E is a spherical roller thrust bearing for 65 mm bore, 140 mm outer diameter and 45 mm width. The spherical roller arrangement is designed for heavy axial loads and can accommodate misalignment within its operating limits.
| Model | 29413 E |
| Product Type | Spherical Roller Thrust Bearing |
| Structure | Single row spherical roller thrust bearing with separable shaft and housing washers |
| Roller Bearing Type | Spherical |
| Bearing Type | Roller |
| For Load Direction | Axial |
| Construction | Single Row |
| Bore Dia | 65 mm |
| Outer Dia | 140 mm |
| Width | 45 mm |
| Outside Diameter(d1) | 120 mm |
| Shoulder Diameter Outer Ring (D1) | 91.5 mm |
| Height Shaft Washer Cage(B1) | 39.8 mm |
| Height Housing Washer(C) | 22 mm |
| Distance From Shaft Washer End Side Face To Pressure Point(s) | 42 mm |
| Chamfer Dimension Shaft Washer(r1,2) | 2 mm |
| Roller Material | Steel |
| Cage Material | Sheet Metal |
| Dynamic Thrust Load | 455 kN |
| Static Thrust Load | 1080 kN |
| Temperature Range | -30 to 100 °C |
| Lubrication | Required |
| Weight | 3.2 kg |
| Limiting Speed | 4800 rpm |
Heavy-duty vertical shafts, industrial drives and axial-load support systems.
Check axial load, washer support, lubrication and operating speed before installation.
